Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP930-1.50-1%RES 1.5 OHM 1% 30W TO220 |
482 |
|
Таблицы данных |
Kool-Pak®MP900 | Tube | Active | 1.5 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|

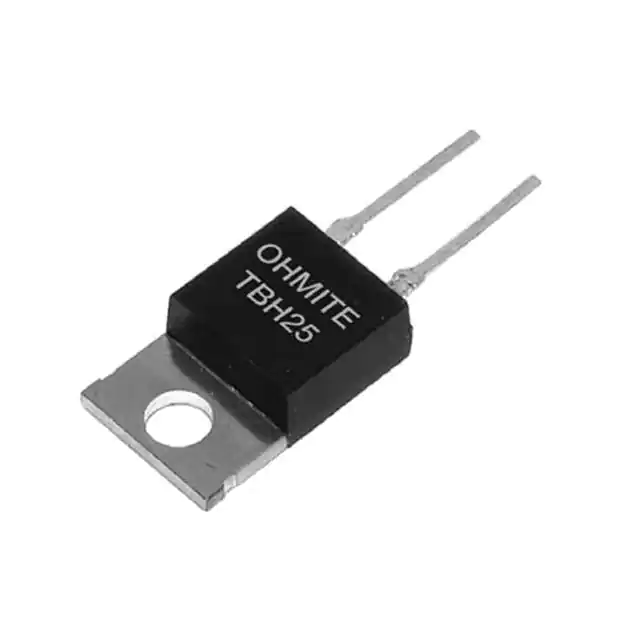

TBH25P10R0JERES 10 OHM 5% 25W TO220 |
1,059 |
|
Таблицы данных |
TBH | Bulk | Active | 10 Ohms | ±5% | 25W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive | ±200ppm/°C | -55°C ~ 150°C | TO-220 | 0.402" L x 0.187" W (10.20mm x 4.75mm) | 0.630" (16.00mm) | 2 | - |
|
LTO050F4R700JTE3RES 4.7 OHM 50W 5% TO220 |
350 |
|
Таблицы данных |
LTO 50 | Tube | Active | 4.7 Ohms | ±5% | 50W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 150°C | TO-220-2 | 0.409" L x 0.126" W (10.40mm x 3.20mm) | 0.799" (20.30mm) | 2 | - |
|
|
LTO050F22R00JTE3RES 22 OHM 50W 5% TO220 |
343 |
|
Таблицы данных |
LTO 50 | Tube | Active | 22 Ohms | ±5% | 50W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 150°C | TO-220-2 | 0.409" L x 0.126" W (10.40mm x 3.20mm) | 0.799" (20.30mm) | 2 | - |
|
|
MP930-0.25-1%RES 0.25 OHM 1% 30W TO220 |
1,570 |
|
Таблицы данных |
Kool-Pak®MP900 | Tube | Active | 250 mOhms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | 0/ +200ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP930-0.15-1%RES 0.15 OHM 1% 30W TO220 |
818 |
|
Таблицы данных |
Kool-Pak®MP900 | Tube | Active | 150 mOhms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | 0/ +200ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
TCH35P10R0JERES 10 OHM 5% 35W TO220 |
3,721 |
|
Таблицы данных |
TCH | Tube | Active | 10 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|

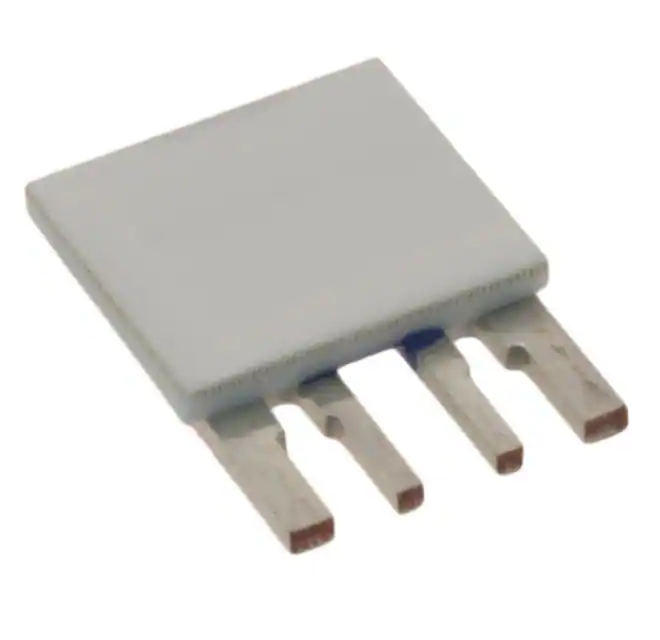

SR10-0.010-1%RES 0.01 OHM 1% 1W SR10 |
4,690 |
|
Таблицы данных |
SR | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 1W | Metal Element | Current Sense, Moisture Resistant, Non-Inductive | 0/ +200ppm/°C | -15°C ~ 105°C | SR10 | 0.365" L x 0.090" W (9.27mm x 2.29mm) | 0.385" (9.78mm) | 4 | - |
|
AP101 R05 JRES 0.05 OHM 5% 100W TO247 |
240 |
|
Таблицы данных |
ARCOL, AP101 | Tray | Active | 50 mOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | - | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
AP101 2K JRES 2K OHM 5% 100W TO247 |
5,869 |
|
Таблицы данных |
ARCOL, AP101 | Tube | Active | 2 kOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|

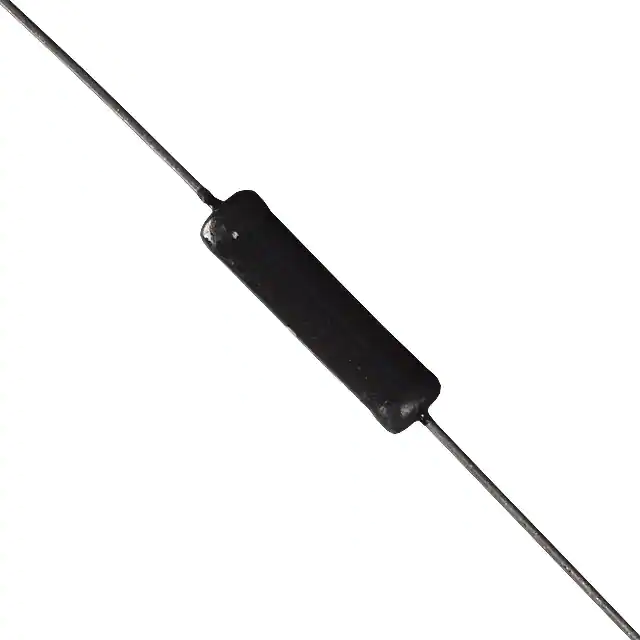

MRA-128R000FE12RES 8 OHM 1% AXIAL |
348 |
|
Таблицы данных |
MRA-12 | Bulk | Active | 8 Ohms | ±1% | 10W | Wirewound | Moisture Resistant, Non-Inductive, Non-Magnetic | ±50ppm/°C | -65°C ~ 250°C | Axial | 0.312" Dia x 1.188" L (7.92mm x 30.18mm) | - | 2 | - |
|
|
13FPR100ERES 0.1 OHM 1% 3W AXIAL |
311 |
|
Таблицы данных |
10 | Bulk | Active | 100 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200" Dia x 0.626" L (5.08mm x 15.90mm) | - | 4 | - |
|
RS01039K00FE73RES 39K OHM 10W 1% WW AXIAL |
1,597 |
|
Таблицы данных |
RS | Tape & Reel (TR) | Active | 39 kOhms | ±1% | 10W | Wirewound | Moisture Resistant | ±20ppm/°C | -65°C ~ 250°C | Axial | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | - | 2 | - |
|
PTF56200K00BZEBRES 200K OHM 1/8W 0.1% AXIAL |
899 |
|
Таблицы данных |
PTF | Tape & Reel (TR) | Active | 200 kOhms | ±0.1% | 0.125W, 1/8W | Metal Film | Moisture Resistant | ±5ppm/°C | -55°C ~ 150°C | Axial | 0.091" Dia x 0.250" L (2.31mm x 6.35mm) | - | 2 | - |
|
|
AP101 1K JRES 1K OHM 5% 100W TO247 |
812 |
|
Таблицы данных |
ARCOL, AP101 | Tube | Active | 1 kOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
AP101 100R JRES 100 OHM 5% 100W TO247 |
1,803 |
|
Таблицы данных |
ARCOL, AP101 | Tube | Active | 100 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
AP101 3R9 JRES 3.9 OHM 5% 100W TO247 |
475 |
|
Таблицы данных |
ARCOL, AP101 | Tube | Active | 3.9 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
MP930-0.020-5%RES 0.02 OHM 5% 30W TO220 |
4,579 |
|
Таблицы данных |
Kool-Pak®MP900 | Tube | Active | 20 mOhms | ±5% | 30W | Thick Film | Moisture Resistant, Non-Inductive | 0/ +300ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP820-100-1%RES 100 OHM 1% 20W TO220 |
2,679 |
|
Таблицы данных |
Kool-Pak®MP800 | Tube | Active | 100 Ohms | ±1% | 20W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.45mm) | 0.590" (14.99mm) | 2 | - |
|
|
MP820-10.0-1%RES 10 OHM 1% 20W TO220 |
1,886 |
|
Таблицы данных |
Kool-Pak®MP800 | Tube | Active | 10 Ohms | ±1% | 20W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.45mm) | 0.590" (14.99mm) | 2 | - |
