БОМ
Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS010R1000FE73RES 0.1 OHM 10W 1% WW AXIAL |
10,901 |
|
Таблицы данных |
RS | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 10W | Wirewound | Moisture Resistant | - | -65°C ~ 250°C | Axial | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | - | 2 | - |
|
|
RS00550K00FE73RES 50K OHM 5W 1% WW AXIAL |
1,153 |
|
Таблицы данных |
RS | Tape & Reel (TR) | Active | 50 kOhms | ±1% | 5W | Wirewound | Moisture Resistant | ±20ppm/°C | -65°C ~ 250°C | Axial | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | - | 2 | - |
|

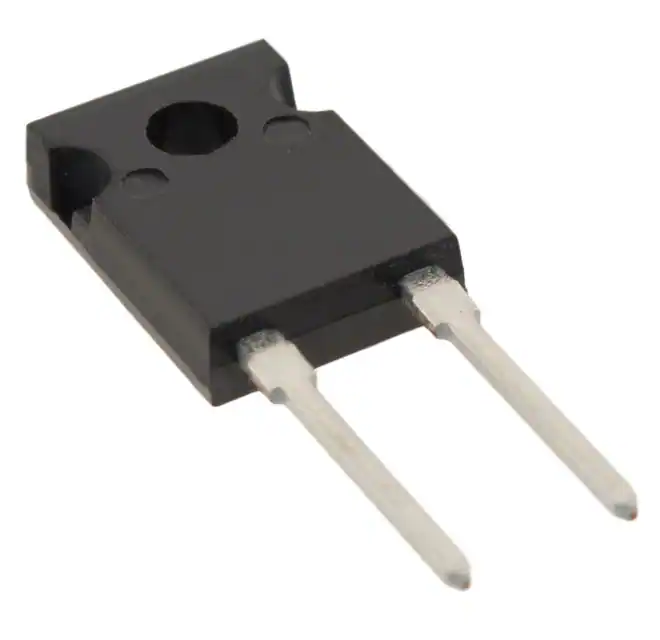

MP930-25.0-1%RES 25 OHM 1% 30W TO220 |
1,120 |
|
Таблицы данных |
Kool-Pak®MP900 | Tube | Active | 25 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
MP930-750-1%RES 750 OHM 1% 30W TO220 |
405 |
|
Таблицы данных |
Kool-Pak®MP900 | Tube | Active | 750 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP915-50.0-1%RES 50 OHM 1% 15W TO126 |
2,633 |
|
Таблицы данных |
Kool-Pak®MP900 | Tube | Active | 50 Ohms | ±1% | 15W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-126 | 0.320" L x 0.110" W (8.12mm x 2.79mm) | 0.450" (11.44mm) | 2 | - |
|
|
MP915-20.0-1%RES 20 OHM 1% 15W TO126 |
2,550 |
|
Таблицы данных |
Kool-Pak®MP900 | Tube | Active | 20 Ohms | ±1% | 15W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-126 | 0.320" L x 0.110" W (8.12mm x 2.79mm) | 0.450" (11.44mm) | 2 | - |
|
|
MP915-10.0-1%RES 10 OHM 1% 15W TO126 |
1,322 |
|
Таблицы данных |
Kool-Pak®MP900 | Tube | Active | 10 Ohms | ±1% | 15W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-126 | 0.320" L x 0.110" W (8.12mm x 2.79mm) | 0.450" (11.44mm) | 2 | - |
|

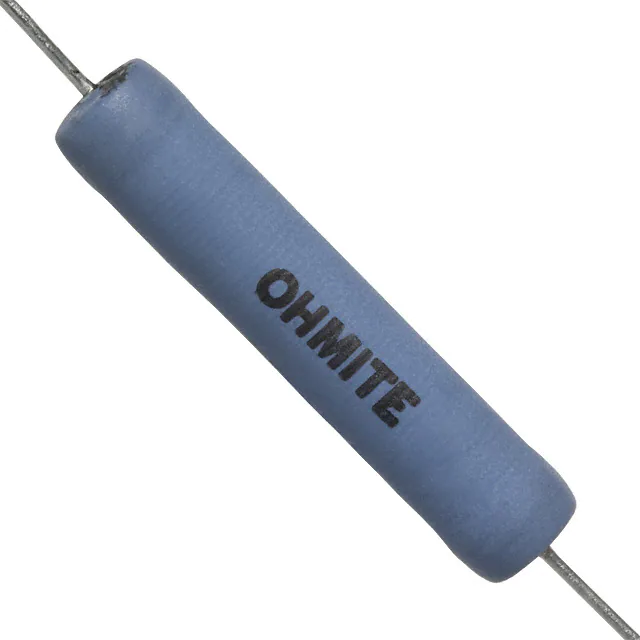

30J15RERES 15 OHM 5% 10W AXIAL |
9,706 |
|
Таблицы данных |
High Energy Wirewound | Bulk | Active | 15 Ohms | ±5% | 10W | Wirewound | - | - | - | Axial | 0.406" Dia x 1.843" L (10.30mm x 46.80mm) | - | 2 | - |
|

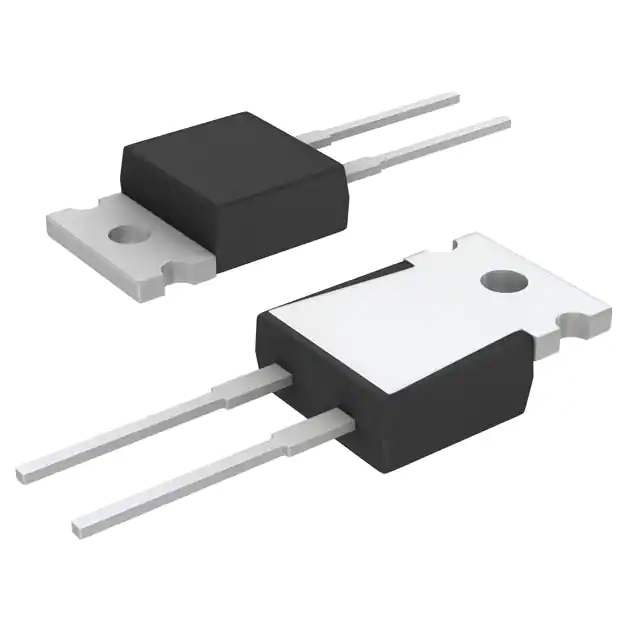

TR35JBC33R0RES 33 OHM 5% 35W TO220 |
1,016 |
|
Таблицы данных |
TR | Tube | Active | 33 Ohms | ±5% | 35W | Thick Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -65°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
|

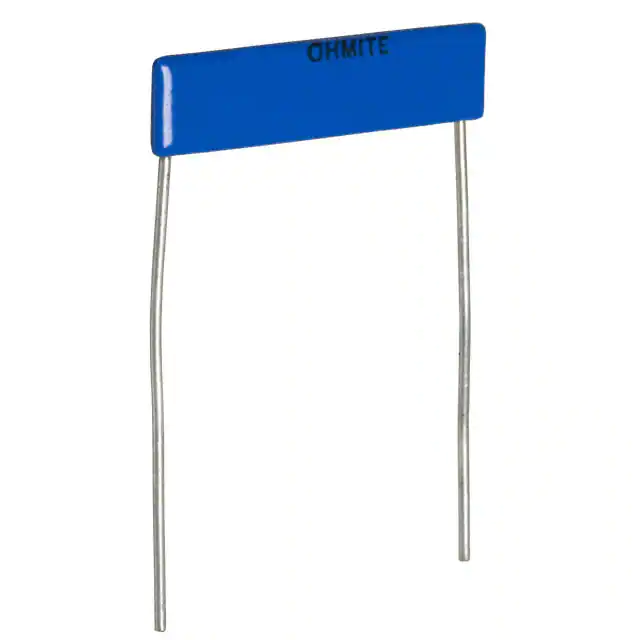

SM104031007FERES 1 GOHM 1% 1.5W RADIAL |
3,833 |
|
Таблицы данных |
Slim-Mox | Bulk | Active | 1 GOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
SM104031005FERES 10M OHM 1% 1.5W RADIAL |
4,718 |
|
Таблицы данных |
Slim-Mox | Bulk | Active | 10 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
RS00547K00FE73RES 47K OHM 5W 1% WW AXIAL |
1,439 |
|
Таблицы данных |
RS | Tape & Reel (TR) | Active | 47 kOhms | ±1% | 5W | Wirewound | Moisture Resistant | ±20ppm/°C | -65°C ~ 250°C | Axial | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | - | 2 | - |
|
SM104032006FERES 200M OHM 1% 1.5W RADIAL |
4,396 |
|
Таблицы данных |
Slim-Mox | Bulk | Active | 200 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
SM104031006FERES 100M OHM 1% 1.5W RADIAL |
4,097 |
|
Таблицы данных |
Slim-Mox | Bulk | Active | 100 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
SM104035004FERES 5M OHM 1% 1.5W RADIAL |
2,960 |
|
Таблицы данных |
Slim-Mox | Bulk | Active | 5 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|

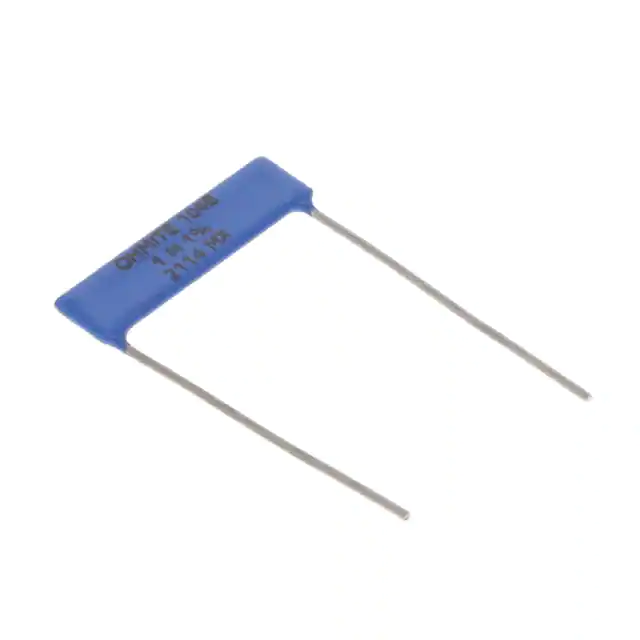

SM104031004FERES 1M OHM 1% 1.5W RADIAL |
539 |
|
Таблицы данных |
Slim-Mox | Bulk | Active | 1 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|

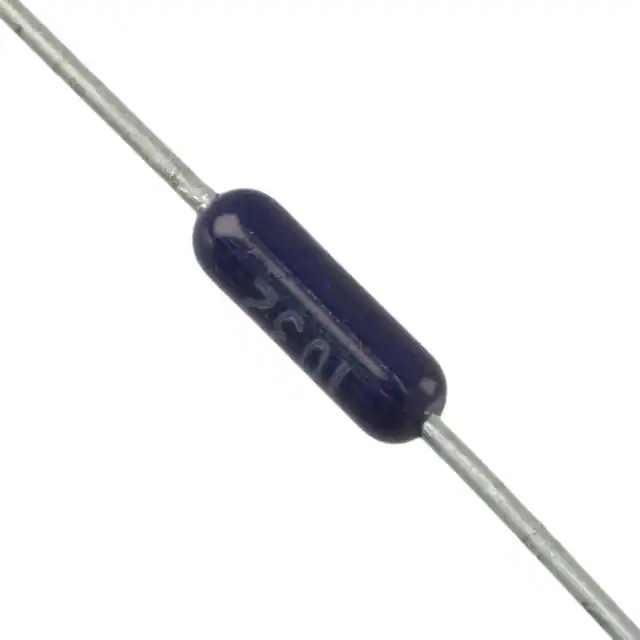

PTF56100K00BYEBRES 100K OHM 1/8W 0.1% AXIAL |
1,534 |
|
Таблицы данных |
PTF | Tape & Reel (TR) | Active | 100 kOhms | ±0.1% | 0.125W, 1/8W | Metal Film | Moisture Resistant | ±10ppm/°C | -55°C ~ 150°C | Axial | 0.091" Dia x 0.250" L (2.31mm x 6.35mm) | - | 2 | - |
|
PF2203-0R1F1RES 0.1 OHM 1% 35W TO220 |
4,375 |
|
Таблицы данных |
PF2203 | Tube | Active | 100 mOhms | ±1% | 35W | Thin Film | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 155°C | TO-220 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.591" (15.00mm) | 2 | - |
|
|
PF2203-0R01J1RES 0.01 OHM 5% 35W TO220 |
1,182 |
|
Таблицы данных |
PF2203 | Tube | Active | 10 mOhms | ±5% | 35W | Thin Film | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±250ppm/°C | -55°C ~ 155°C | TO-220 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.591" (15.00mm) | 2 | - |
|
|
SM104035005FERES 50M OHM 1% 1.5W RADIAL |
4,197 |
|
Таблицы данных |
Slim-Mox | Bulk | Active | 50 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
