БОМ
Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

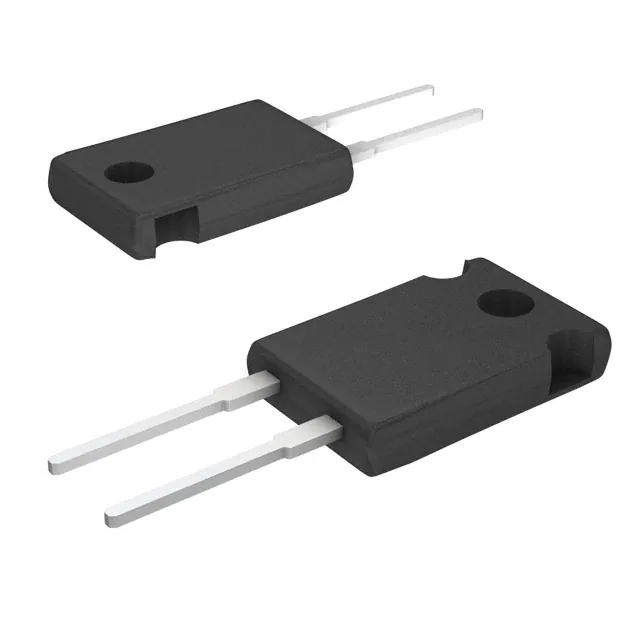

MP820-20.0-1%RES 20 OHM 1% 20W TO220 |
278 |
|
Таблицы данных |
Kool-Pak®MP800 | Tube | Active | 20 Ohms | ±1% | 20W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.45mm) | 0.590" (14.99mm) | 2 | - |
|
AP101 2R2 JRES 2.2 OHM 5% 100W TO247 |
2,885 |
|
Таблицы данных |
ARCOL, AP101 | Tube | Active | 2.2 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±300ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
MP2060-10.0-1%RES 10 OHM 1% 60W TO220 |
3,311 |
|
Таблицы данных |
Kool-Pak®MP2060 | Tube | Active | 10 Ohms | ±1% | 60W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive, Pulse Withstanding | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.175" W (10.41mm x 4.45mm) | 0.650" (16.52mm) | 2 | - |
|
|

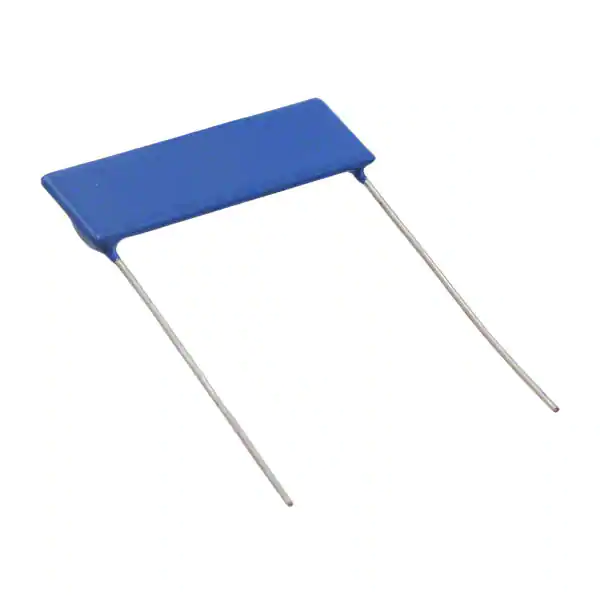

HB120MFZRERES 20M OHM 1% 1W RADIAL |
3,008 |
|
Таблицы данных |
HB, CGS | Bulk | Active | 20 MOhms | ±1% | 1W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 1.043" L x 0.118" W (26.50mm x 3.00mm) | 0.409" (10.40mm) | 2 | - |
|
|

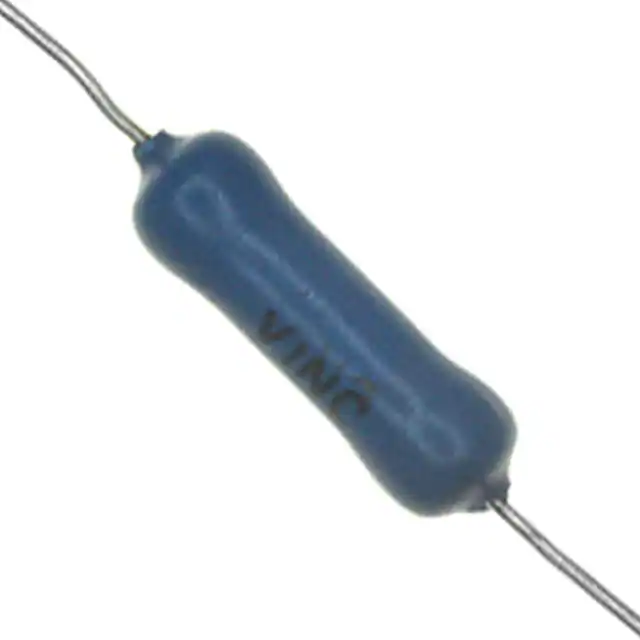

MOX-400231006FERES 100M OHM 1% 3/4W AXIAL |
1,651 |
|
Таблицы данных |
Mini-Mox | Bulk | Active | 100 MOhms | ±1% | 0.75W, 3/4W | Thick Film | High Voltage | 50ppm/°C | -55°C ~ 110°C | Axial | 0.165" Dia x 0.581" L (4.19mm x 14.78mm) | - | 2 | - |
|
HB1500KFZRERES 500K OHM 1% 1W RADIAL |
1,005 |
|
Таблицы данных |
HB, CGS | Tray | Active | 500 kOhms | ±1% | 1W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 1.043" L x 0.118" W (26.50mm x 3.00mm) | 0.409" (10.40mm) | 2 | - |
|
|
HB11M0FZRERES 1M OHM 1% 1W RADIAL |
153 |
|
Таблицы данных |
HB, CGS | Bulk | Active | 1 MOhms | ±1% | 1W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 1.043" L x 0.118" W (26.50mm x 3.00mm) | 0.409" (10.40mm) | 2 | - |
|
TCH35P220RJERES 220 OHM 5% 35W TO220 |
886 |
|
Таблицы данных |
TCH | Tube | Active | 220 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
|

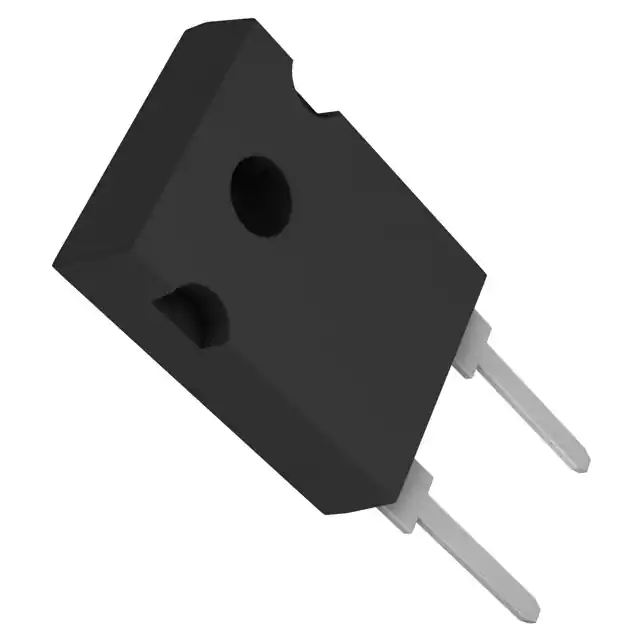

TEH100M10R0FERES 10 OHM 1% 100W TO247 |
2,063 |
|
Таблицы данных |
TEH100 | Tube | Active | 10 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | 100ppm/°C | - | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|

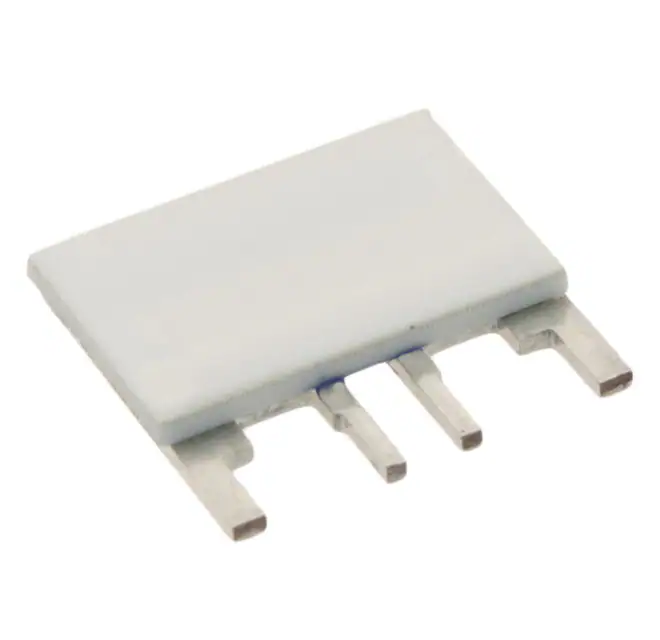

SR20-0.10-1%RES 0.1 OHM 1% 2W SR20 |
272 |
|
Таблицы данных |
SR | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 2W | Metal Element | Current Sense, Moisture Resistant, Non-Inductive | -50/ +100ppm/°C | -15°C ~ 105°C | SR20 | 0.565" L x 0.090" W (14.35mm x 2.29mm) | 0.415" (10.54mm) | 4 | - |
|
SR20-0.20-1%RES 0.2 OHM 1% 2W SR20 |
709 |
|
Таблицы данных |
SR | Tape & Reel (TR) | Active | 200 mOhms | ±1% | 2W | Metal Element | Current Sense, Moisture Resistant, Non-Inductive | -50/ +100ppm/°C | -15°C ~ 105°C | SR20 | 0.565" L x 0.090" W (14.35mm x 2.29mm) | 0.415" (10.54mm) | 4 | - |
|
MP825-100-1%RES 100 OHM 1% 25W TO126 |
910 |
|
Таблицы данных |
Kool-Pak®MP800 | Tube | Active | - | ±1% | 25W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +50ppm/°C | -55°C ~ 150°C | TO-126 | 0.320" L x 0.110" W (8.12mm x 2.79mm) | 0.550" (13.97mm) | 2 | - |
|
MOX-400231005FERES 10M OHM 1% 3/4W AXIAL |
766 |
|
Таблицы данных |
Mini-Mox | Bulk | Active | 10 MOhms | ±1% | 0.75W, 3/4W | Thick Film | High Voltage | 25ppm/°C | -55°C ~ 110°C | Axial | 0.165" Dia x 0.581" L (4.19mm x 14.78mm) | - | 2 | - |
|
|
MOX-400231007FERES 1 GOHM 1% 3/4W AXIAL |
5,138 |
|
Таблицы данных |
Mini-Mox | Bulk | Active | 1 GOhms | ±1% | 0.75W, 3/4W | Thick Film | High Voltage | 100ppm/°C | -55°C ~ 110°C | Axial | 0.165" Dia x 0.581" L (4.19mm x 14.78mm) | - | 2 | - |
|
|
TEH100M1R00FERES 1 OHM 1% 100W TO247 |
2,408 |
|
Таблицы данных |
TEH100 | Tube | Active | 1 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | 250ppm/°C | - | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
MP2060-0.020-1%RES 0.02 OHM 1% 60W TO220 |
2,703 |
|
Таблицы данных |
Kool-Pak®MP2060 | Tube | Active | 20 mOhms | ±1% | 60W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive, Pulse Withstanding | 0/ +200ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.175" W (10.41mm x 4.45mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP2060-0.050-1%RES 0.05 OHM 1% 60W TO220 |
2,371 |
|
Таблицы данных |
Kool-Pak®MP2060 | Tube | Active | 50 mOhms | ±1% | 60W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive, Pulse Withstanding | 0/ +100ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.175" W (10.41mm x 4.45mm) | 0.650" (16.52mm) | 2 | - |
|
|
LTO100F10000JTE3RES 1K OHM 100W 5% TO247 |
1,038 |
|
Таблицы данных |
LTO 100 | Tube | Active | 1 kOhms | ±5% | 100W | Thick Film | Automotive AEC-Q200, Non-Inductive | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.976" (24.80mm) | 2 | - |
|
LTO100F4R700JTE3RES 4.7 OHM 100W 5% TO247 |
902 |
|
Таблицы данных |
LTO 100 | Tube | Active | 4.7 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200, Non-Inductive | ±350ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.976" (24.80mm) | 2 | - |
|
|
LTO100F1R000JTE3RES 1 OHM 100W 5% TO247 |
796 |
|
Таблицы данных |
LTO 100 | Tube | Active | 1 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200, Non-Inductive | ±350ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.976" (24.80mm) | 2 | - |
