Триак, выходные оптоизоляторы SCR
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип выхода | Цепь пересечения нуля | Количество каналов | Напряжение - Изоляция | Напряжение - Выкл. | Статическое dV/dt (мин.) | Ток - светодиодный триггер (Ift) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Ток - Удержание (Ih) | Время включения | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|

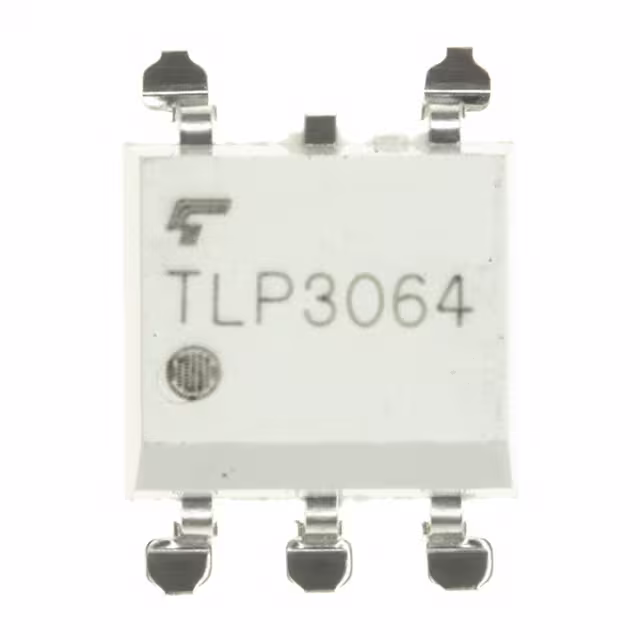

TLP3064(TP1,SC,F,T)OPTOCOUPLER TRIAC 600V 6SMD ZC Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |
- | 6-SMD (5 Leads), Gull Wing | Cut Tape (CT) | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | - | 3mA | - | 600µA | - | - | 6 mA | - | Surface Mount | 6-DIP (Cut), 5 Lead | - |
|
TLP168J(TPR,U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 2500Vrms | 600 V | 200V/µs | 3mA | 70 mA | 600µA (Typ) | - | 1.4V | 20 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
.JPG)
|

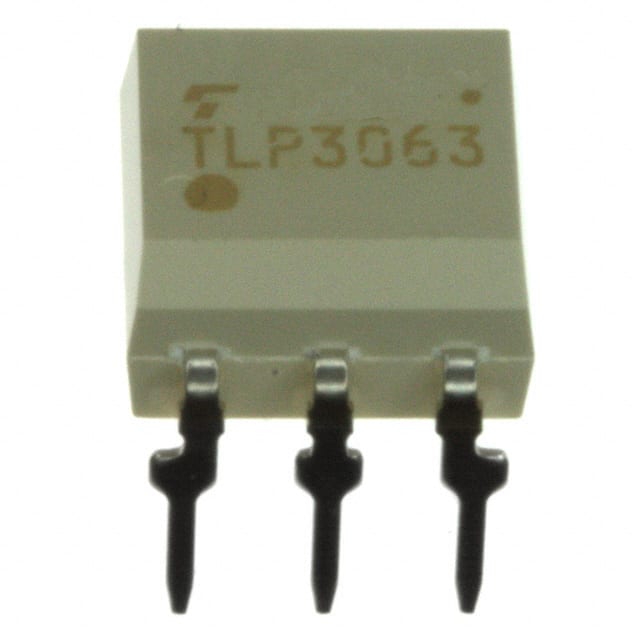

TLP3063SCFOPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 200V/µs | 5mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
.JPG)
|
TLP3052(S,C,F)OPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs (Typ) | 10mA | 100 mA | 1mA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
|
TLP160J(U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | No | 1 | 2500Vrms | 600 V | 500V/µs | 10mA | 70 mA | 1mA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP160J(TPR,U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 2500Vrms | 600 V | 500V/µs | 10mA | 70 mA | 1mA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP161G(U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | Yes | 1 | 2500Vrms | 400 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP161J(U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | Yes | 1 | 2500Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|

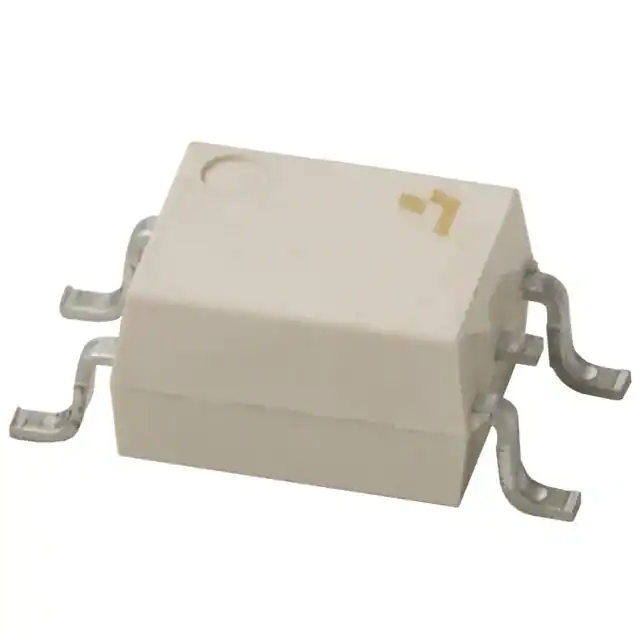

TLP260JTPRPFOPTOISOLATOR 3KV TRIAC 4SOP Toshiba Semiconductor and Storage |
0 |
|
- |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3000Vrms | 600 V | 500V/µs (Typ) | 10mA | 70 mA | 1mA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | UR |
.JPG)
|
TLP3023SFOPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 400 V | 200V/µs | 5mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
