Триак, выходные оптоизоляторы SCR
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип выхода | Цепь пересечения нуля | Количество каналов | Напряжение - Изоляция | Напряжение - Выкл. | Статическое dV/dt (мин.) | Ток - светодиодный триггер (Ift) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Ток - Удержание (Ih) | Время включения | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP266J(V4-TPR,ETRIAC COUPLER; ZC; VDE; SO6; TAP Toshiba Semiconductor and Storage |
3,000 |
|
Таблицы данных |
TLP | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | - |
|
|
TLP266J(V4T7TL,ETRIAC COUPLER; ZC; 7MA TRIGGER C Toshiba Semiconductor and Storage |
2,900 |
|
Таблицы данных |
TLP | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | - |
|
|
TLP266J(V4T7,ETRIAC COUPLER; ZC; 7MA TRIGGER C Toshiba Semiconductor and Storage |
125 |
|
Таблицы данных |
TLP | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | - |
|
|
TLP268J(TPL,EX36 PB-F TRIAC COUPLER LOW TRIGG Toshiba Semiconductor and Storage |
4,072 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
|
TLP267J(TPL,EX36 PB-F TRIAC COUPLER LOW TRIGG Toshiba Semiconductor and Storage |
2,966 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
|
TLP268J(EX36 PB-F TRIAC COUPLER LOW TRIGG Toshiba Semiconductor and Storage |
111 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
|
TLP268J(T2-TPL,ETRIAC COUPLER; 2MA LOW TRIGGER C Toshiba Semiconductor and Storage |
11,000 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
|
TLP267J(T2-TPL,ETRIAC COUPLER; 2MA LOW TRIGGER C Toshiba Semiconductor and Storage |
5,700 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
TLP3073(TP1,FOPTO TRIAC COUPLER; NON-ZERO-VOL Toshiba Semiconductor and Storage |
553 |
|
Таблицы данных |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 800 V | 2kV/µs (Typ) | 5mA | 100 mA | 1mA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SO, 5 Lead | CQC, cUR, UR |
|

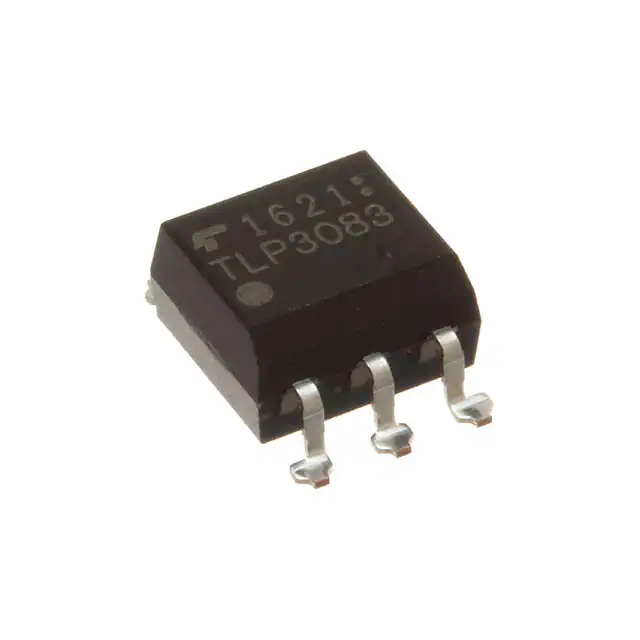

TLP3083F(TP4,FPHOTOTRIAC; ZVC; WIDE CREEPAGE; Toshiba Semiconductor and Storage |
5,956 |
|
Таблицы данных |
- | 6-SMD, Gull Wing, 5 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 2kV/µs (Typ) | 5mA | 100 mA | 600µA | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, cUL, UL, VDE |
