Триак, выходные оптоизоляторы SCR
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип выхода | Цепь пересечения нуля | Количество каналов | Напряжение - Изоляция | Напряжение - Выкл. | Статическое dV/dt (мин.) | Ток - светодиодный триггер (Ift) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Ток - Удержание (Ih) | Время включения | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP266J(TPR,EX36 PB-F TRIAC COUPLER ZC SO6 RI Toshiba Semiconductor and Storage |
6,642 |
|
Таблицы данных |
TLP | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | - |
|
|
TLP268J(TPR,EX36 PB-F TRIAC COUPLER LOW TRIGG Toshiba Semiconductor and Storage |
24,294 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|

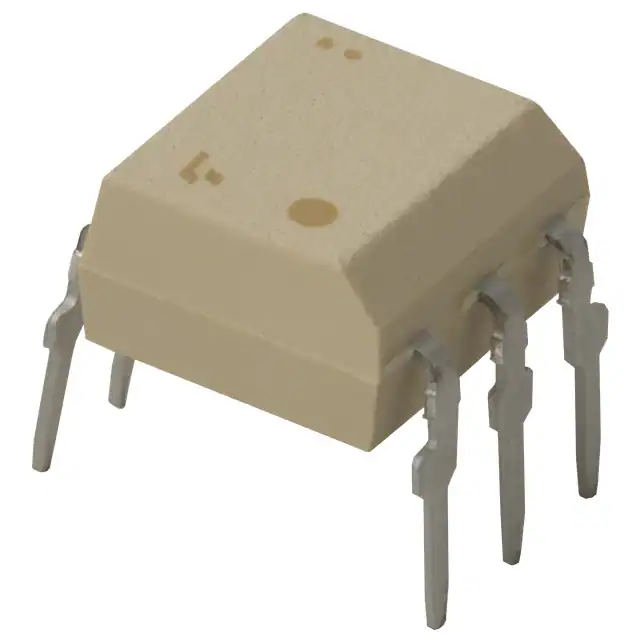

TLP748J(F)OPTOISOLATOR 4KV SCR 6DIP Toshiba Semiconductor and Storage |
4,168 |
|
Таблицы данных |
- | 6-DIP (0.400", 10.16mm) | Tube | Last Time Buy | SCR | No | 1 | 4000Vrms | 600 V | 5V/µs | 10mA | 150 mA | 1mA | 15µs | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | BSI, SEMKO, UR |
|
|
TLP265J(TPR,EOPTOISOLATOR 3.75KV TRIAC 6SO 4L Toshiba Semiconductor and Storage |
5,015 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 10mA | 70 mA | 1mA (Typ) | 100µs (Max) | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | cUR, UR |
|
|
TLP266J(T7-TPL,EOPTOISOLATOR 3.75KV TRIAC 6SO 4L Toshiba Semiconductor and Storage |
46,466 |
|
Таблицы данных |
TLP | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | cUL, UL |
|
|
TLP267J(TPR,EX36 PB-F TRIAC COUPLER LOW TRIGG Toshiba Semiconductor and Storage |
3,714 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
TLP548J(TP1,F)PHOTOTHYRISTOR LOW TRIGGER LED Toshiba Semiconductor and Storage |
1,500 |
|
- |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Last Time Buy | SCR | No | 1 | 2500Vrms | 600 V | 5V/µs | 7mA | 150 mA | 1mA | 10µs | 1.15V | 50 mA | -25°C ~ 85°C | Surface Mount | 6-SMD | UR |
|

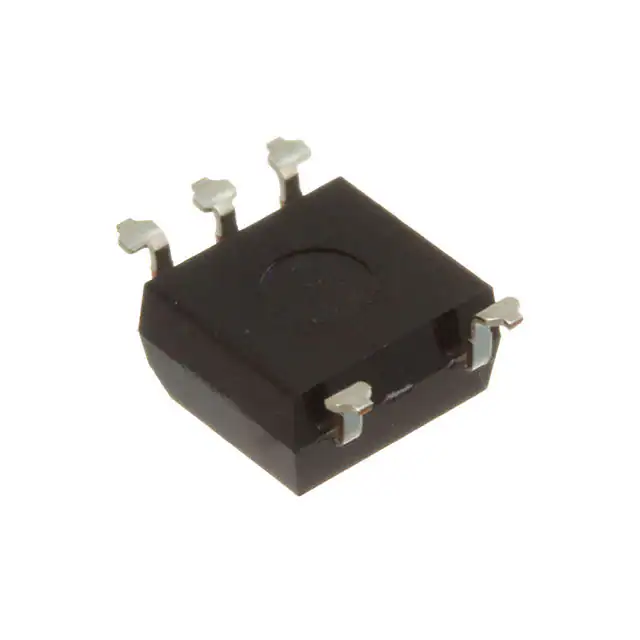

TLP3052A(TP1,FOPTO TRIAC COUPLER; NON-ZERO-VOL Toshiba Semiconductor and Storage |
4,095 |
|
Таблицы данных |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 600 V | 2kV/µs (Typ) | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SO, 5 Lead | CQC, cUR, UR |
|
|
TLP3062A(TP1,FOPTO TRIAC COUPLER; ZERO-VOLTAGE Toshiba Semiconductor and Storage |
1,509 |
|
Таблицы данных |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 2kV/µs (Typ) | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SO, 5 Lead | CQC, cUR, UR |
.jpg)
|
TLP748J(TP1,F)OPTOISOLATOR 4KV SCR 6SMD Toshiba Semiconductor and Storage |
11,982 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Last Time Buy | SCR | No | 1 | 4000Vrms | 600 V | 5V/µs | 10mA | 150 mA | 1mA | 15µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | BSI, SEMKO, UR |
