Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

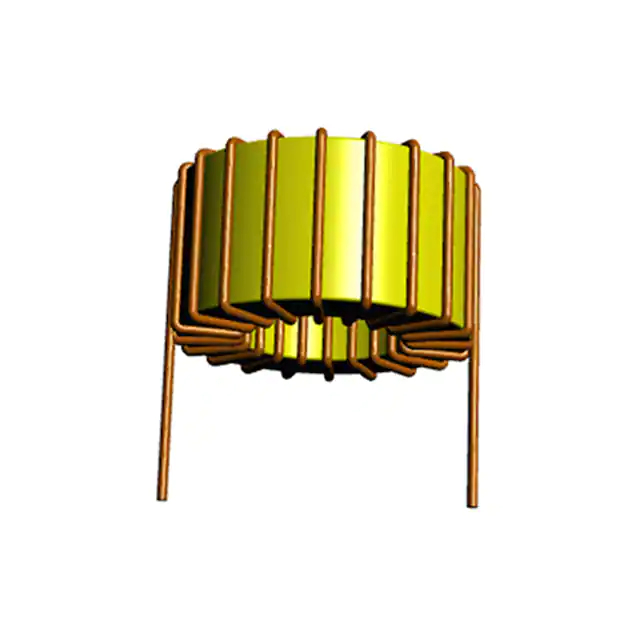

ATCA-05-321M-HFIXED IND 320UH 5A 68 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 320 µH | ±20% | 5 A | - | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" Dia (30.00mm) | 0.669" (17.00mm) |
|
ATCA-05-321M-VFIXED IND 320UH 5A 68 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 320 µH | ±20% | 5 A | - | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" L x 0.669" W (30.00mm x 17.00mm) | - |
.jpg)
|
AIRD-03-120KFIXED IND 12UH 13.5A 8 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 13.5 A | 35A | Unshielded | 8mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
AIRD-03-150KFIXED IND 15UH 13.5A 9 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 13.5 A | 32A | Unshielded | 9mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
AIRD-03-180KFIXED IND 18UH 13.5A 10 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 13.5 A | 29A | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
AIRD-03-270KFIXED IND 27UH 13.5A 12 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 13.5 A | 23A | Unshielded | 12mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
AIRD-03-390KFIXED IND 39UH 11.4A 22 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 11.4 A | 19A | Unshielded | 22mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
AIRD-03-680KFIXED IND 68UH 9A 29 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 9 A | 15A | Unshielded | 29mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
ATCA-05-451M-HFIXED IND 450UH 2A 174 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 450 µH | ±20% | 2 A | - | Unshielded | 174mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" Dia (30.00mm) | 0.669" (17.00mm) |
|
|
ATCA-05-451M-VFIXED IND 450UH 2A 174 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 450 µH | ±20% | 2 A | - | Unshielded | 174mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" L x 0.669" W (30.00mm x 17.00mm) | - |
