Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CA1A-DC12V-ARELAY AUTOMOTIVE SPST 30A 12V |
0 |
|
Таблицы данных |
CA | Tray | Obsolete | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
|
CA1A-DC24V-NRELAY AUTOMOTIVE SPST 10A 24V |
0 |
|
Таблицы данных |
CA | Tray | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 10 A | 30VDC - Max | 16 VDC | 1.2 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
|
CA1B-DC12V-NRELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
Таблицы данных |
CA | Tray | Obsolete | Non Latching | 150 mA | 12VDC | SPST-NC (1 Form B) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
CB1-D-12VRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1-D-24VRELAY AUTOMOTIVE SPDT 20A 24V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CB1-D-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1-D-M-24VRELAY AUTOMOTIVE SPDT 20A 24V |
0 |
|
Таблицы данных |
CB | Tube | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CB1-D-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1A-D-12VRELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
Таблицы данных |
CB | Tube | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1A-D-24VRELAY AUTOMOTIVE SPST 20A 24V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1A-D-M-12VRELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1A-D-M-24VRELAY AUTOMOTIVE SPST 20A 24V |
0 |
|
Таблицы данных |
CB | Tube | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AF-D-24VRELAY AUTOMOTIVE SPST 20A 24V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AF-D-M-12VRELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AF-D-P-12VRELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1F-D-24VRELAY AUTOMOTIVE SPDT 20A 24V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

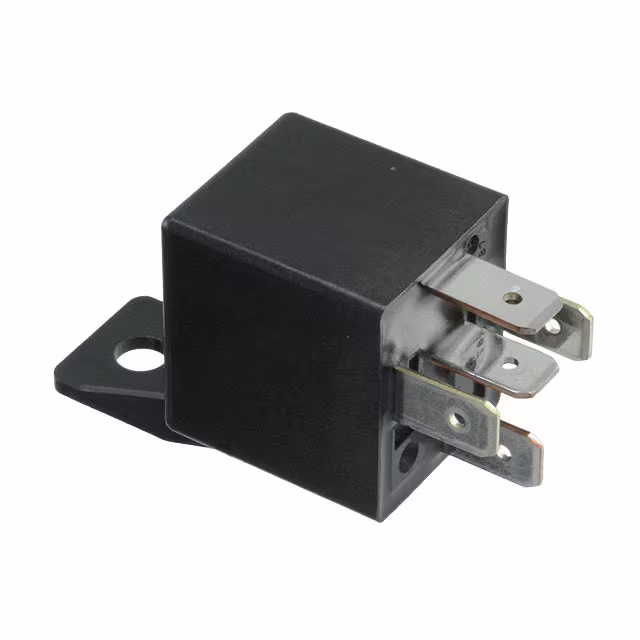

CB1F-D-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1F-D-M-24VRELAY AUTOMOTIVE SPDT 20A 24V |
0 |
|
Таблицы данных |
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

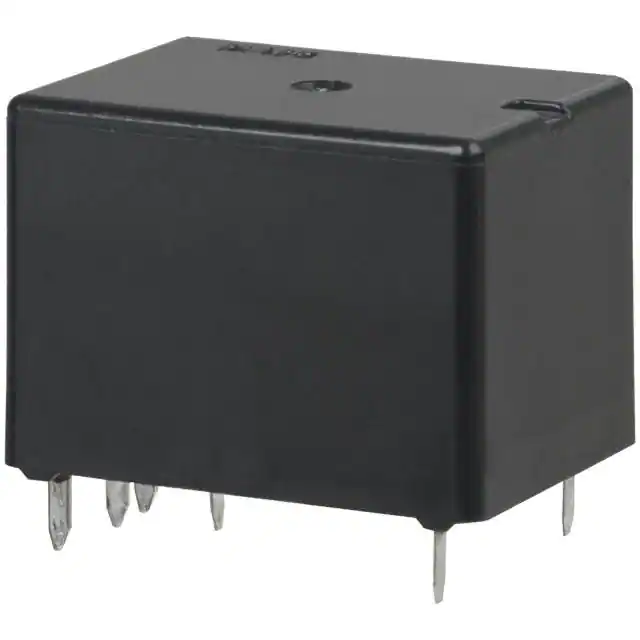

CF2-12VRELAY AUTOMOTIVE SPDT 10A 12V |
0 |
|
Таблицы данных |
CF | Tube | Obsolete | Non Latching | 53 mA | 12VDC | SPDT (1 Form C) x 2 | 10 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
CM1-D-12VRELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Таблицы данных |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 15 ms | Diode, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
