Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACV11012RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 85°C |
|
ACV11112RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In | -40°C ~ 85°C |
|
ACV11212RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV12112RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV12212RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV13012RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ACV13112RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | Diode | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ACV13212RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Through Hole | PC Pin | -40°C ~ 85°C |
|
|

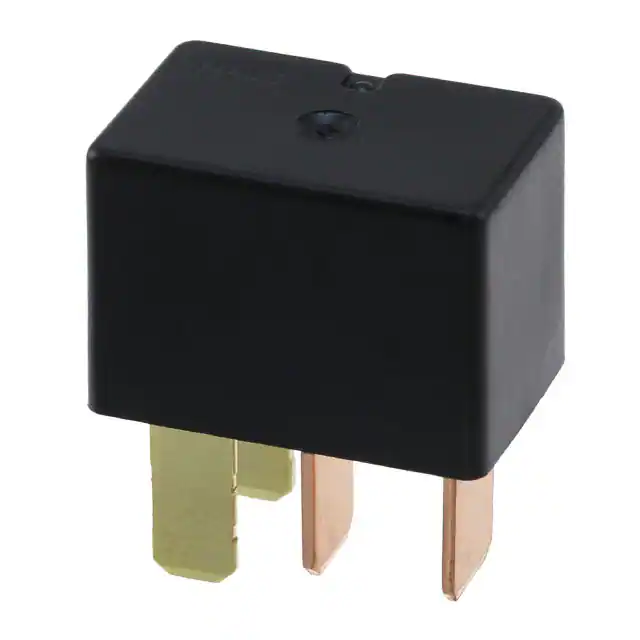

ACV31012RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
Таблицы данных |
ACV | Box | Obsolete | Non Latching | 67 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV31112RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV31212RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In | -40°C ~ 85°C |
|

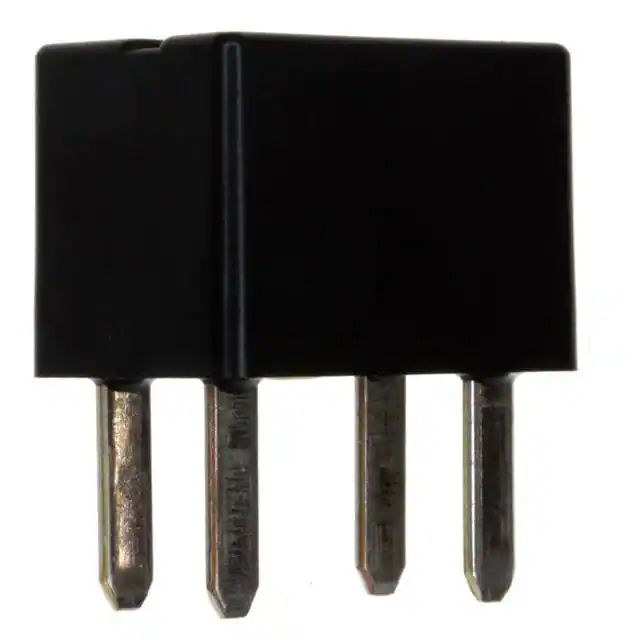

ACV32012RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV32212RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV33012RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ACV33212RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
Таблицы данных |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AEV13012RELAY AUTOMOTIVE SPST 30A 12V |
0 |
|
Таблицы данных |
AEV | Bulk | Obsolete | Non Latching | 415 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|
|
AEV15112RELAY AUTOMOTIVE SPST 150A 12V |
0 |
|
Таблицы данных |
AEV | Bulk | Obsolete | Non Latching | 2.8 A | 12VDC | SPST-NO (1 Form A) | 150 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|
|
AEV16012RELAY AUTOMOTIVE SPST 60A 12V |
0 |
|
Таблицы данных |
AEV | Bulk | Obsolete | Non Latching | 415 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|
|
AEV16024RELAY AUTOMOTIVE SPST 60A 24V |
0 |
|
Таблицы данных |
AEV | Bulk | Obsolete | Non Latching | 208 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|
|
AEV25112RELAY AUTOMOTIVE DPST 150A 12V |
0 |
|
Таблицы данных |
AEV | Bulk | Obsolete | Non Latching | 2.8 A | 12VDC | DPST-NO (2 Form A) | 150 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
