Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

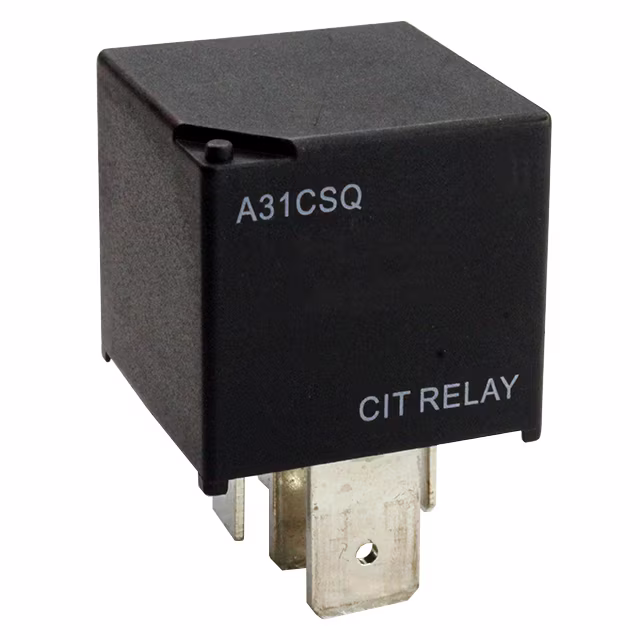

A31CSQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V CIT Relay and Switch |
8 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2S1ASQ48VDC1.6DRELAY AUTOMOTIVE SPST 40A 48V CIT Relay and Switch |
21 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

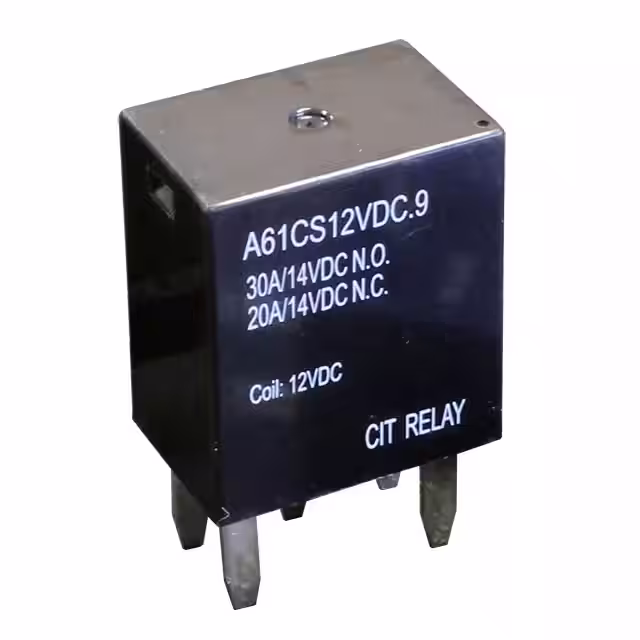

A61CS12VDC.9RELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A31CCQ24VDC1RELAY AUTOMOTIVE SPDT 60A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2S1CSQ48VDC1.9RRELAY AUTOMOTIVE SPDT 40A 48V CIT Relay and Switch |
15 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 39.6 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

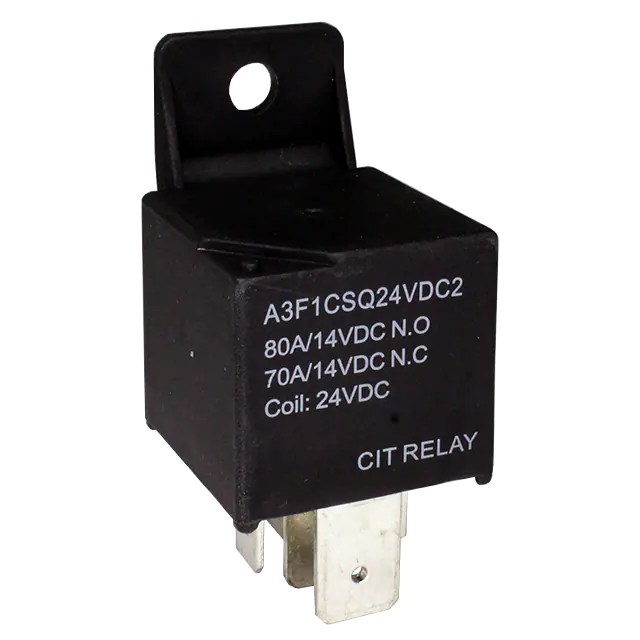

A3F1CSQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3F | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3K1CSP12VDC1.6RRELAY AUTOMOTIVE SPDT 150A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

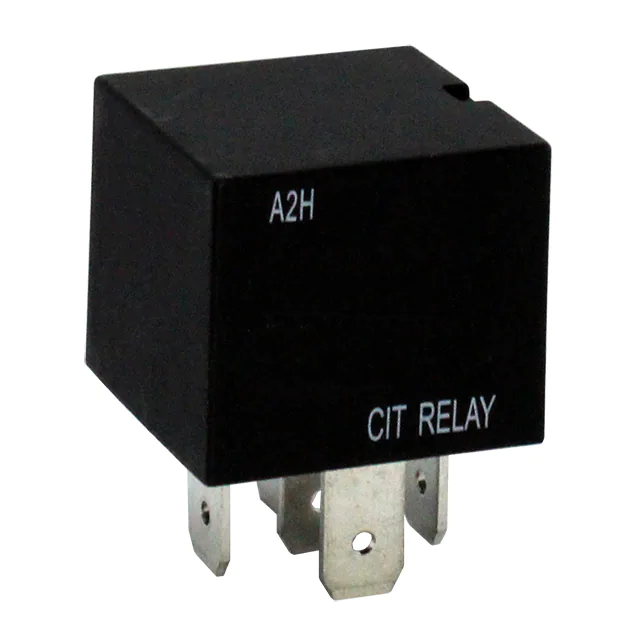

A2H1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

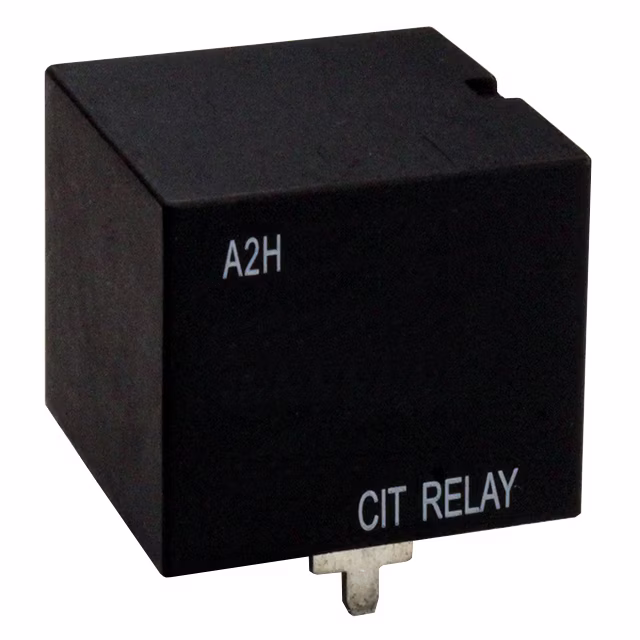

A2H1ASP12VDC1.6RELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

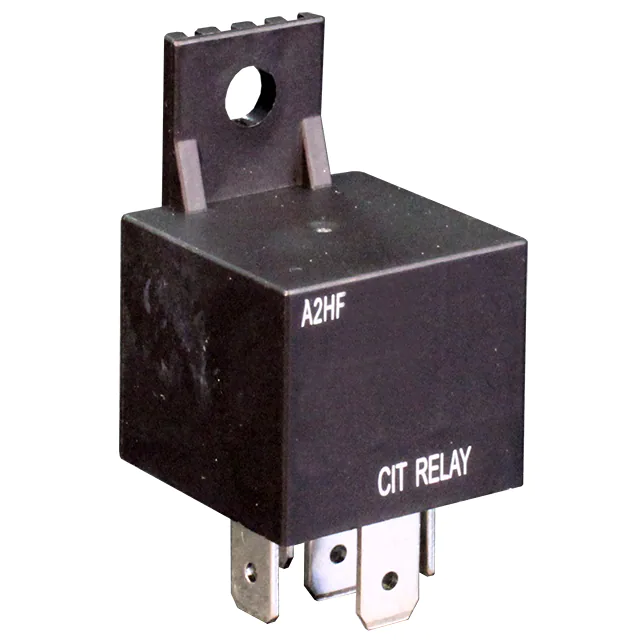

A2HF1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
