БОМ
Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3F1ASP24VDC2RRELAY AUTOMOTIVE FLANGED HEAVY D CIT Relay and Switch |
0 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A2KM1CSQ48VDC1.6RRELAY AUTOMOTIVE SPDT 60A 48VDC CIT Relay and Switch |
4 |
|
Таблицы данных |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3KM1ASQ48VDC1.6RELAY AUTOMOTIVE SPST 80A 48VDC CIT Relay and Switch |
14 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3KM1ASQ48VDC1.6DRELAY AUTOMOTIVE SPST 80A 48VDC CIT Relay and Switch |
23 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3KM1CSQ48VDC1.6DRELAY AUTOMOTIVE SPDT 80A 48VDC CIT Relay and Switch |
0 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A161CS12VDC.80RELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A16 | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 30 A | 20VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
A51AO12VDC1.9RELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A5 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|

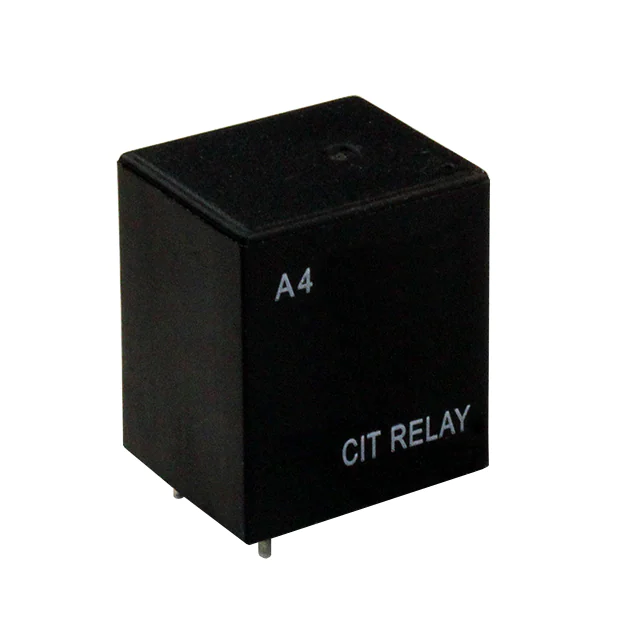

A41US12VDCRELAY AUTOMOTIVE SPDT 20A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A4 | Tray | Active | Non Latching | 82.8 mA | 12VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51AO12VDC1.6URELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A5 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51AO12VDC1.9URELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A5 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
