Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3K1CSQ48VDC1.6RRELAY AUTOMOTIVE SPDT 80A 48VDC CIT Relay and Switch |
75 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1CSP48VDC1.6DRELAY AUTOMOTIVE SPDT 80A 48VDC CIT Relay and Switch |
66 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3KM1CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 80A 48VDC CIT Relay and Switch |
56 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3KM1CSQ48VDC1.6RRELAY AUTOMOTIVE SPDT 80A 48VDC CIT Relay and Switch |
78 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

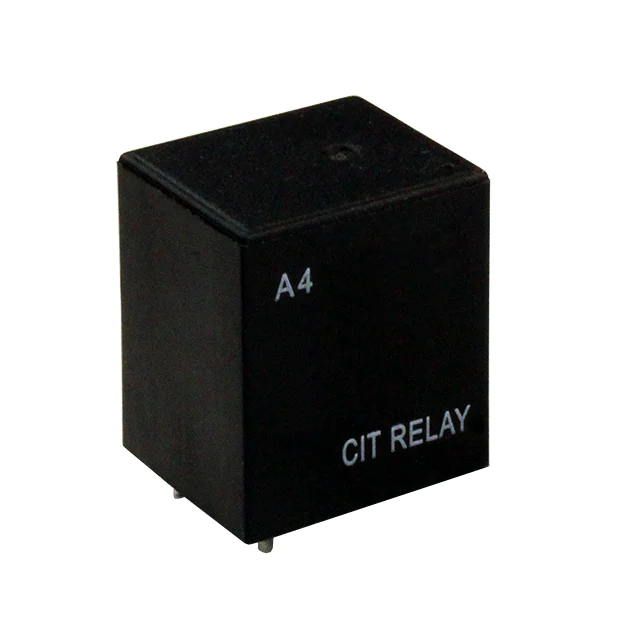

A41CS24VDCRELAY AUTOMOTIVE SPDT 20A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A4 | Tube | Active | Non Latching | 41.7 mA | 24VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A21CSP12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A21CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A11CSQ24VDC1.2RELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
A2F1CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 40A 48V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HF1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 50A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
