Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

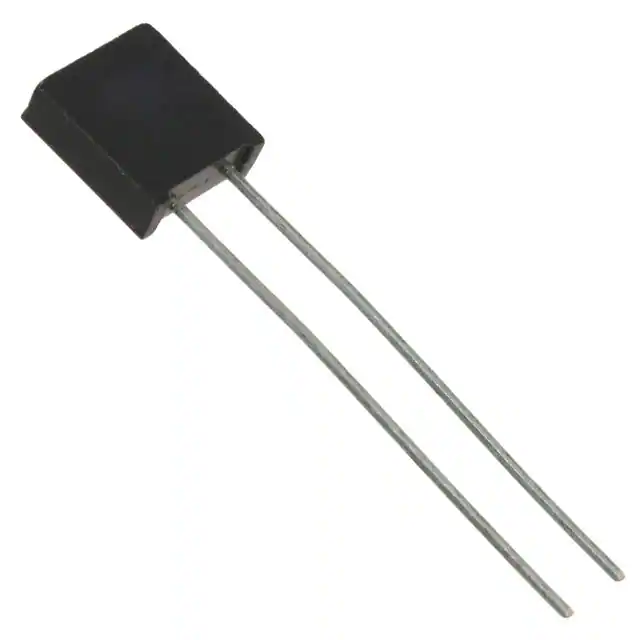

Y0007120R000T9LRES 120 OHM 0.6W 0.01% RADIAL |
491 |
|
Таблицы данных |
S | Bulk | Active | 120 Ohms | ±0.01% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive | ±2ppm/°C | -55°C ~ 125°C | - | 0.300" L x 0.105" W (7.62mm x 2.67mm) | 0.336" (8.53mm) | 2 | - |
|
Y0785100R000T9LRES 100 OHM 0.6W 0.01% RADIAL |
267 |
|
Таблицы данных |
S | Bulk | Active | 100 Ohms | ±0.01% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive | ±2ppm/°C | -55°C ~ 125°C | - | 0.300" L x 0.105" W (7.62mm x 2.67mm) | 0.336" (8.53mm) | 2 | - |
|
|
Y000710K0000T9LRES 10K OHM 0.6W 0.01% RADIAL |
141 |
|
Таблицы данных |
S | Bulk | Active | 10 kOhms | ±0.01% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive | ±2ppm/°C | -55°C ~ 125°C | - | 0.300" L x 0.105" W (7.62mm x 2.67mm) | 0.336" (8.53mm) | 2 | - |
|
|
Y0007100R000T9LRES 100 OHM 0.6W 0.01% RADIAL |
120 |
|
Таблицы данных |
S | Bulk | Active | 100 Ohms | ±0.01% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive | ±2ppm/°C | -55°C ~ 125°C | - | 0.300" L x 0.105" W (7.62mm x 2.67mm) | 0.336" (8.53mm) | 2 | - |
|

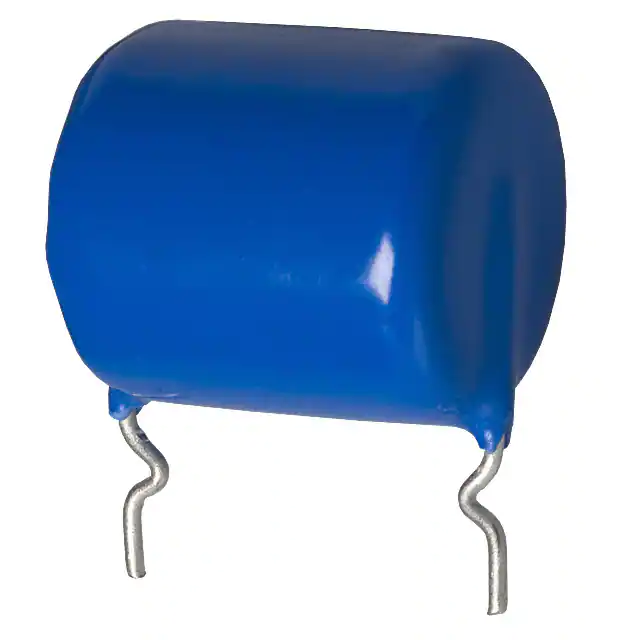

AY22GKERES 2.2 OHM 10% 4.5W RADIAL |
2,958 |
|
Таблицы данных |
PulsEater® A | Bulk | Active | 2.2 Ohms | ±10% | 4.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | Radial Lead | 0.984" L x 0.827" W (25.00mm x 21.00mm) | 1.102" (28.00mm) | 2 | - |
|

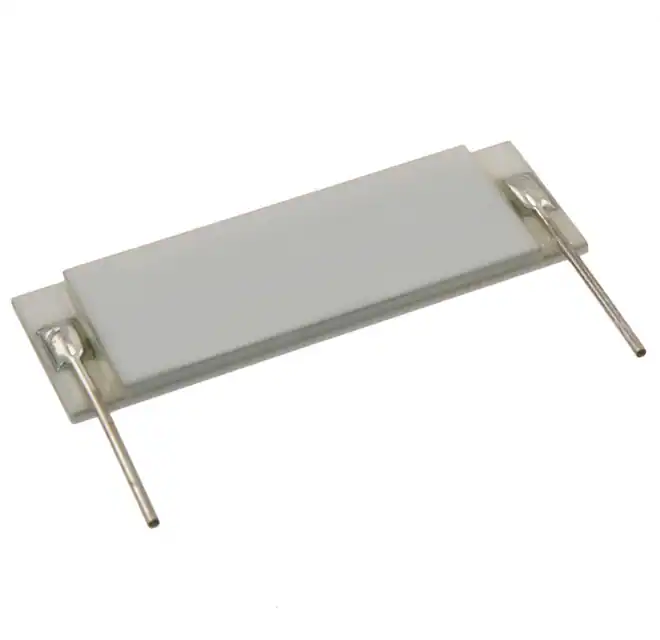

USF370-5.00M-0.1%-5PPMRES 5M OHM 0.1% 3/4W RADIAL |
661 |
|
Таблицы данных |
USF | Bulk | Active | 5 MOhms | ±0.1% | 0.75W, 3/4W | Thick Film | - | ±5ppm/°C | -40°C ~ 85°C | - | 1.500" L x 0.075" W (38.10mm x 1.91mm) | 0.520" (13.21mm) | 2 | - |
|

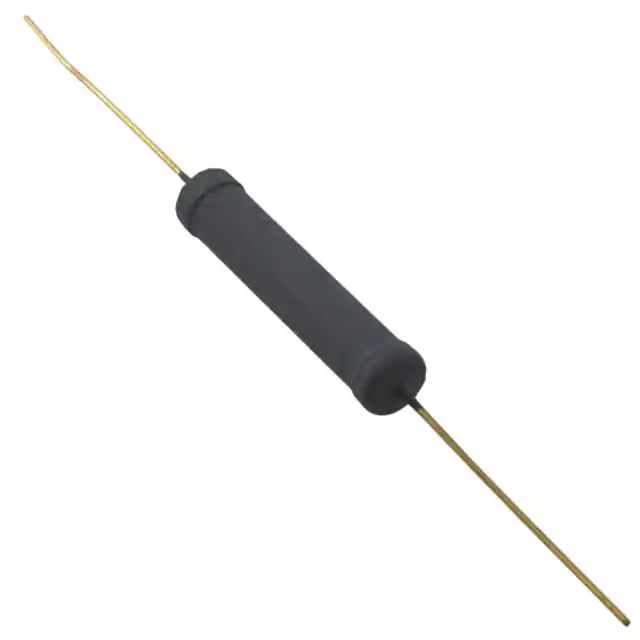

MOX92021006FVERES 100M OHM 1% 5W AXIAL |
810 |
|
Таблицы данных |
Super-Mox | Bulk | Active | 100 MOhms | ±1% | 4.6W | Metal Oxide Film | High Voltage, Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 225°C | Axial | 0.315" Dia x 1.457" L (8.00mm x 37.00mm) | - | 2 | - |
|
|
AX10GKERES 1 OHM 10% 3.5W RADIAL |
599 |
|
Таблицы данных |
PulsEater® A | Bulk | Active | 1 Ohms | ±10% | 3.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | - | 0.591" L x 0.827" W (15.00mm x 21.00mm) | 1.102" (28.00mm) | 2 | - |
|
|
USF370-10.0M-0.1%-5PPMRES 10M OHM 0.1% 3/4W RADIAL |
267 |
|
Таблицы данных |
USF | Bulk | Active | 10 MOhms | ±0.1% | 0.75W, 3/4W | Thick Film | - | ±5ppm/°C | -40°C ~ 85°C | - | 1.500" L x 0.075" W (38.10mm x 1.91mm) | 0.520" (13.21mm) | 2 | - |
|
|
MOX1125231009FERES 100G OHM 1.5W 1% AXIAL |
349 |
|
Таблицы данных |
Mini-Mox | Bulk | Active | 100 GOhms | ±1% | 1.5W | Thick Film | High Voltage | 100ppm/°C | -55°C ~ 220°C | - | 0.165" Dia x 1.270" L (4.19mm x 32.26mm) | - | 2 | - |
|
|
PBV-R005-F1-0.5RESISTOR - ISA-PLAN THROUGH-HOLE |
2,038 |
|
Таблицы данных |
PBV | Tray | Active | 5 mOhms | ±0.5% | 10W | - | Pulse Withstanding | ±75ppm/°C | -55°C ~ 125°C | 4-SIP | 0.886" L x 0.175" W (22.50mm x 4.45mm) | 0.815" (20.70mm) | 4 | - |
|
|
PBV-R001-F1-0.5RESISTOR - ISA-PLAN THROUGH-HOLE |
945 |
|
Таблицы данных |
PBV | Tray | Active | 1 mOhms | ±0.5% | 10W | - | Pulse Withstanding | ±75ppm/°C | -55°C ~ 125°C | 4-SIP | 0.886" L x 0.175" W (22.50mm x 4.45mm) | 0.815" (20.70mm) | 4 | - |
|
|
PBV-R010-F1-1.0RES 0.01 OHM 1% 10W 4SIP |
934 |
|
Таблицы данных |
PBV | Tray | Active | 10 mOhms | ±1% | 10W | - | Pulse Withstanding | ±30ppm/°C | -55°C ~ 125°C | 4-SIP | 0.886" L x 0.175" W (22.50mm x 4.45mm) | 0.815" (20.70mm) | 4 | - |
|

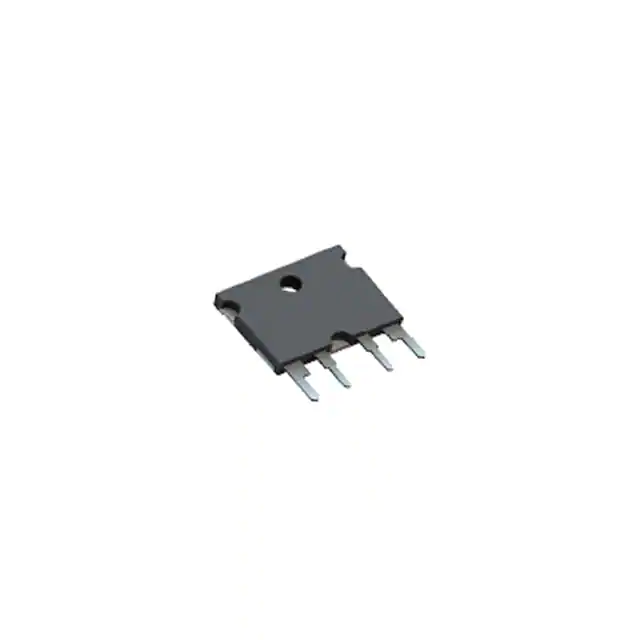

PCS-0R002D1RES 0.002 OHM 0.5% 40W RADIAL |
2,635 |
|
Таблицы данных |
PCS | Tube | Active | 2 mOhms | ±0.5% | 40W | Metal Foil | Current Sense | ±10ppm/°C | -40°C ~ 130°C | Radial Lead | 0.878" L x 0.177" W (22.30mm x 4.50mm) | 0.687" (17.45mm) | 4 | - |
|
|

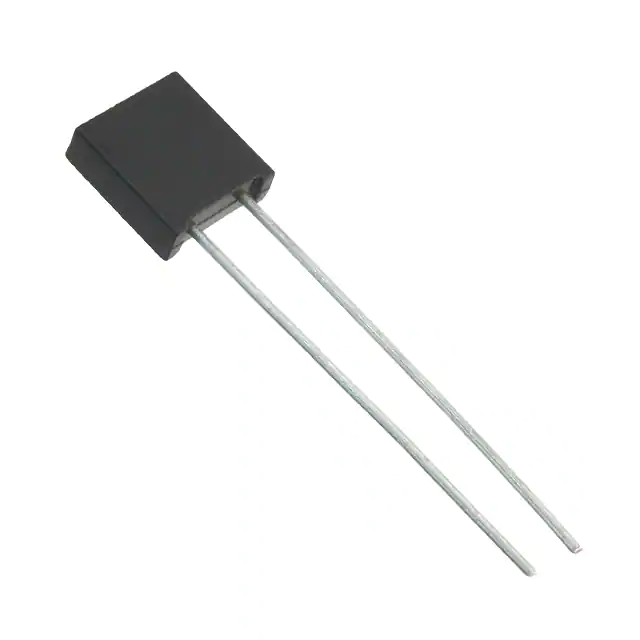

Y14531K00000T9LRES 1K OHM 0.6W 0.01% RADIAL |
493 |
|
Таблицы данных |
Z | Bulk | Active | 1 kOhms | ±0.01% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -55°C ~ 125°C | - | 0.300" L x 0.105" W (7.62mm x 2.67mm) | 0.336" (8.53mm) | 2 | - |
|

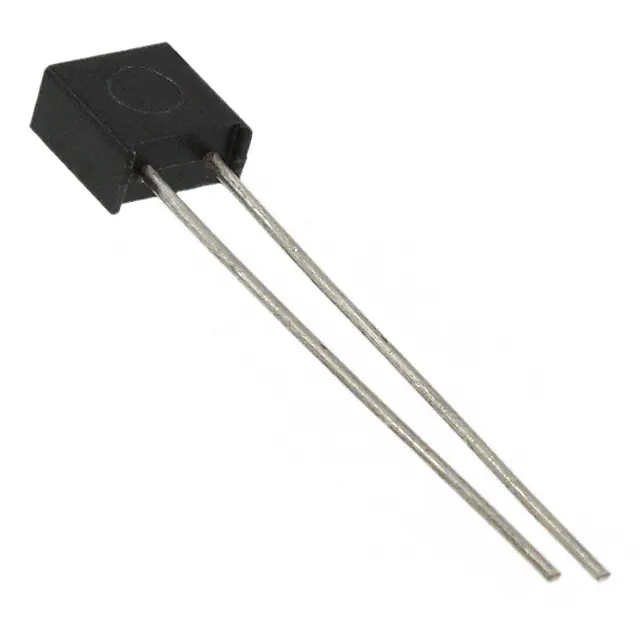

Y10735K00000T9LRES 5.0K OHM 1/4W 0.01% RADIAL |
255 |
|
Таблицы данных |
Z202 | Bulk | Active | 5 kOhms | ±0.01% | 0.25W, 1/4W | Metal Foil | Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -50°C ~ 125°C | - | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.260" (6.60mm) | 2 | - |
|
Y1453200R000T9LRES 200 OHM 0.6W 0.01% RADIAL |
215 |
|
Таблицы данных |
Z | Bulk | Active | 200 Ohms | ±0.01% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -55°C ~ 125°C | - | 0.300" L x 0.105" W (7.62mm x 2.67mm) | 0.336" (8.53mm) | 2 | - |
|
|
Y107320K0000T9LRES 20K OHM 1/4W 0.01% RADIAL |
171 |
|
Таблицы данных |
Z202 | Bulk | Active | 20 kOhms | ±0.01% | 0.25W, 1/4W | Metal Foil | Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -50°C ~ 125°C | - | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.260" (6.60mm) | 2 | - |
|
|
Y107310K0000T9LRES 10K OHM 1/4W 0.01% RADIAL |
119 |
|
Таблицы данных |
Z202 | Bulk | Active | 10 kOhms | ±0.01% | 0.25W, 1/4W | Metal Foil | Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -50°C ~ 125°C | - | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.260" (6.60mm) | 2 | - |
|

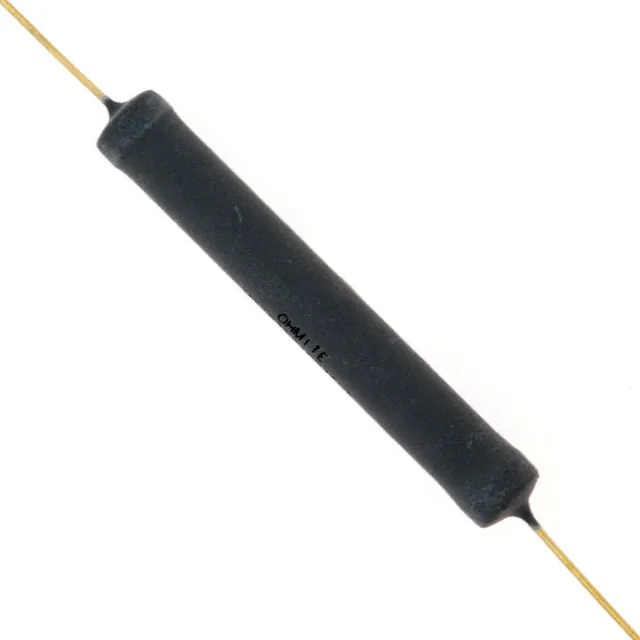

MOX93025004FVERES 5M OHM 1% 7.5W AXIAL |
260 |
|
Таблицы данных |
Super-Mox | Bulk | Active | 5 MOhms | ±1% | 7.8W | Metal Oxide Film | High Voltage, Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 225°C | Axial | 0.315" Dia x 2.047" L (8.00mm x 52.00mm) | - | 2 | - |
