БОМ
Селекторные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Схема | Количество положений | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип крепления | Тип вывода | Размеры выреза панели | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

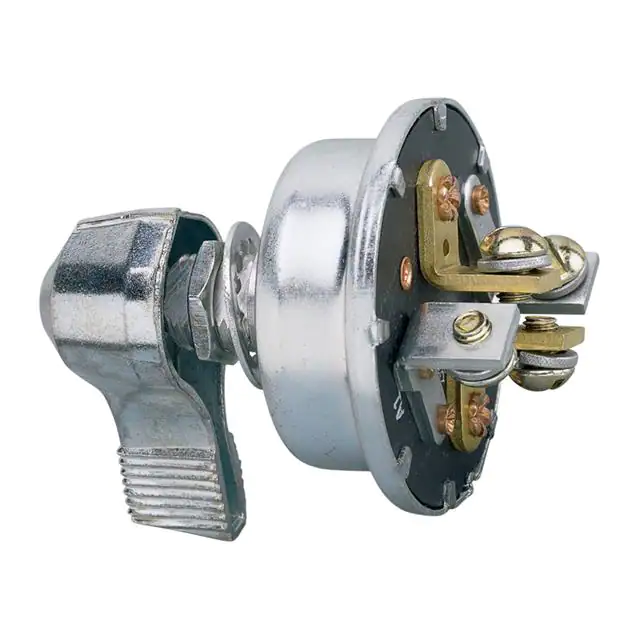

75712-04SWITCH SELECTOR 3POS 50A 12V |
82 |
|
Таблицы данных |
- | Bulk | Active | Standard | - | 3 | Mom-Off-Mom | 50A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | - | - | - |
|

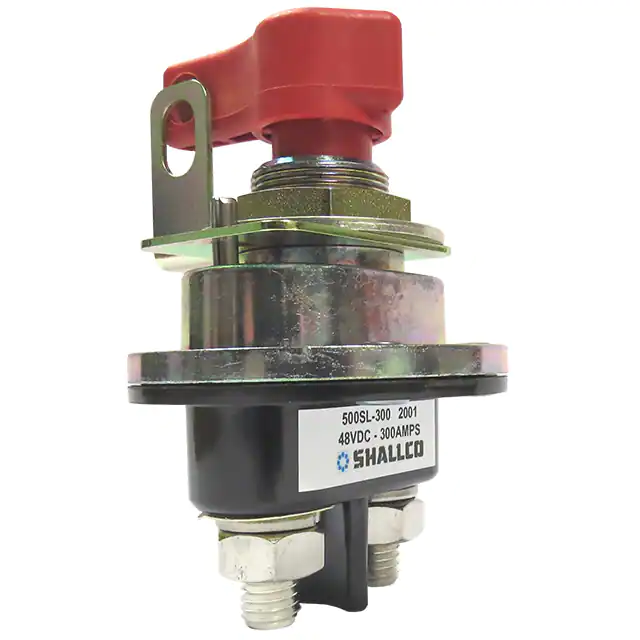

500SL-300SWITCH SELECTOR 300A 48V |
51 |
|
Таблицы данных |
500 | Box | Active | Battery Disconnect | SPST | 2 | Off-On | 300A (DC) | - | 48 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 23.80mm Dia | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
C0400011RSWITCH SELECT 2POS 4PDT 40A 690V |
39 |
|
Таблицы данных |
- | Retail Package | Active | Standard | 4PDT | 2 | On-On | 40A (AC) | 690 V | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 85°C |
|
HSSO3-SHWE-CBFSR/CBFSRSWITCH SELECT 3POS 4PST 10A 72V |
194 |
|
- |
- | Box | Active | Standard | 4PST-2NO/2NC | 3 | On-Off-On | 10A (AC), 5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
|
HVBD4AXR400A Batt Disconnct 1500VDC SPST |
26 |
|
Таблицы данных |
HVBD | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 400A (DC) | - | 1500 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 68.60mm Dia | IP69 - Dust Tight, Water Resistant, Waterproof | Bezel - Round, Red Knob | -55°C ~ 85°C |
|
|
HVBD3AAR300A Batt Disconnct 1500VDC SPST |
43 |
|
Таблицы данных |
HVBD | Bulk | Active | Battery Disconnect | SPST + SPDT | 2 | On-Off | 300A (DC) | - | 1500 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 68.60mm Dia | IP69 - Dust Tight, Water Resistant, Waterproof | With SPDT Auxiliary Contacts | -55°C ~ 85°C |
|
|
HVBD6AXR600A Batt Disconnct 1500VDC SPST |
30 |
|
Таблицы данных |
HVBD | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 600A (DC) | - | 1500 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 68.60mm Dia | IP69 - Dust Tight, Water Resistant, Waterproof | Bezel - Round, Red Knob | -55°C ~ 85°C |
|
|
HVBD4AAR400A Batt Disconnct 1500VDC SPST |
42 |
|
Таблицы данных |
HVBD | Bulk | Active | Battery Disconnect | SPST + SPDT | 2 | On-Off | 400A (DC) | - | 1500 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 68.60mm Dia | IP69 - Dust Tight, Water Resistant, Waterproof | With SPDT Auxiliary Contacts | -55°C ~ 85°C |
|
|
HVBD8AXR800A Batt Disconnect, 1500VDC, S |
41 |
|
Таблицы данных |
HVBD | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 800A (DC) | - | 1500 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 68.60mm Dia | IP69 - Dust Tight, Water Resistant, Waterproof | Bezel - Round, Red Knob | -55°C ~ 85°C |
|
|
HVBD6AAR600A Batt Disconnct 1500VDC SPST |
41 |
|
Таблицы данных |
HVBD | Bulk | Active | Battery Disconnect | SPST + SPDT | 2 | On-Off | 600A (DC) | - | 1500 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 68.60mm Dia | IP69 - Dust Tight, Water Resistant, Waterproof | With SPDT Auxiliary Contacts | -55°C ~ 85°C |
|

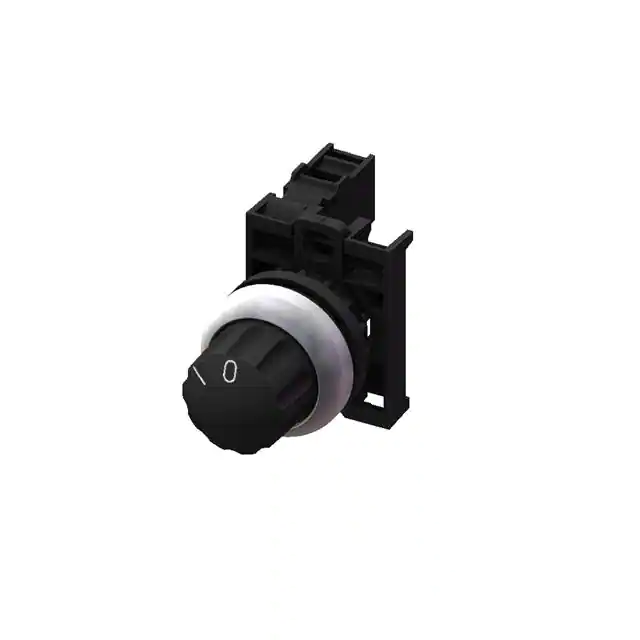

M22S-R20SF01SWITCH SELECT 2POS SPST 6A 230V |
750 |
|
Таблицы данных |
M22 | Bulk | Active | Standard | SPST | 2 | - | 6A (AC), 3A (DC) | 230 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|

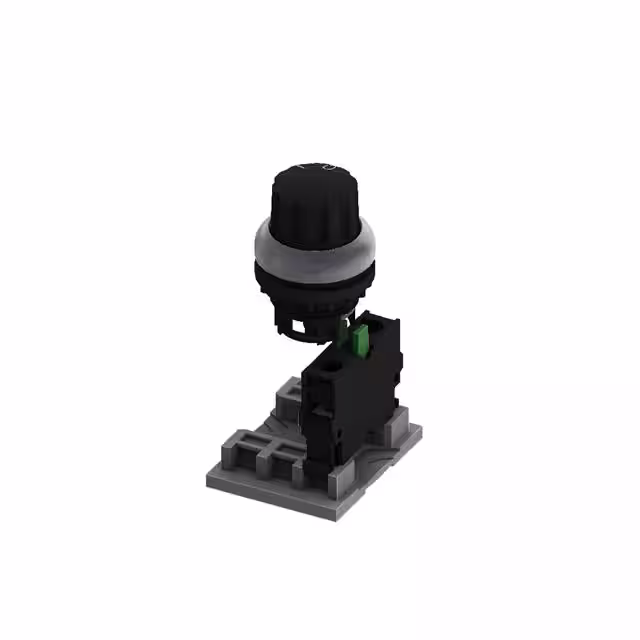

M22S-R20SB10SWITCH SELECT 2POS SPST 6A 230V |
750 |
|
Таблицы данных |
M22 | Bulk | Active | Standard | SPST | 2 | - | 6A (AC), 3A (DC) | 230 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
M22S-R22SB10SWITCH SELECT 2POS SPST 6A 230V |
750 |
|
Таблицы данных |
M22 | Bulk | Active | Standard | SPST | 2 | - | 6A (AC), 3A (DC) | 230 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
M22S-R22SB01SWITCH SELECT 2POS SPST 6A 230V |
750 |
|
Таблицы данных |
M22 | Bulk | Active | Standard | SPST | 2 | - | 6A (AC), 3A (DC) | 230 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
M22S-R20SF10SWITCH SELECT 2POS SPST 6A 230V |
750 |
|
Таблицы данных |
M22 | Bulk | Active | Standard | SPST | 2 | - | 6A (AC), 3A (DC) | 230 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
M22S-R32SF01SWITCH SELECT 3POS SPST 6A 230V |
750 |
|
Таблицы данных |
M22 | Bulk | Active | Standard | SPST | 3 | - | 6A (AC), 3A (DC) | 230 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
M22S-R32SF10SWITCH SELECT 3POS SPST 6A 230V |
750 |
|
Таблицы данных |
M22 | Bulk | Active | Standard | SPST | 3 | - | 6A (AC), 3A (DC) | 230 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
M22S-R30SF01SWITCH SELECT 3POS SPST 6A 230V |
750 |
|
Таблицы данных |
M22 | Bulk | Active | Standard | SPST | 3 | - | 6A (AC), 3A (DC) | 230 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
M22S-R30SB01SWITCH SELECT 3POS SPST 6A 230V |
750 |
|
Таблицы данных |
M22 | Bulk | Active | Standard | SPST | 3 | - | 6A (AC), 3A (DC) | 230 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
M22S-R32SB10SWITCH SELECT 3POS SPST 6A 230V |
750 |
|
Таблицы данных |
M22 | Bulk | Active | Standard | SPST | 3 | - | 6A (AC), 3A (DC) | 230 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
