БОМ
Селекторные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Схема | Количество положений | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип крепления | Тип вывода | Размеры выреза панели | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W22S3-HW-10/10SWITCH SELECT 3POS DPST 10A 72V |
155 |
|
- |
22 | Bag | Active | Standard | DPST-NO | 3 | On-Off-Off, Off-Off-On | 10A (AC), 2.5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.50mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
|
W22S2-HW-20SWITCH SELECT 2POS DPST 10A 72V |
138 |
|
Таблицы данных |
22 | Bag | Active | Standard | DPST-NO | 2 | Off-On | 10A (AC), 2.5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.50mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
NS22-SL21A00SWITCH SELECT 2POS SPST 3A 250V |
920 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | SPST-NO | 2 | Off-On | 3A (AC), 270mA (DC) | 250 V | 250 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
NS22-S21A01BSWITCH SELECT 2POS DPST 3A 250V |
990 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | DPST-NO/NC | 2 | Off-On | 3A (AC), 270mA (DC) | 250 V | 250 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
NS22-SL21A01BSWITCH SELECT 2POS DPST 3A 250V |
990 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | DPST-NO/NC | 2 | Off-On | 3A (AC), 270mA (DC) | 250 V | 250 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
NS22-S21A01ASWITCH SELECT 2POS DPST 3A 250V |
980 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | DPST-NO | 2 | Off-On | 3A (AC), 270mA (DC) | 250 V | 250 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
NS22-S31A01BSWITCH SELECT 3POS DPST 3A 250V |
980 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | DPST-NO/NC | 3 | Off-On-Off | 3A (AC), 270mA (DC) | 250 V | 250 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
NS22-S31A01ASWITCH SELECT 3POS DPST 3A 250V |
970 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | DPST-NO | 3 | On-Off-On | 3A (AC), 270mA (DC) | 250 V | 250 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|

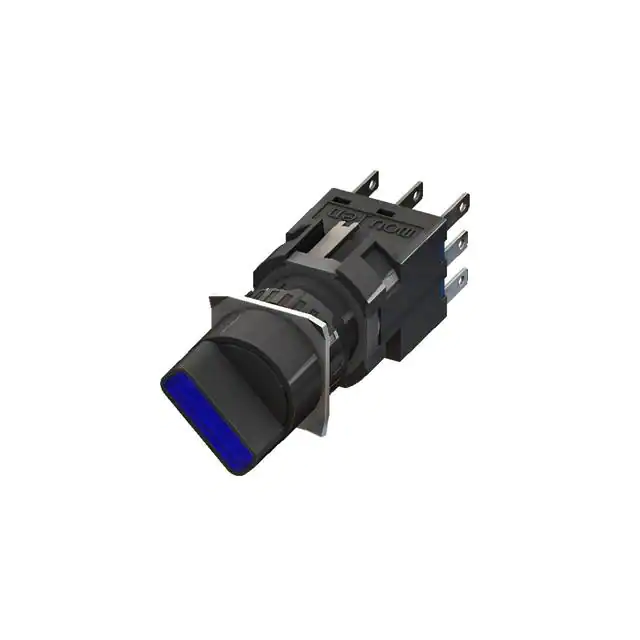

M6S-A20S1-12EBSWITCH SELECT 2POS SPDT 2A 250V |
2,500 |
|
Таблицы данных |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, Blue | 12 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|

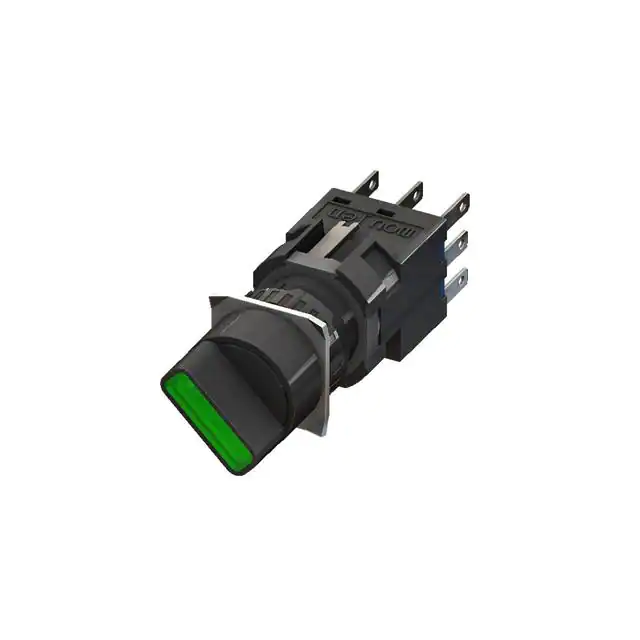

M6S-A20S1-06EGSWITCH SELECT 2POS SPDT 2A 250V |
2,500 |
|
Таблицы данных |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, Green | 6 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
|
M6S-A20S2-110GSWITCH SELECT 2POS DPDT 2A 250V |
2,500 |
|
Таблицы данных |
M6 | Retail Package | Active | Standard | DPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | Neon, Green | 110 VAC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|

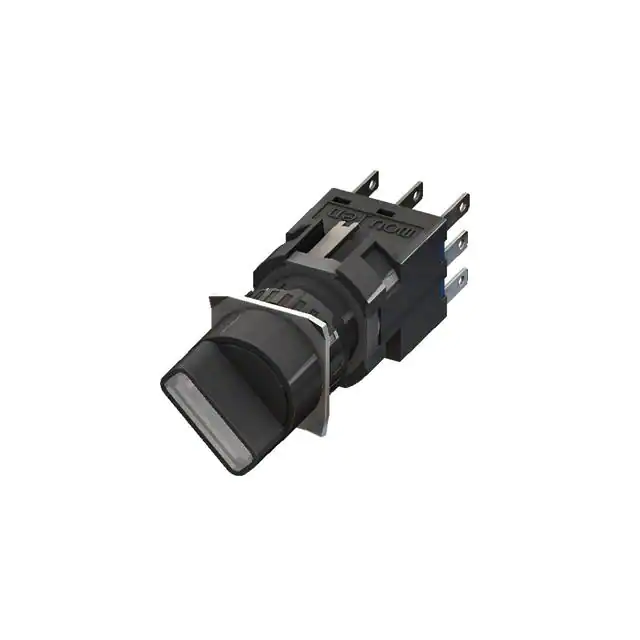

M6S-A20S2-24EWSWITCH SELECT 2POS DPDT 2A 250V |
2,500 |
|
Таблицы данных |
M6 | Retail Package | Active | Standard | DPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, White | 24 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
|
M6S-A30S2-WSWITCH SELECT 3POS SPDT 2A 250V |
2,500 |
|
Таблицы данных |
M6 | Retail Package | Active | Standard | SPDT | 3 | On-On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
|
M6S-A20S2-110BSWITCH SELECT 2POS DPDT 2A 250V |
2,500 |
|
Таблицы данных |
M6 | Retail Package | Active | Standard | DPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | Neon, Blue | 110 VAC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
|
NS22-S3R-L3CG1A1B22mm SELECTOR SWITCH |
1,990 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | DPST-NO/NC | 3 | On-Off-Mom | 3A (AC/DC) | 250 V | 24 V | Illuminated | LED, Green | 24 VDC | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Black Knob | -40°C ~ 70°C |
|
|
NS22-S2-L3CG1A1B22mm SELECTOR SWITCH |
1,990 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 3A (AC/DC) | 250 V | 24 V | Illuminated | LED, Green | 24 VDC | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Black Knob | -40°C ~ 70°C |
|
|
NS22-SL2-L2CR1A1B22mm SELECTOR SWITCH |
1,990 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 3A (AC/DC) | 250 V | 24 V | Illuminated | LED, Red | 12 VDC | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Black Knob | -40°C ~ 70°C |
|
|
NS22-SL2-L1CR1A1B22mm SELECTOR SWITCH |
1,980 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 3A (AC/DC) | 250 V | 24 V | Illuminated | LED, Red | 6 VDC | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Black Knob | -40°C ~ 70°C |
|
|
NS22-SA2-L1CB1A1B22mm SELECTOR SWITCH |
1,990 |
|
Таблицы данных |
NS22 | Bulk | Active | Standard | DPST-NO/NC | 2 | On-Mom, Off-Mom | 3A (AC/DC) | 250 V | 24 V | Illuminated | LED, Blue | 6 VDC | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Black Knob | -40°C ~ 70°C |
|
M6S-B20S1-GSWITCH SELECT 2POS SPDT 2A 250V |
2,500 |
|
Таблицы данных |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
