Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS16-6N-AT432SWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Таблицы данных |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 6 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Knob | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 81.50mm |
|
|
MRA403SWITCH ROTARY 2-3POS 250MA 125V |
0 |
|
Таблицы данных |
MR | Box | Obsolete | 2 ~ 3 | Adjustable | 1 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Flatted (3.17mm Dia) | 10.00mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
PS1N-AT432SWITCH ROTARY 2-11POS 30A 125V |
0 |
|
Таблицы данных |
PS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC) | 125 V | - | Knob | 15.00mm | 30° | Silver Alloy | - | Panel Mount | Screw Terminal | - | 46.50mm |
|

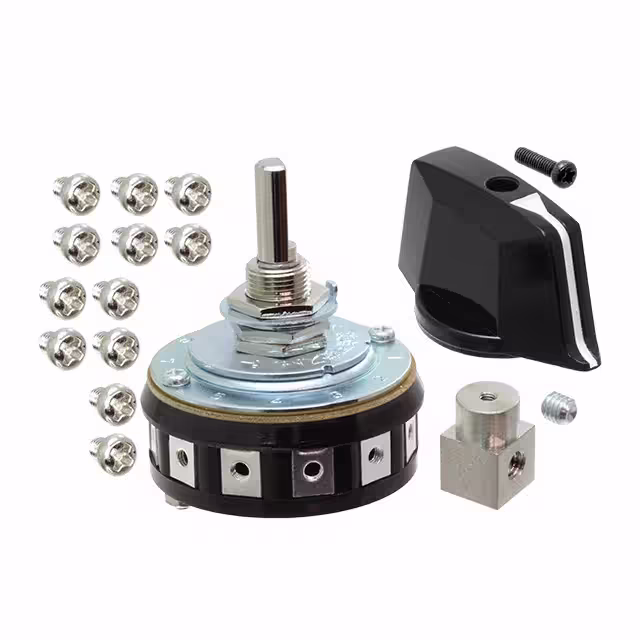

TS1N-AT432SWITCH ROTARY 2-11POS 6A 125V |
0 |
|
Таблицы данных |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 6A (AC) | 125 V | - | Knob | 15.60mm | 30° | Phosphor Bronze | - | Panel Mount | Screw Terminal | - | 22.00mm |
|
|
TS3N-AT432SWITCH ROTARY 2-11POS 6A 125V |
0 |
|
Таблицы данных |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 6A (AC) | 125 V | - | Knob | 15.60mm | 30° | Phosphor Bronze | - | Panel Mount | Screw Terminal | - | 46.00mm |
|
|
TS5N-AT432SWITCH ROTARY 2-11POS 6A 125V |
0 |
|
Таблицы данных |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 5 | 1 | SP11T | Non-Shorting (BBM) | 6A (AC) | 125 V | - | Knob | 15.60mm | 30° | Phosphor Bronze | - | Panel Mount | Screw Terminal | - | 70.00mm |
|
|
435097-2SWITCH ROTARY 10POS W/ THUMBWHL |
0 |
|
Таблицы данных |
6000 | Box | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | - | - | - | Thumbwheel | Flush | 36° | Phosphor Bronze | Gold | Through Hole | PC Pin | - | - |
|
435128-1SWITCH ROTARY 10POS 125MA 115V |
0 |
|
Таблицы данных |
6000 | Bag | Active | 10 | Continuous | 1 | - | BCD | Non-Shorting (BBM) | 125mA (AC) | 115 V | - | Thumbwheel | Flush | 36° | Phosphor Bronze | Gold | Through Hole | PC Pin | - | - |
|
|
57M22-10-1-16N-CSWITCH ROTARY 16POS 250MA 115V |
0 |
|
Таблицы данных |
57 | Bulk | Active | 16 | Continuous | 10 | 1 | SP16T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 22.5° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 105.74mm |
|
|
42UD36-02-2-AJNSWITCH ROTARY 2-5POS 1A 125V |
0 |
|
Таблицы данных |
42 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC) | 125 V | - | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
54UD30-01-2-AJNSWITCH ROTARY 2-6POS 1A 125V |
0 |
|
Таблицы данных |
54 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC) | 125 V | - | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.74mm |
|
|
56BSDP30-01-2-AJNSWITCH ROTARY 2-6POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
|
71ADF30-07-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Таблицы данных |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 7 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 59.66mm |
|
|
55SD30-01-1-AJNSWITCH ROTARY 2-12POS 200MA 115V |
0 |
|
Таблицы данных |
55 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 16.13mm |
|
|
55SD36-01-1-AJNSWITCH ROTARY 2-10POS 200MA 115V |
0 |
|
Таблицы данных |
55 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 16.13mm |
|
|
71ED36-01-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
0 |
|
Таблицы данных |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Round (4mm Dia) | 17.00mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|

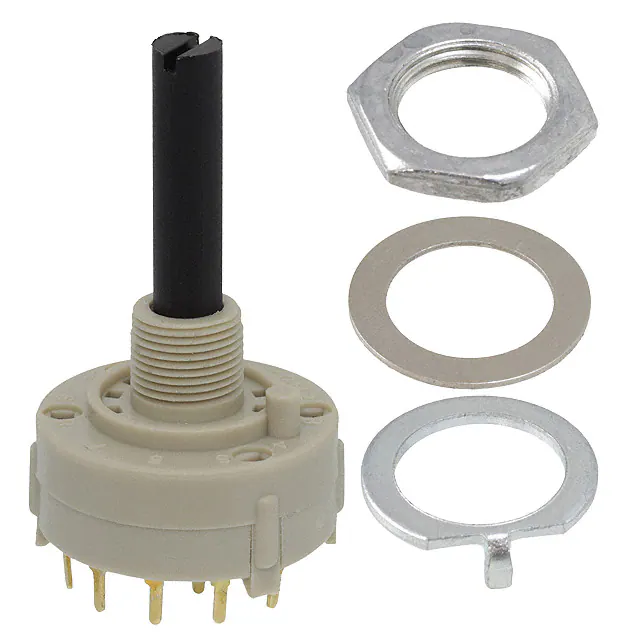

KC15B02NPFB31.5MMSWITCH ROTARY 5POS 350MA 125V |
0 |
|
- |
KC | Bulk | Obsolete | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia), Slotted | 23.50mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
|

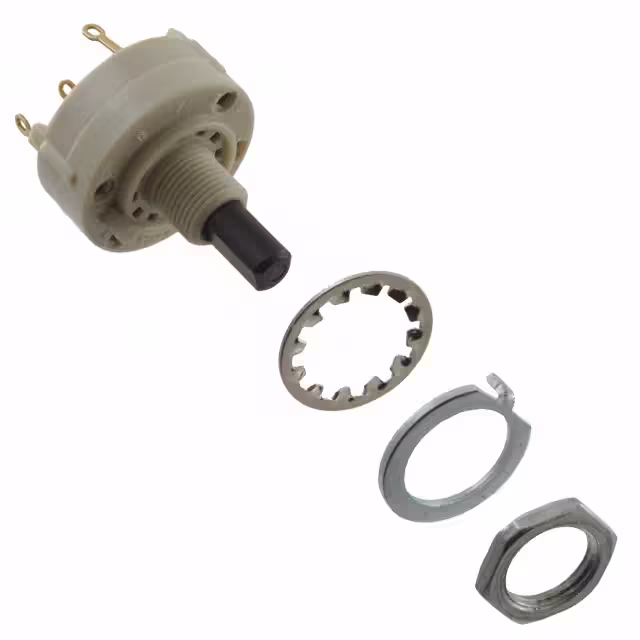

KC56A10.001NLFSWITCH ROTARY 3POS 350MA 125V |
0 |
|
Таблицы данных |
KC | Bulk | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 10.00mm | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 18.50mm |
|

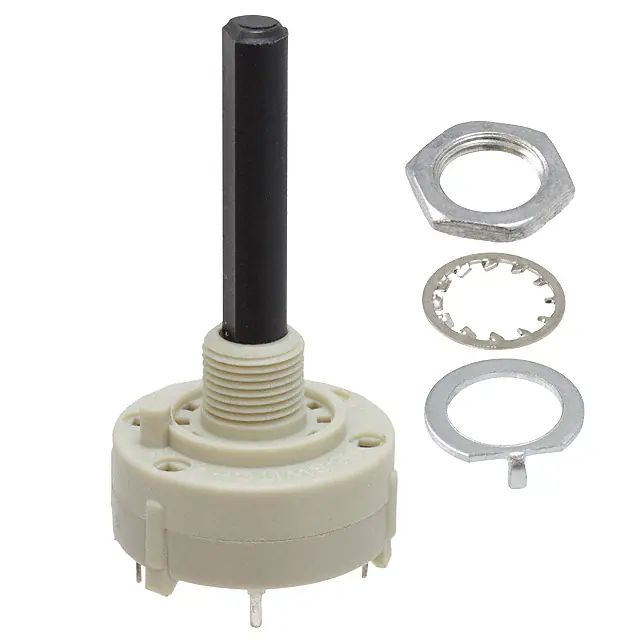

KC58A30.001NPSSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Таблицы данных |
KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 90° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
RTAC2DW16M25NSSWITCH ROTARY 16POS 150MA 60V |
0 |
|
Таблицы данных |
RTA | Bag | Obsolete | 16 | Continuous | 1 | - | BCD | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (6mm Dia), Slotted | 25.00mm | 22.5° | Brass | Silver | Panel Mount | Solder Lug | - | 18.70mm |
