Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A40303RNCQKSWITCH ROTARY 3POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
PLRT531SWITCH ROTARY 5POS 500MA 24V |
0 |
|
- |
PLRT | Tube | Obsolete | 5 | Fixed | 1 | 1 | SP5T | Not Specified | 500mA (AC), 300mA (DC) | 24 V | 30 V | Flatted (4.2mm Dia) | 7.75mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.23mm |
|
|
PLRT842SWITCH ROTARY 8POS 500MA 24V |
0 |
|
- |
PLRT | Tube | Obsolete | 8 | Continuous | 1 | 1 | SP8T | Not Specified | 500mA (AC), 300mA (DC) | 24 V | 30 V | Flatted (4.2mm Dia) | 7.75mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.23mm |
|
|
PLRT833SWITCH ROTARY 8POS 500MA 24V |
0 |
|
- |
PLRT | Tube | Obsolete | 8 | Fixed | 1 | 1 | SP8T | Not Specified | 500mA (AC), 300mA (DC) | 24 V | 30 V | Flatted (4.2mm Dia) | 7.75mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.23mm |
|
|
PLRT331SWITCH ROTARY 3POS 500MA 24V |
0 |
|
- |
PLRT | Tube | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Not Specified | 500mA (AC), 300mA (DC) | 24 V | 30 V | Flatted (4.2mm Dia) | 7.75mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.23mm |
|
|
PLRT431SWITCH ROTARY 4POS 500MA 24V |
0 |
|
- |
PLRT | Tube | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Not Specified | 500mA (AC), 300mA (DC) | 24 V | 30 V | Flatted (4.2mm Dia) | 7.75mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.23mm |
|
|
PLR3723SWITCH ROTARY 12POS 150MA 250V |
0 |
|
- |
PLR | Tube | Obsolete | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 250 V | 250 V | Round (5.9mm Dia) | 42.00mm | 30° | Brass | Gold | Panel Mount | Solder Lug | - | 14.10mm |
|
|
PLR3339SWITCH ROTARY 6POS 150MA 250V |
0 |
|
- |
PLR | Tube | Obsolete | 6 | Continuous | 1 | 2 | DP6T | Shorting (MBB) | 150mA (AC/DC) | 250 V | 250 V | Round (5.9mm Dia) | 42.00mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
|
|
PLR3281SWITCH ROTARY 4POS 150MA 250V |
0 |
|
- |
PLR | Tube | Obsolete | 4 | Fixed | 1 | 3 | 3P4T | Shorting (MBB) | 150mA (AC/DC) | 250 V | 250 V | Round (5.9mm Dia) | 42.00mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
|
|
PLR3278SWITCH ROTARY 12POS 150MA 250V |
0 |
|
- |
PLR | Tube | Obsolete | 12 | Continuous | 1 | 1 | SP12T | Shorting (MBB) | 150mA (AC/DC) | 250 V | 250 V | Round (5.9mm Dia) | 42.00mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
|
|
PLR3251SWITCH ROTARY 4POS 150MA 250V |
0 |
|
- |
PLR | Tube | Obsolete | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 150mA (AC/DC) | 250 V | 250 V | Round (5.9mm Dia) | 42.00mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.10mm |
|
|
PLR3269SWITCH ROTARY 12POS 150MA 250V |
0 |
|
- |
PLR | Tube | Obsolete | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 250 V | 250 V | Round (5.9mm Dia) | 42.00mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
|
|
PLR3262SWITCH ROTARY 3POS 150MA 250V |
0 |
|
- |
PLR | Tube | Obsolete | 3 | Fixed | 1 | 4 | 4P3T | Shorting (MBB) | 150mA (AC/DC) | 250 V | 250 V | Round (5.9mm Dia) | 42.00mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.10mm |
|
|
PLR3249SWITCH ROTARY 12POS 150MA 250V |
0 |
|
- |
PLR | Tube | Obsolete | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 250 V | 250 V | Round (5.9mm Dia) | 42.00mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.10mm |
|
|
PLR3250SWITCH ROTARY 6POS 150MA 250V |
0 |
|
- |
PLR | Tube | Obsolete | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 150mA (AC/DC) | 250 V | 250 V | Round (5.9mm Dia) | 42.00mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.10mm |
|
|
KC53A10.001NLSSWITCH ROTARY 2POS 350MA 125V |
0 |
|
Таблицы данных |
KC | Bulk | Obsolete | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 10.00mm | 60° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
|
KC55A30.001NLSSWITCH ROTARY 3POS 350MA 125V |
0 |
|
Таблицы данных |
KC | Bulk | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 60° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
|
KC57B10.001NLSSWITCH ROTARY 4POS 350MA 125V |
0 |
|
- |
KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 10.00mm | 60° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
|
KC58A13.001NPSNOSTOPSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Таблицы данных |
KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 90° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

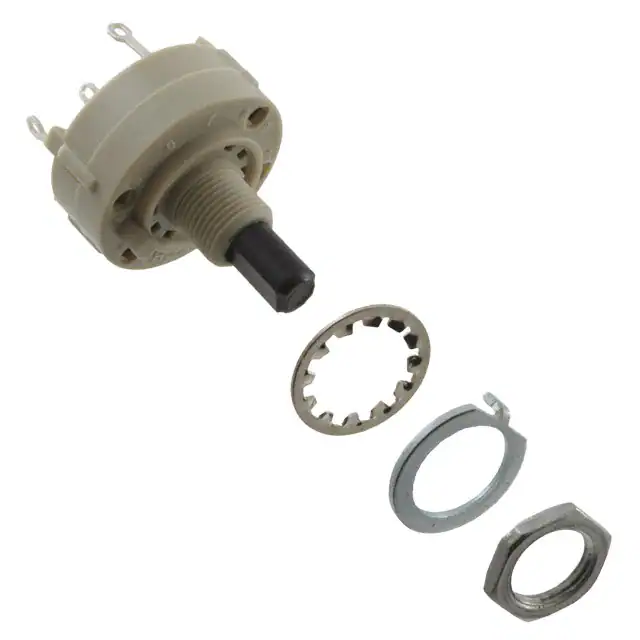

KC58A9.501NLSSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Таблицы данных |
KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
