БОМ
Поворотные потенциометры, реостаты
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
157B502MXPOT 5K OHM 1W PLASTIC LINEAR |
100 |
|
Таблицы данных |
157 | Bulk | Active | 5k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
7286R5KL.25POT 5K OHM 2W WIREWOUND LINEAR |
84 |
|
Таблицы данных |
7280 | Bulk | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
7286R1KL.25POT 1K OHM 2W WIREWOUND LINEAR |
71 |
|
Таблицы данных |
7280 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

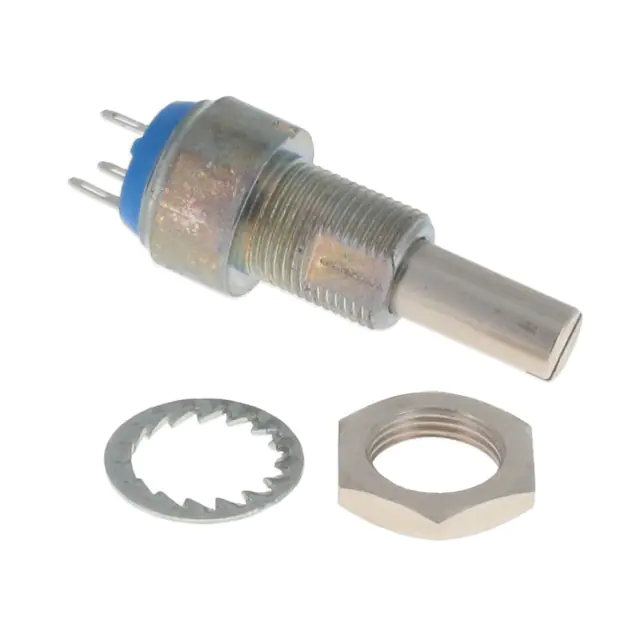

P13LFL106MAB10POT 10M OHM 0.01W CERMET LINEAR |
22 |
|
Таблицы данных |
P13 | Box | Active | 10M | ±20% | 0.01W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
534B1103JLPOT 10K OHM 2W WIREWOUND LINEAR |
15 |
|
Таблицы данных |
534 | Box | Active | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
PE30L0FL102MABPOT 1K OHM 3W CERMET LINEAR |
25 |
|
Таблицы данных |
PE30 | Bulk | Active | 1k | ±20% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
MW22B-3-10KPOT 10K 3-TURN 2W WIRE LINEAR |
20 |
|
Таблицы данных |
MW22B | Bulk | Active | 10k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.820" (20.83mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3540S-1-104LPOT 100K OHM 2W WIREWOUND LINEAR |
59 |
|
Таблицы данных |
3540 | Tray | Active | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

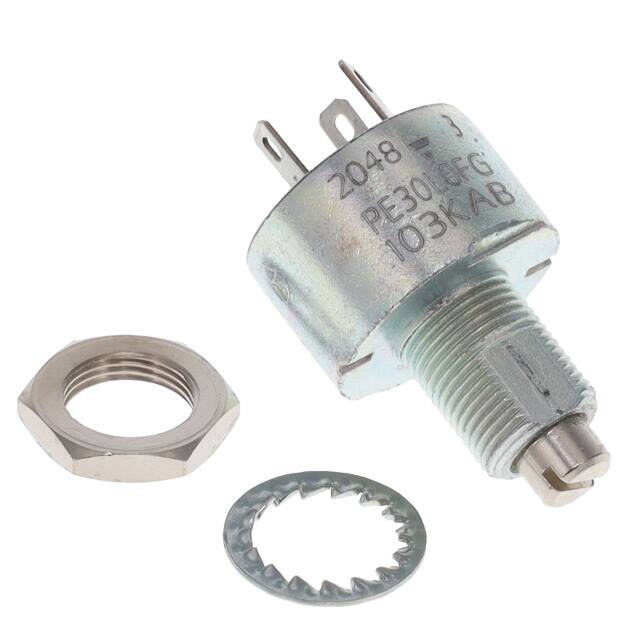

PE30L0FG103KABPOT 10K OHM 3W CERMET LINEAR |
22 |
|
Таблицы данных |
PE30 | Box | Active | 10k | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

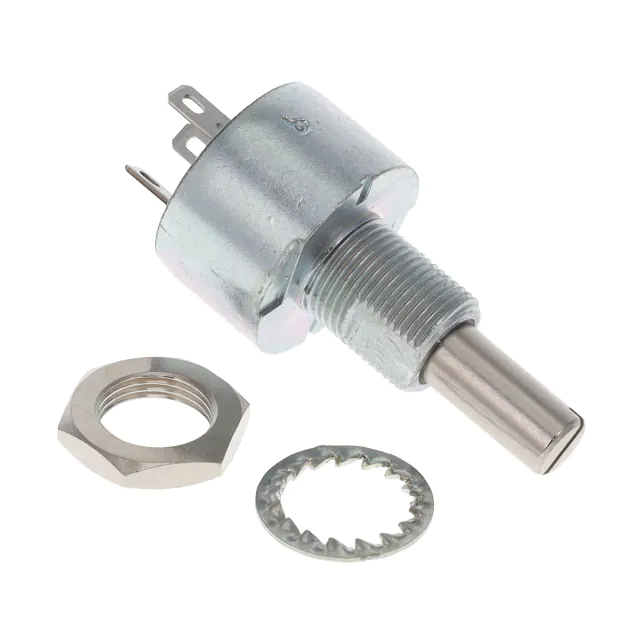

PE30L0FL101KABPOT 100 OHM 3W CERMET LINEAR |
36 |
|
Таблицы данных |
PE30 | Box | Active | 100 | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|

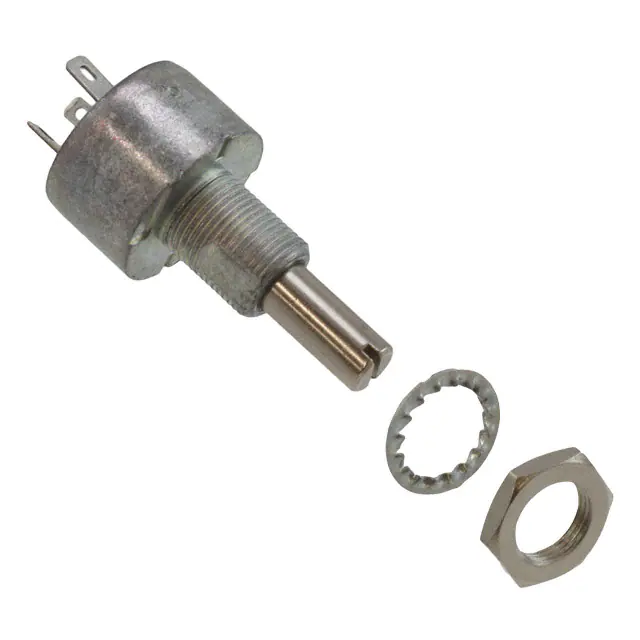

PE30L0FL103KABPOT 10K OHM 3W CERMET LINEAR |
27 |
|
Таблицы данных |
PE30 | Bulk | Active | 10k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
534B1502JLPOT 5K OHM 2W WIREWOUND LINEAR |
35 |
|
Таблицы данных |
534 | Box | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
534B1204JCPOT 200K OHM 2W WIREWOUND LINEAR |
61 |
|
Таблицы данных |
534 | Box | Active | 200k | ±5% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3590S-1-503LPOT 50K OHM 2W WIREWOUND LINEAR |
75 |
|
Таблицы данных |
3590 | Bulk | Active | 50k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
6657S-1-103POT 10K OHM 1.5W PLASTIC LINEAR |
24 |
|
Таблицы данных |
6657 | Bulk | Active | 10k | ±10% | 1.5W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
536B103POT 10K OHM 2W WIREWOUND LINEAR |
15 |
|
Таблицы данных |
536 | Bulk | Active | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
132B20103POT 10K OHM 2.75W WIREWOUND LIN |
25 |
|
Таблицы данных |
132 | Bulk | Active | 10k | ±3% | 2.75W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 340° | Wirewound | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
XB5AD912R10KPOT 10K OHM 1W CERMET LINEAR |
11 |
|
Таблицы данных |
XB5 | Box | Active | 10k | - | 1W | None | - | - | Linear | 1 | Top Adjustment | - | - | Cermet | PC Pins | Round | 1.187" (30.15mm) | 0.236" (6.00mm) | - | Through Hole |
|
6537S-1-103POT 10K OHM 1W PLASTIC LINEAR |
22 |
|
Таблицы данных |
6537 | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
3500S-2-203LPOT 20K OHM 2W WIREWOUND LINEAR |
6 |
|
Таблицы данных |
3500 | Bulk | Active | 20k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
