Поворотные потенциометры, реостаты
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3590P-2-103LPOT 10K OHM 2W WIREWOUND LINEAR |
59 |
|
Таблицы данных |
3590 | Bulk | Active | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
M-22E10 5KPOT 5K OHM 2W WIREWOUND LINEAR |
76 |
|
Таблицы данных |
M-22 | Bulk | Active | 5k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
RV4LAYSA104APOT 100K OHM 2W CARBON LINEAR |
85 |
|
Таблицы данных |
RV4 | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
.jpg)
|
P11S1V0FLSY00103KLPOT 10K OHM 1/2W CERMET LOG |
20 |
|
Таблицы данных |
P11S | Box | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
3547S-1AA-202APOT 2K OHM 1W WIREWOUND LINEAR |
23 |
|
Таблицы данных |
3547 | Tray | Active | 2k | ±3% | 1W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3590S-1-104LPOT 100K OHM 2W WIREWOUND LINEAR |
11 |
|
Таблицы данных |
3590 | Bulk | Active | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
357B0502MAB251S22POT 5K OHM 1W PLASTIC LINEAR |
70 |
|
Таблицы данных |
357 | Bulk | Active | 5k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3590S-2-503LPOT 50K OHM 2W WIREWOUND LINEAR |
49 |
|
Таблицы данных |
3590 | Bulk | Active | 50k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3590S-6-502LPOT 5K OHM 2W WIREWOUND LINEAR |
41 |
|
Таблицы данных |
3590 | Bulk | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | M9 x 0.375 | Panel Mount |
|
RV6NAYSD252APOT 2.5K OHM 1/2W CARBON LINEAR |
70 |
|
Таблицы данных |
RV6 | Bulk | Active | 2.5k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
534B1201JCPOT 200 OHM 2W WIREWOUND LINEAR |
40 |
|
Таблицы данных |
534 | Bulk | Active | 200 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
534B1501JCPOT 500 OHM 2W WIREWOUND LINEAR |
28 |
|
Таблицы данных |
534 | Bulk | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
534B1202JCPOT 2K OHM 2W WIREWOUND LINEAR |
22 |
|
Таблицы данных |
534 | Bulk | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
534B1203JCPOT 20K OHM 2W WIREWOUND LINEAR |
9 |
|
Таблицы данных |
534 | Bulk | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

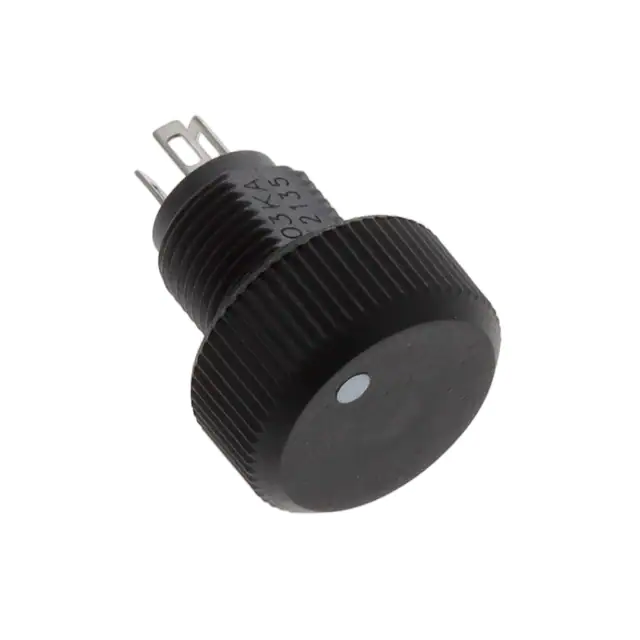

P16NP103KAB15POT 10K OHM 1W CERMET LINEAR |
86 |
|
Таблицы данных |
P16 | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
3590S-4-103LPOT 10K OHM 2W WIREWOUND LINEAR |
85 |
|
Таблицы данных |
3590 | Bulk | Active | 10k | ±5% | 2W | None | 10.0 | Sealed | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590S-4-502LPOT 5K OHM 2W WIREWOUND LINEAR |
45 |
|
Таблицы данных |
3590 | Bulk | Active | 5k | ±5% | 2W | None | 10.0 | Sealed | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

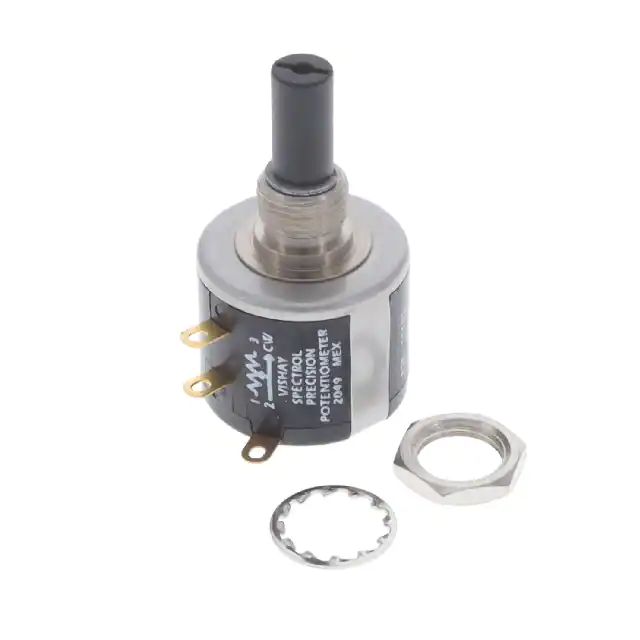

536B102POT 1K OHM 2W WIREWOUND LINEAR |
57 |
|
Таблицы данных |
536 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
RK27112A0A16POT 100K OHM 1/20W LOGARITHMIC |
71 |
|
Таблицы данных |
RK271 | Bulk | Active | 100k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 300° | - | PC Pins | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | M8 x 0.75 | Panel Mount |
|
|
RK27112A00AKPOT 100K OHM 1/20W LOGARITHMIC |
69 |
|
Таблицы данных |
RK271 | Bulk | Active | 100k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 300° | - | PC Pins | Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | M8 x 0.75 | Panel Mount |
