Поворотные потенциометры, реостаты
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

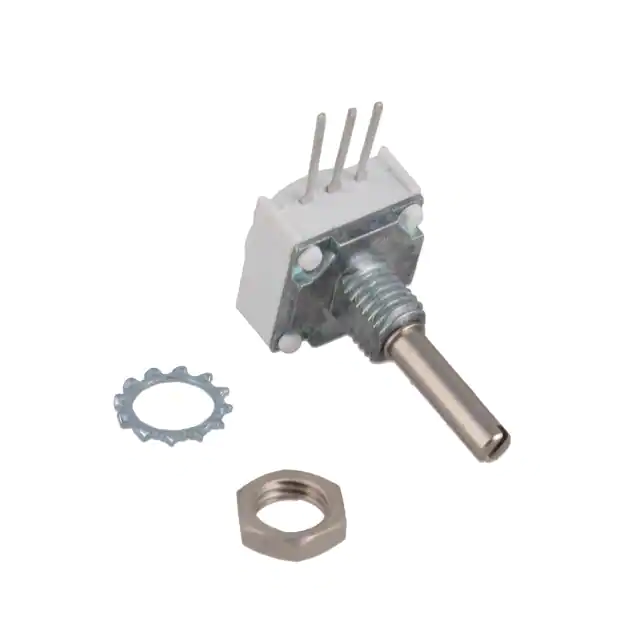

14910A0BHSX10102KAPOT 1K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
149 | Box | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Through Hole |
|
14810A0BHSX10502KAPOT 5K OHM 1/2W PLASTIC LINEAR |
0 |
|
Таблицы данных |
148 | Box | Active | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3500S-2-202LPOT 2K OHM 2W WIREWOUND LINEAR |
0 |
|
Таблицы данных |
3500 | Bulk | Active | 2k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
14910F0GJSX10504KAPOT 500K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
149 | Box | Active | 500k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
14910F0GJSX10252KAPOT 2.5K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
149 | Box | Active | 2.5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
8143R10KL.25POT 10K OHM 2W HYBRID LINEAR |
0 |
|
Таблицы данных |
8140 | Bulk | Active | 10k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Hybrid | Solder Turret | Round | 0.375" (9.53mm) | 0.125" (3.18mm) | - | Servo Mount |
|

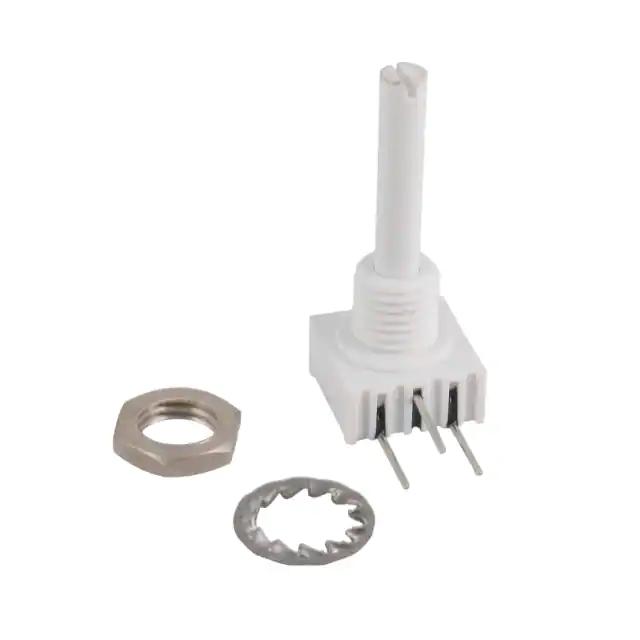

P10XXAI204KB30POT 200K OHM 0.28W CERMET LINEAR |
0 |
|
Таблицы данных |
P10 | Box | Active | 200k | ±10% | 0.28W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|

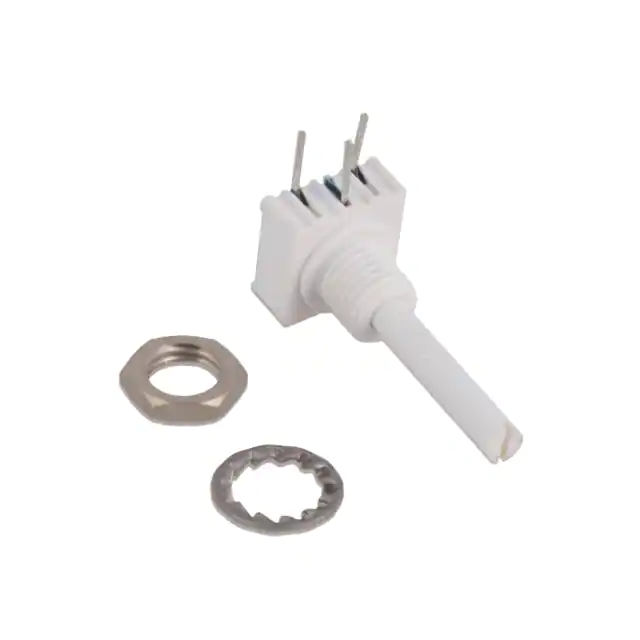

P10XXAI102KB30POT 1K OHM 1/2W CERMET LINEAR |
0 |
|
Таблицы данных |
P10 | Box | Active | 1k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|

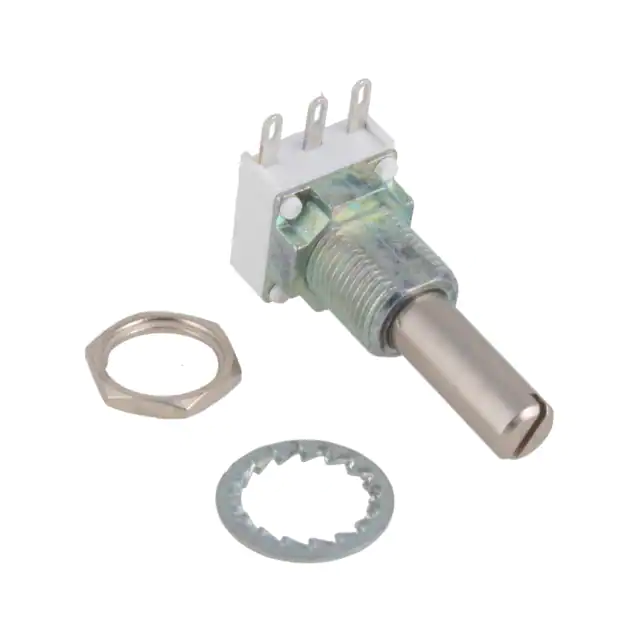

P11S1V0FLSY00102KLPOT 1K OHM 1/2W CERMET LOG |
0 |
|
Таблицы данных |
P11S | Box | Active | 1k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
249FGJSPXB25103KAPOT 10K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
249 | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8 | Through Hole |
|
|
249BBHS0XB25252KAPOT 2.5K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
249 | Box | Active | 2.5k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
P13SMNFLS472MAPOT 4.7K OHM 1.5W CERMET LINEAR |
0 |
|
Таблицы данных |
P13SM | Bulk | Active | 4.7k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

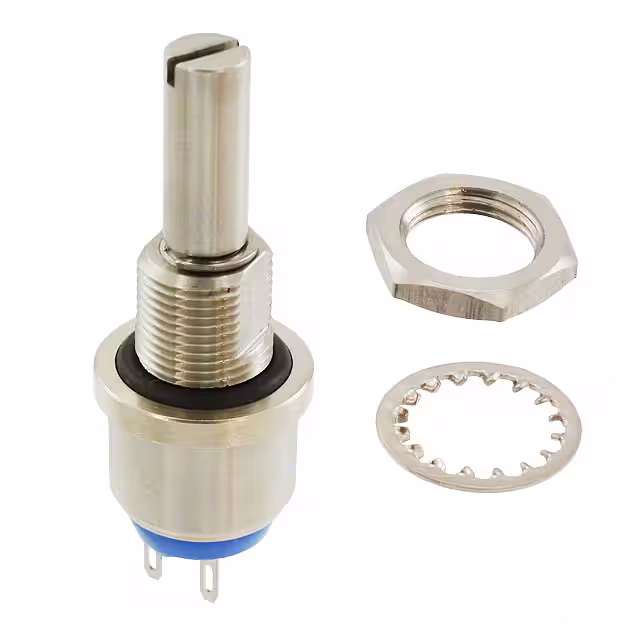

P13SMNFLS103MAPOT 10K OHM 1.5W CERMET LINEAR |
0 |
|
Таблицы данных |
P13SM | Bulk | Active | 10k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
RES125EPOT 125 OHM 12.5W WIREWOUND LIN |
0 |
|
Таблицы данных |
E | Bulk | Active | 125 | ±10% | 12.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
RES750EPOT 750 OHM 12.5W WIREWOUND LIN |
0 |
|
Таблицы данных |
E | Bulk | Active | 750 | ±10% | 12.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
RES8R0EPOT 8 OHM 12.5W WIREWOUND LINEAR |
0 |
|
Таблицы данных |
E | Bulk | Active | 8 | ±10% | 12.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3400S-1-203LPOT 20K OHM 5W WIREWOUND LINEAR |
0 |
|
Таблицы данных |
3400 | Bulk | Active | 20k | ±3% | 5W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
6534S-1-203POT 20K OHM 1W PLASTIC LINEAR |
0 |
|
Таблицы данных |
6534 | Tray | Active | 20k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
AR1KL.25POT 1K OHM 5W WIREWOUND LINEAR |
0 |
|
Таблицы данных |
A | Bulk | Active | 1k | ±3% | 5W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Round | 0.811" (20.60mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
CR10KL.5POT 10K OHM 3W WIREWOUND LINEAR |
0 |
|
Таблицы данных |
C | Bulk | Active | 10k | ±3% | 3W | None | 3.0 | - | Linear | 1 | User Defined | 130ppm/°C | 1080° | Wirewound | Solder Lug | Round | 0.811" (20.60mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
