Поворотные потенциометры, реостаты
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
248BBHS0XB25104MAPOT 100K OHM 1/2W PLASTIC LINEAR |
0 |
|
Таблицы данных |
248 | Box | Active | 100k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 295° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4 | Panel Mount |
.jpg)
|
P11S1V0FLSY00102KAPOT 1K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
P11S | Bulk | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S1V0FLSY00503KAPOT 50K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
P11S | Bulk | Active | 50k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

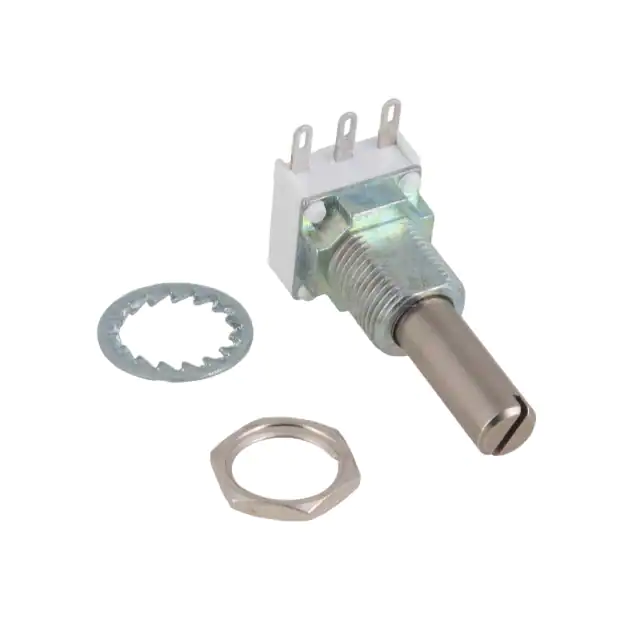

P11S1V0FLSY00504KAPOT 500K OHM 1/4W CERMET LINEAR |
0 |
|
Таблицы данных |
P11S | Box | Active | 500k | ±10% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|

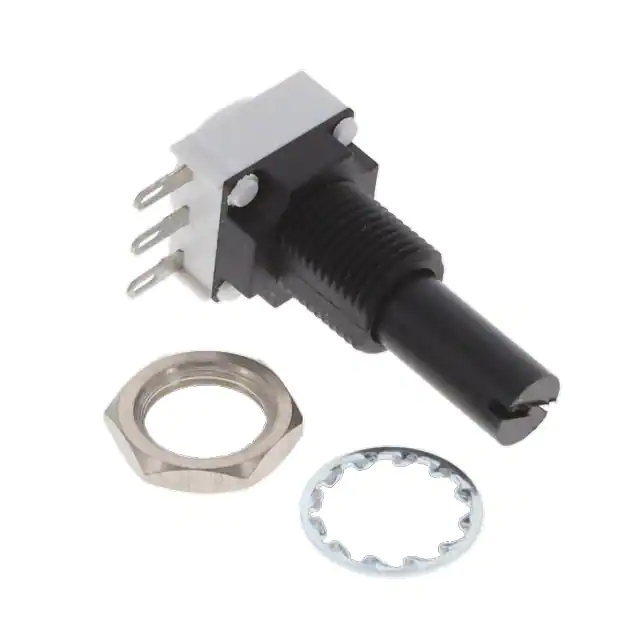

P11P1F0GJSY00103KAPOT 10K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
P11P | Box | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

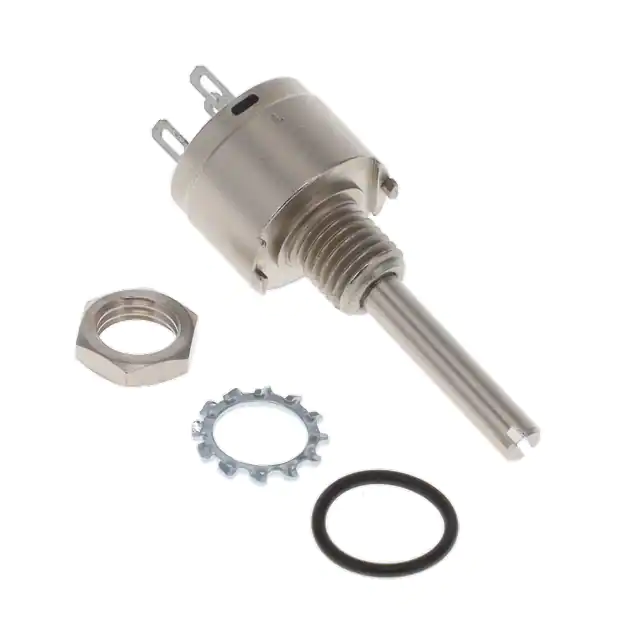

PRV6SAABJYB25503KLPOT 50K OHM 1.5W CERMET LOG |
0 |
|
Таблицы данных |
PRV6 | Box | Active | 50k | ±10% | 1.5W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
14910F0GJSX10254KAPOT 250K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
149 | Box | Active | 250k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
95A1D-Z28-EA0/302LPOT 500K OHM 1/4W PLASTIC LOG |
0 |
|
Таблицы данных |
Pro Audio 95 Premium | Bulk | Active | 500k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Logarithmic | 1 | User Defined | ±1000ppm/°C | 300° | Conductive Plastic | Solder Lug | Knurled and Slotted | 0.685" (17.40mm) | 0.235" (5.97mm) | 3/8-32 | Panel Mount |
|
284TBCF254A26A1POT 250K OHM 1/4W PLASTIC LINEAR |
0 |
|
Таблицы данных |
284 | Tray | Active | 250k | ±10% | 0.25W, 1/4W | None | 1.0 | Long Life | Linear | 1 | User Defined | - | 250° | Conductive Plastic | Solder Lug | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
14910F0GJSX10104KAPOT 100K OHM 1W CERMET LINEAR |
5 |
|
Таблицы данных |
149 | Box | Active | 100k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

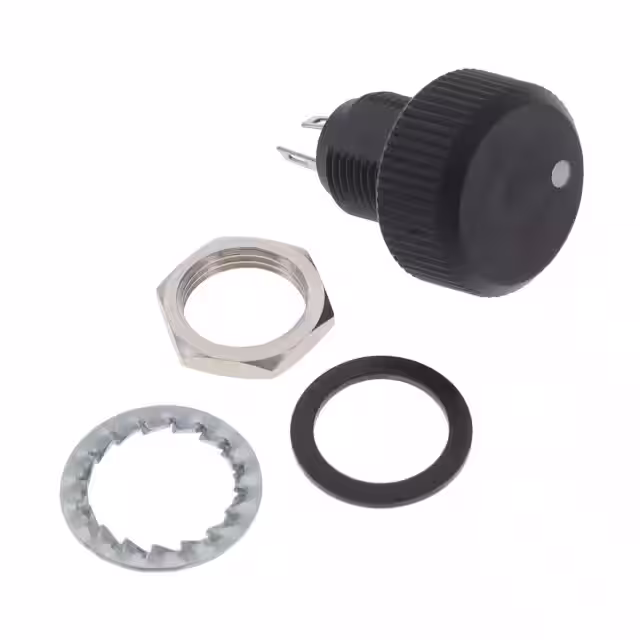

P16NP102KAB15POT 1K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
P16 | Box | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
53CAD-E24-B15LPOT 10K OHM 1/2W PLASTIC LINEAR |
0 |
|
Таблицы данных |
Pro Audio 53 | Bulk | Active | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±1000ppm/°C | 290° | Conductive Plastic | Solder Lug | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
P16SNP472MAB15POT 4.7K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
P16S | Box | Active | 4.7k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

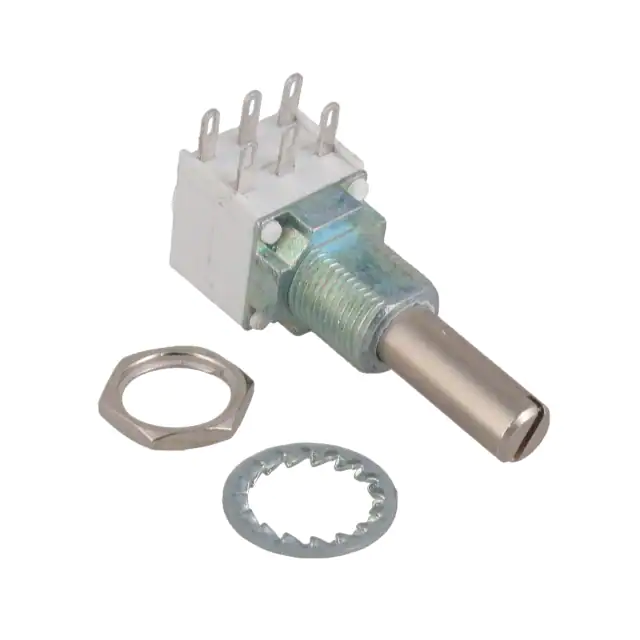

P11L2V0FLSY00102KAPOT 1K OHM 1/10W CERMET LINEAR |
0 |
|
Таблицы данных |
P11L | Box | Active | 1k | ±10% | 0.1W, 1/10W | None | 1.0 | Long Life | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

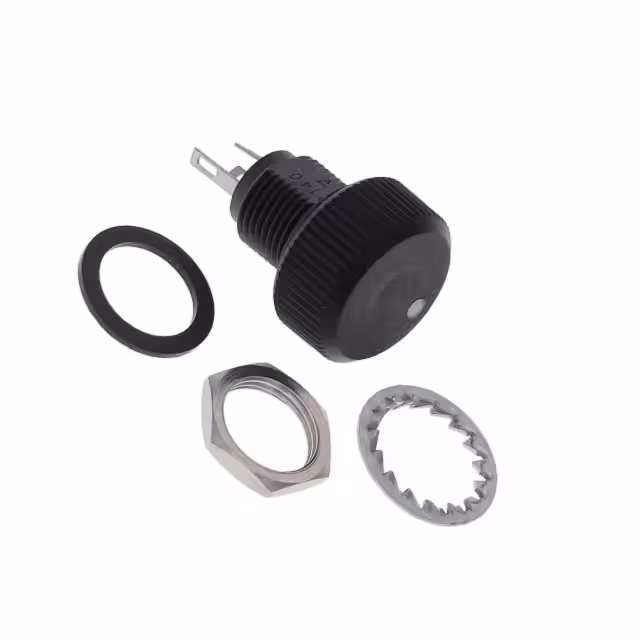

PA16NP472MAB15POT 4.7K OHM 1/2W PLASTIC LINEAR |
0 |
|
Таблицы данных |
PA16 | Box | Active | 4.7k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Knob | 0.610" (15.50mm) | 0.315" (8.00mm) | M10 x 0.75 | Panel Mount |
|

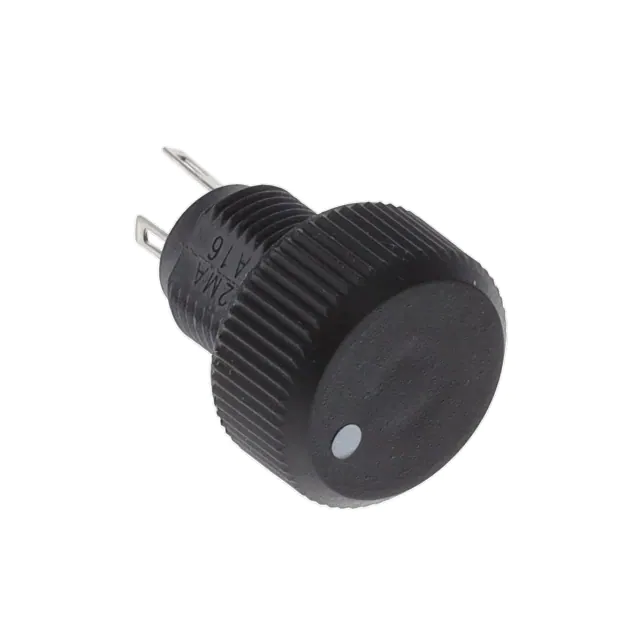

PA16NP222MAB15POT 2.2K OHM 1/2W PLASTIC LINEAR |
0 |
|
Таблицы данных |
PA16 | Box | Active | 2.2k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Knob | 0.610" (15.50mm) | 0.315" (8.00mm) | M10 x 0.75 | Panel Mount |
|
P16NM104MAB15POT 100K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
P16 | Bulk | Active | 100k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NM222MAB15POT 2.2K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
P16 | Bulk | Active | 2.2k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

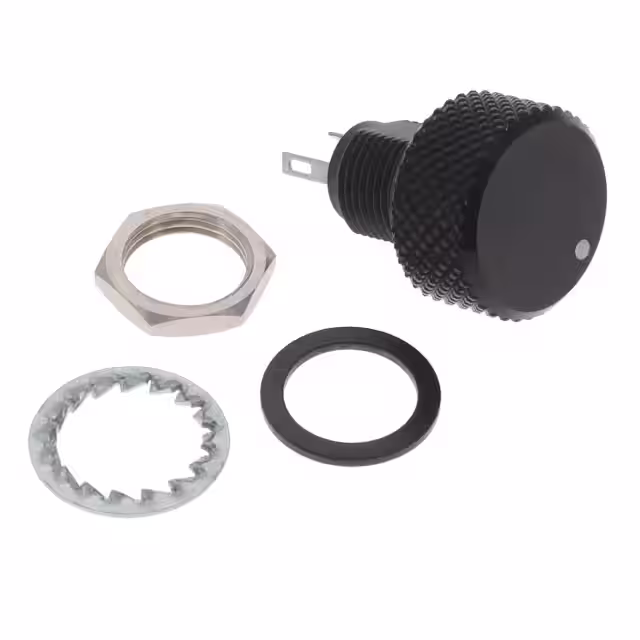

P16NM473MAB15POT 47K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
P16 | Box | Active | 47k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

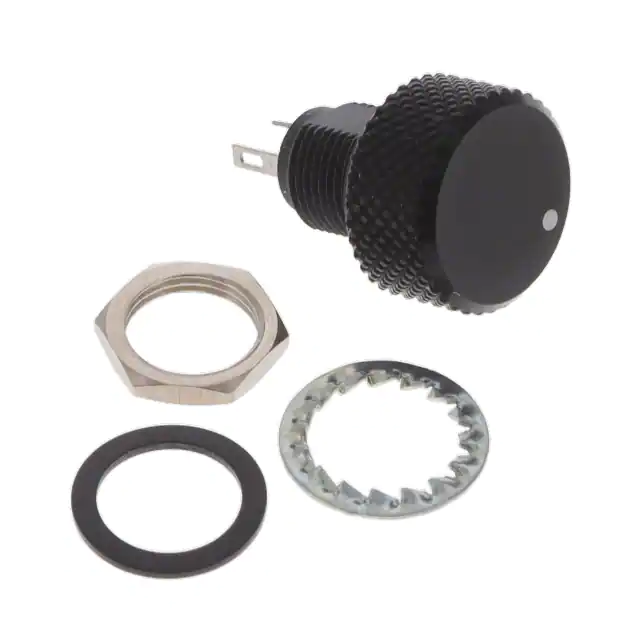

P16NM223MAB15POT 22K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
P16 | Box | Active | 22k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
