Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AA15D0512DAC/DC DIN RAIL SUPPLY 5V 12V 15W |
0 |
|
- |
AA15D (15W) | Box | Obsolete | AC | 2 | 85 ~ 264 VAC | - | - | 5V | 12V | - | - | - | - | 1.5A, 625mA | 15W | 3 kV | ITE (Commercial) | 72% | -25°C ~ 70°C (With Derating) | Universal Input | CE | - |
|
|

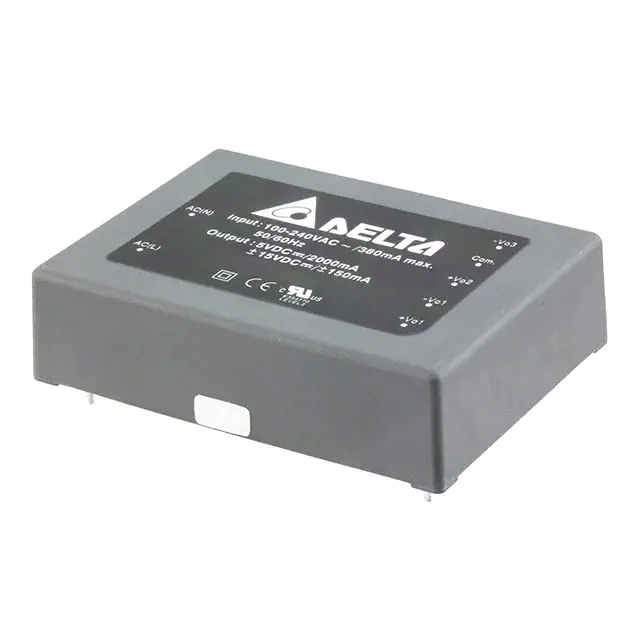

AA15T051515DAC/DC DIN RAIL SUP 5V +/-15V 15W |
0 |
|
- |
AA15T (15W) | Box | Obsolete | AC | 3 | 85 ~ 264 VAC | - | - | 5V | 15V | -15V | - | - | - | 2A, 150mA, 150mA | 15W | 3 kV | ITE (Commercial) | 74% | -25°C ~ 70°C (With Derating) | Universal Input | CE | - |
|
|
AA30S0500DAC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Таблицы данных |
AA30S (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 6A | 30W | 3 kV | ITE (Commercial) | 78% | -25°C ~ 70°C | Universal Input | CE | - |
|
|
AA30S1200DAC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Таблицы данных |
AA30S (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | 3 kV | ITE (Commercial) | 80% | -25°C ~ 70°C | Universal Input | CE | - |
|
|
AA30S2400DAC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Таблицы данных |
AA30S (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.25A | 30W | 3 kV | ITE (Commercial) | 80% | -25°C ~ 70°C | Universal Input | CE | - |
|
|
AA30S4800DAC/DC DIN RAIL SUPPLY 48V 30W |
0 |
|
Таблицы данных |
AA30S (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 625mA | 30W | 3 kV | ITE (Commercial) | 80% | -25°C ~ 70°C | Universal Input | CE | - |
|
AA30D1515DAC/DC DIN RAIL SUPPLY +/-15V 30W |
0 |
|
Таблицы данных |
AA30D (30W) | Box | Obsolete | AC | 2 | 85 ~ 264 VAC | - | - | 15V | -15V | - | - | - | - | 1A, 1A | 30W | 3 kV | ITE (Commercial) | 80% | -25°C ~ 70°C | Universal Input | CE | - |
|
|
AA30D0512DAC/DC DIN RAIL SUPPLY 5V 12V 30W |
0 |
|
Таблицы данных |
AA30D (30W) | Box | Obsolete | AC | 2 | 85 ~ 264 VAC | - | - | 5V | 12V | - | - | - | - | 3A, 1.25A | 30W | 3 kV | ITE (Commercial) | 76% | -25°C ~ 70°C | Universal Input | CE | - |
|
AA30T121205DAC/DC DIN RAIL SUP 5V +/-12V 30W |
0 |
|
Таблицы данных |
AA30T (30W) | Box | Obsolete | AC | 3 | 85 ~ 264 VAC | - | - | 5V | 12V | -12V | - | - | - | 3A, 1A, 250mA | 30W | 3 kV | ITE (Commercial) | 76% | -25°C ~ 70°C | Universal Input | CE | - |
|
|
AA30T050312DAC/DC DIN RL SUP 5V 3.3V 12V 30W |
0 |
|
Таблицы данных |
AA30T (30W) | Box | Obsolete | AC | 3 | 85 ~ 264 VAC | - | - | 5V | 3.3V | 12V | - | - | - | 4.5A, 1A, 250mA | 30W | 3 kV | ITE (Commercial) | 71% | -25°C ~ 70°C | Universal Input | CE | - |
|
|
AA30T030512DAC/DC DIN RL SUP 3.3V 5V 12V 30W |
0 |
|
Таблицы данных |
AA30T (30W) | Box | Obsolete | AC | 3 | 85 ~ 264 VAC | - | - | 3.3V | 5V | 12V | - | - | - | 4A, 1.5A, 250mA | 30W | 3 kV | ITE (Commercial) | 71% | -25°C ~ 70°C | Universal Input | CE | - |
|
|
AA60S3600DAC/DC DIN RAIL SUPPLY 36V 60W |
0 |
|
Таблицы данных |
AA60S (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 36V | - | - | - | - | - | 1.67A | 60W | 3 kV | ITE (Commercial) | 84% | -10°C ~ 70°C | Universal Input | CE | - |
|
|
AB24S0500DAC/DC DIN RAIL SUPPLY 5V 24W |
0 |
|
Таблицы данных |
AB24S (24W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 24W | 4 kV | ITE (Commercial), Medical | 77% | -40°C ~ 80°C | Universal Input | CE | - |
|
|
AB24S0900DAC/DC DIN RAIL SUPPLY 9V 24W |
0 |
|
Таблицы данных |
AB24S (24W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 9V | - | - | - | - | - | 2.67A | 24W | 4 kV | ITE (Commercial), Medical | 82% | -40°C ~ 80°C | Universal Input | CE | - |
|
|
AB24S2400DAC/DC DIN RAIL SUPPLY 24V 24W |
0 |
|
Таблицы данных |
AB24S (24W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1A | 24W | 4 kV | ITE (Commercial), Medical | 85% | -40°C ~ 80°C | Universal Input | CE | - |
|
|
AB40D1515DAC/DC DIN RAIL SUPPLY +/-15V 40W |
0 |
|
Таблицы данных |
AB40D (40W) | Box | Obsolete | AC | 2 | 85 ~ 264 VAC | - | - | 15V | -15V | - | - | - | - | 1.33A, 1.33A | 40W | 4 kV | ITE (Commercial), Medical | 85% | -40°C ~ 80°C | Universal Input | CE | - |
|
|
AB60S0500DAC/DC DIN RAIL SUPPLY 5V 60W |
0 |
|
Таблицы данных |
AB60S (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 10A | 60W | 4 kV | ITE (Commercial), Medical | 84% | -40°C ~ 80°C | Universal Input | CE | - |
|
|
AB60S1200DAC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
Таблицы данных |
AB60S (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | 4 kV | ITE (Commercial), Medical | 87% | -40°C ~ 80°C | Universal Input | CE | - |
|
|
AB60S2400DAC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Таблицы данных |
AB60S (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial), Medical | 87% | -40°C ~ 80°C | Universal Input | CE | - |
|
DSP30-24/277AAC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Таблицы данных |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
