Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LWN1301-6EAC/DC DIN RAIL SUP 12.35V 250W |
0 |
|
Таблицы данных |
Melcher W (250W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12.35V | - | - | - | - | - | 14A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWN1601-6EAC/DC DIN RAIL SUPPLY 24.7V 250W |
0 |
|
Таблицы данных |
Melcher W (250W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24.7V | - | - | - | - | - | 10A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWN2660-6EAC/DC DIN RAIL SUP 2X24.7V 250W |
0 |
|
Таблицы данных |
Melcher W (250W) | Bulk | Active | AC | 2 | 85 ~ 264 VAC | - | - | 24.7V | 24.7V | - | - | - | - | 5A, 5A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWR1301-6EAC/DC DIN RAIL SUPPLY 12.35V 93W |
0 |
|
Таблицы данных |
Melcher W (125W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12.35V | - | - | - | - | - | 7.5A | 93W | 2.8 kV | ITE (Commercial) | 83% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWR1701-6EAC/DC DIN RAIL SUPPLY 37V 125W |
0 |
|
Таблицы данных |
Melcher W (125W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 37V | - | - | - | - | - | 3.3A | 125W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWR1801-6EAC/DC DIN RAIL SUPPLY 49.4V 125W |
0 |
|
Таблицы данных |
Melcher W (125W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 49.4V | - | - | - | - | - | 2.5A | 125W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
EWR1601-0DC/DC DIN RAIL SUPPLY 24.7V 125W |
0 |
|
Таблицы данных |
Melcher W (125W) | Bulk | Obsolete | DC | 1 | - | 66V | 150V | 24.7V | - | - | - | - | - | 5A | 125W | - | ITE (Commercial), Laboratory, Railway | 87% | -40°C ~ 70°C | - | CE, CSA, EN, IEC, UL | - |
|
2940676AC/DC DIN RAIL SUPPLY 4V 1W |
0 |
|
Таблицы данных |
EG 45 | Bulk | Obsolete | AC | 1 | 230VAC | - | - | 4V | - | - | - | - | - | 250mA | 1W | 4 kV | ITE (Commercial) | - | 0°C ~ 60°C | Adjustable Output, IP20 | - | - |
|
|
LWR1701-6EGAC/DC DIN RAIL SUPPLY 37V 125W |
0 |
|
Таблицы данных |
Melcher W (125W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 37V | - | - | - | - | - | 3.3A | 125W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | cCSAus, CE, cULus, NEMKO, TUV | - |
|

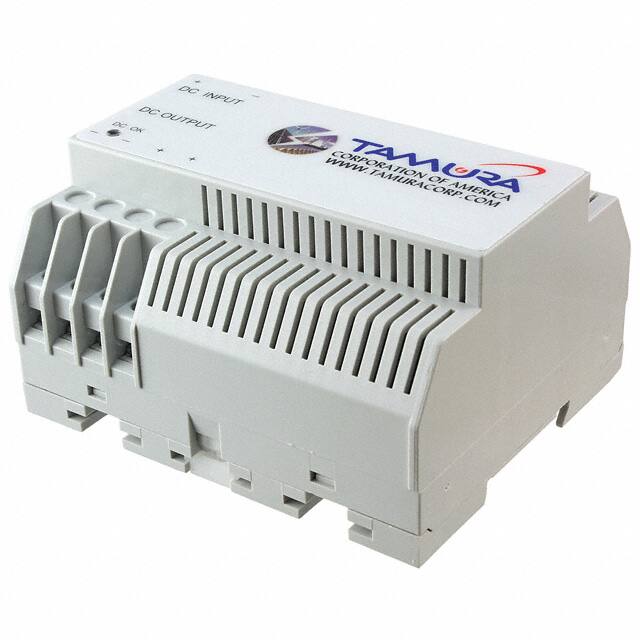

TCDC-7001DC/DC DIN RAIL SUPPLY 24V 24W |
0 |
|
Таблицы данных |
TCDC-7001 (24W) | Bulk | Obsolete | DC | 1 | - | 190V | 1000V | 24V | - | - | - | - | - | 1A | 24W | - | ITE (Commercial) | 80% | -20°C ~ 50°C | - | CSA, UL | - |
|

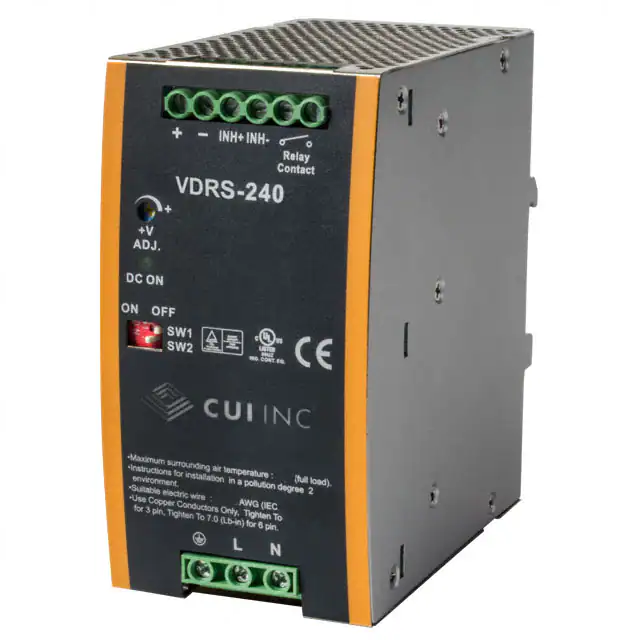

VDRS-240-24AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Таблицы данных |
VDRS-240 (240W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4.242 kV | ITE (Commercial) | 91% | -25°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | CE, cULus, cURus, TUV | - |
|
|
S8VM-10024PDAC/DC DIN RAIL SUPPLY 24V 100W |
0 |
|
- |
S8VM (100W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.5A | 100W | 3 kV | ITE (Commercial) | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, VDE | - |
|
PYB10-Q24-D5-DINDC/DC DIN RAIL SUPPLY +/-5V 10W |
0 |
|
Таблицы данных |
PYB10-DIN (10W) | Tray | Obsolete | DC | 2 | - | 9V | 36V | 5V | -5V | - | - | - | - | 1A, 1A | 10W | - | - | 81% | -40°C ~ 85°C | - | EN | 55024; 55032 Class A |
|
|
PYB10-Q24-D15-DINDC/DC DIN RAIL SUPPLY +/-15V 10W |
0 |
|
Таблицы данных |
PYB10-DIN (10W) | Tray | Obsolete | DC | 2 | - | 9V | 36V | 15V | -15V | - | - | - | - | 333mA, 333mA | 10W | - | - | 86% | -40°C ~ 85°C | - | EN | 55024; 55032 Class A |
|
|
PYB10-Q24-S12-DINDC/DC DIN RAIL SUPPLY 12V 10W |
0 |
|
Таблицы данных |
PYB10-DIN (10W) | Tray | Obsolete | DC | 1 | - | 9V | 36V | 12V | - | - | - | - | - | 833mA | 10W | - | - | 84% | -40°C ~ 85°C | - | EN | 55024; 55032 Class A |
|
|
PYB10-Q24-S15-DINDC/DC DIN RAIL SUPPLY 15V 10W |
0 |
|
Таблицы данных |
PYB10-DIN (10W) | Tray | Obsolete | DC | 1 | - | 9V | 36V | 15V | - | - | - | - | - | 667mA | 10W | - | - | 85% | -40°C ~ 85°C | - | EN | 55024; 55032 Class A |
|
|
PYB10-Q48-D12-DINDC/DC DIN RAIL SUPPLY +/-12V 10W |
0 |
|
Таблицы данных |
PYB10-DIN (10W) | Tray | Obsolete | DC | 2 | - | 18V | 75V | 12V | -12V | - | - | - | - | 416mA, 416mA | 10W | - | - | 84% | -40°C ~ 85°C | - | EN | 55024; 55032 Class A |
|
|
PYB10-Q48-S5-DINDC/DC DIN RAIL SUPPLY 5V 10W |
0 |
|
Таблицы данных |
PYB10-DIN (10W) | Tray | Obsolete | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 2A | 10W | - | - | 80% | -40°C ~ 85°C | - | EN | 55024; 55032 Class A |
|
PYB15-Q24-D5-DINDC/DC DIN RAIL SUPPLY +/-5V 15W |
0 |
|
Таблицы данных |
PYB15-DIN (15W) | Tray | Obsolete | DC | 2 | - | 9V | 36V | 5V | -5V | - | - | - | - | 1.5A, 1.5A | 15W | - | - | 84% | -40°C ~ 85°C | - | EN | 55024; 55032 Class A |
|
|
PYB15-Q24-D12-DINDC/DC DIN RAIL SUPPLY +/-12V 15W |
0 |
|
Таблицы данных |
PYB15-DIN (15W) | Tray | Obsolete | DC | 2 | - | 9V | 36V | 12V | -12V | - | - | - | - | 625mA, 625mA | 15W | - | - | 86% | -40°C ~ 85°C | - | EN | 55024; 55032 Class A |
