Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DDA500N-D2PP-1205-001DC/DC DIN RAIL SUP 12V 5V 500W |
0 |
|
Таблицы данных |
DDA (500W) | Box | Active | DC | 2 | - | 9V | 53V | 12V | 5V | - | - | - | - | 20A, 20A | 500W | - | ITE (Commercial) | 95% | -40°C ~ 100°C | Adjustable Output, Remote On/Off, Remote Sense | CE | - |
|
S8VK-X06024-EIPAC/DC DIN RAIL SUPPLY 24V 60W |
1 |
|
Таблицы данных |
S8VK-X (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 350V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cURus, EAC, KC, RCM, TUV, UL | - |
|
S8VS-09024BESAC/DC DIN RAIL SUPPLY 24V 90W |
1 |
|
Таблицы данных |
S8VS (90W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, VDE | - |
|
S8VS-09024AAC/DC DIN RAIL SUPPLY 24V 90W |
1 |
|
Таблицы данных |
S8VS (90W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, VDE | - |
|
S8VS-09024BAC/DC DIN RAIL SUPPLY 24V 90W |
1 |
|
Таблицы данных |
S8VS (90W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, VDE | - |
|
S8VK-G24024-400AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Таблицы данных |
S8VK-G (240W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, cURus, TUV | - |
|
6EP33237SB000AX0AC/DC DIN RAIL SUPPLY 12V 84W |
1 |
|
Таблицы данных |
6EP3 | Bulk | Active | AC or DC | 1 | 120 ~ 230 VAC, 85 ~ 264 VAC | 99V | 275V | 12V | - | - | - | - | - | 7A | 84W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87.1% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|

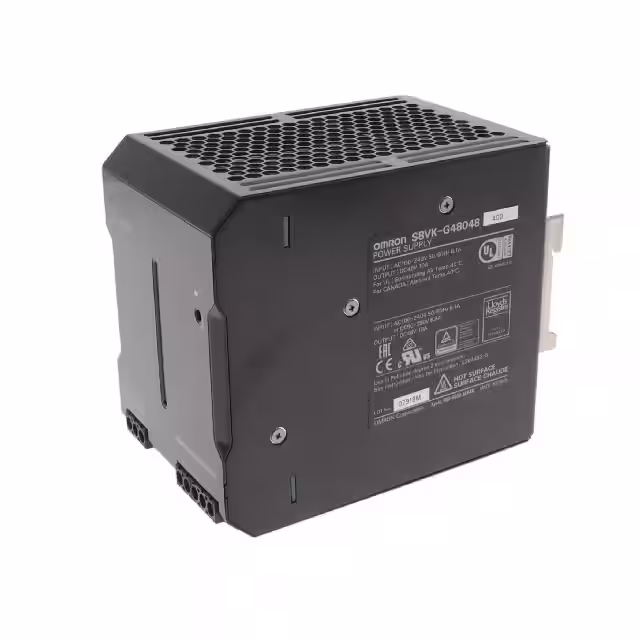

S8VK-G48048-400AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Таблицы данных |
S8VK-G (480W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, cURus, TUV | - |
|

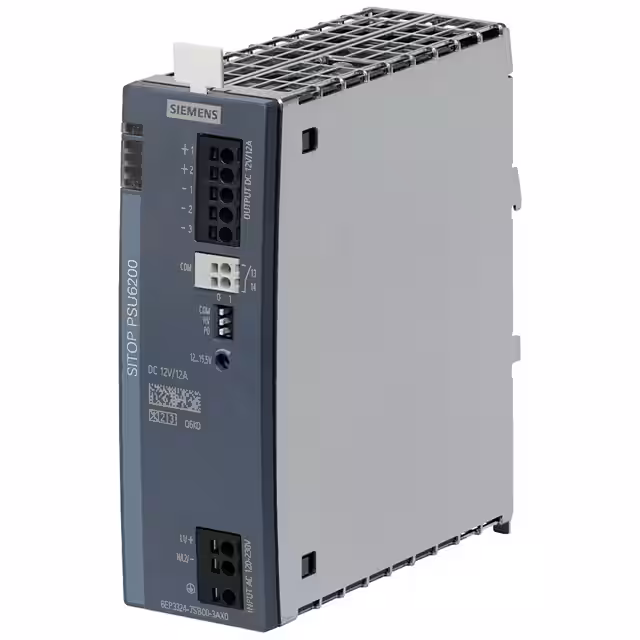

6EP33247SB003AX0AC/DC DIN RAIL SUPPLY 12V 144W |
1 |
|
Таблицы данных |
6EP3 | Bulk | Active | AC or DC | 1 | 120 ~ 230 VAC, 85 ~ 264 VAC | 85V | 275V | 12V | - | - | - | - | - | 12A | 144W | - | Hazardous Locations, Industrial, ITE (Commercial) | 89.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
SPDC242401AC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
Таблицы данных |
SPDC (240W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 127V | 375V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | CE, cULus, cURus | - |
|
2467030000AC/DC DIN RAIL SUPPLY 48V 480W |
1 |
|
Таблицы данных |
PRO TOP1 (480W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | - | - | - |
|
2467040000AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Таблицы данных |
PRO TOP1 (480W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | - | - |
|
787-870DC/DC DIN RAIL SUPPLY 24V |
1 |
|
Таблицы данных |
- | Box | Active | DC | 1 | - | 22V | 29V | 24V | - | - | - | - | - | 10A | - | 500 V | Industrial, ITE (Commercial), Laboratory | 95% | -10°C ~ 60°C | Adjustable Output | CE, cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
1046805DC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Таблицы данных |
Quint | Box | Active | DC | 1 | - | 18V | 32V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Hazardous Locations, ITE (Commercial), Laboratory | 94.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | CB, CSA, cULus, UL | 60950-1; 61010-1 |
|

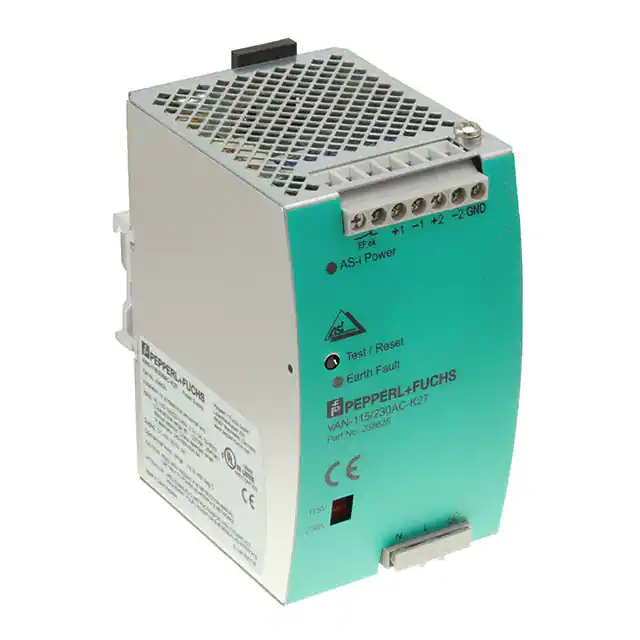

VAN-115/230AC-K27AC/DC DIN RAIL SUPPLY 30.5V |
1 |
|
Таблицы данных |
- | Box | Active | AC or DC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | 240V | 300V | 30.5V | - | - | - | - | - | 4A | - | - | ITE (Commercial) | 90% | -10°C ~ 70°C (With Derating) | IP20 | CE, cULus | - |
|
2466900000AC/DC DIN RAIL SUPPLY 24V 960W |
1 |
|
Таблицы данных |
PRO TOP1 (960W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 24V | - | - | - | - | - | 40A | 960W | 4 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | - | - | - |
|

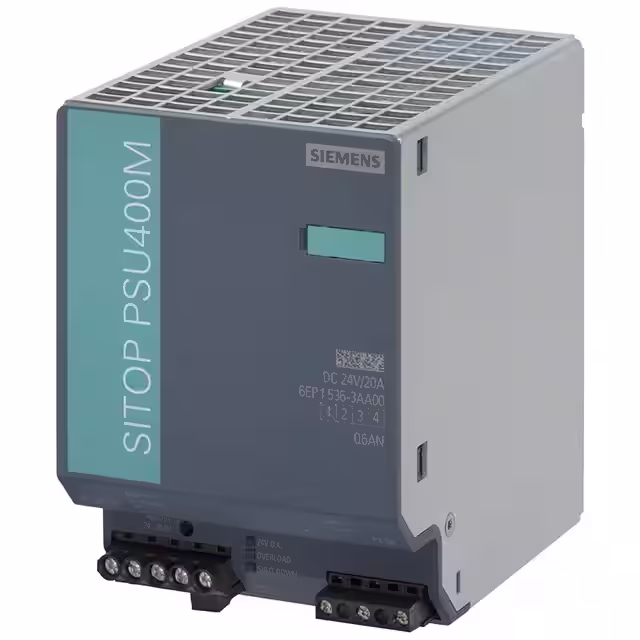

6EP15363AA00DC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Таблицы данных |
6EP1 | Bulk | Active | DC | 1 | - | 300V | 900V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 95% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | CB, CE, CSA, cUL, cULus, cURus, UL | 60950-1; UL 508 |
|
787-834AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Таблицы данных |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 24V | - | - | - | - | - | 20A | 480W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 91% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|

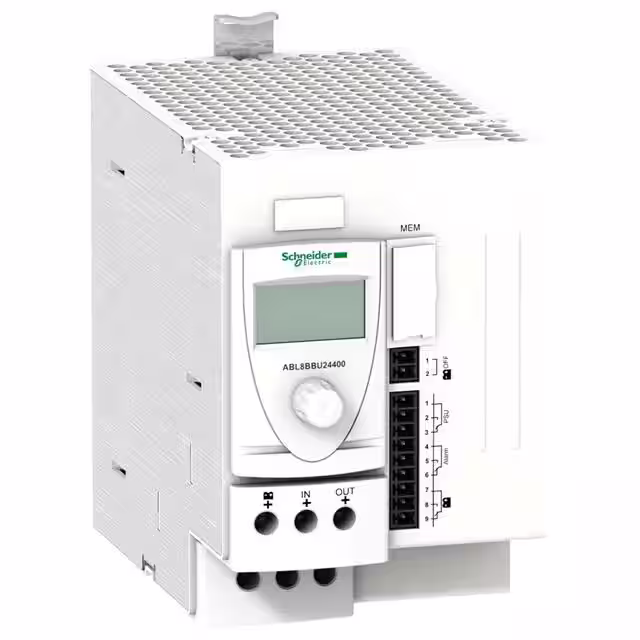

ABL8BBU24400DC/DC DIN RAIL SUPPLY 24V |
1 |
|
Таблицы данных |
- | Box | Active | DC | 1 | - | 24V | 28.8V | 24V | - | - | - | - | - | 40A | - | 500 V | Industrial, ITE (Commercial) | - | -25°C ~ 60°C | Adjustable Output, IP20 | EAC | 60950-1; UL 508 |
|
NTPS-24-5AC/DC DIN RAIL SUPPLY 24V 120W |
1 |
|
Таблицы данных |
N-TRON® | Bulk | Active | AC | 1 | 100 ~ 120 VAC, 220 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 90.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | CB, CE, cURus | - |
