Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8VK-G01524-400AC/DC DIN RAIL SUPPLY 24V 15W |
1 |
|
Таблицы данных |
S8VK-G (15W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 650mA | 15W | 3 kV | ITE (Commercial) | 80% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, cURus, TUV | - |
|
KLNA240F-48AC/DC DIN RAIL SUPPLY 48V 240W |
1 |
|
Таблицы данных |
KLNA (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | 90% | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | FCC | 60950-1 |
|

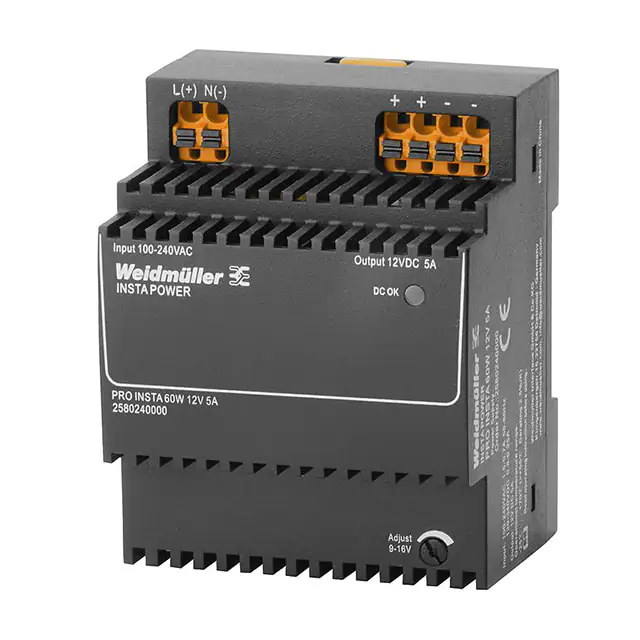

2580240000AC/DC DIN RAIL SUPPLY 12V 60W |
1 |
|
Таблицы данных |
Connect Power INSTA (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 370V | 12V | - | - | - | - | - | 5A | 60W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | cCSAus, TUV | - |
|
CRPS24VDC-120AC/DC DIN RAIL SUPPLY 24V 5W |
0 |
|
Таблицы данных |
CRPS | Bulk | Active | AC | 1 | 120VAC | - | - | 24V | - | - | - | - | - | 200mA | 5W | - | ITE (Commercial) | - | - | Universal Input | CE | - |
|
1478230000AC/DC DIN RAIL SUPPLY 12V 120W |
0 |
|
Таблицы данных |
PRO MAX (120W) | Bulk | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 370V | 12V | - | - | - | - | - | 10A | 120W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20 | CE, cULus, cuRus, EAC, TUV | - |
|
TSPC 120-124AC/DC DIN RAIL SUPPLY 24V 120W |
1 |
|
Таблицы данных |
TSPC (120W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output | CB, CE | - |
|
2838470000AC/DC DIN RAIL SUPPLY 48V 240W |
1 |
|
Таблицы данных |
PRO BAS (240W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 370V | 48V | - | - | - | - | - | 5A | 240W | 3.5 kV | Laboratory | 95% | -25°C ~ 70°C | PFC, Universal Input | - | 61010-1 |
|
89451010AC/DC DIN RAIL SUPPLY 24V 100W |
1 |
|
Таблицы данных |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 4.2A | 100W | 3 kV | Industrial, ITE (Commercial) | 90% | -20°C ~ 71°C (With Derating) | PFC, Universal Input | CE, CSA, UL | - |
|
S8VK-G03012-400AC/DC DIN RAIL SUPPLY 12V 30W |
1 |
|
Таблицы данных |
S8VK-G (30W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | 3 kV | ITE (Commercial) | 82% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, cURus, TUV | - |
|
|
S8VK-G03005-400AC/DC DIN RAIL SUPPLY 5V 30W |
1 |
|
Таблицы данных |
S8VK-G (30W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 5A | 30W | 3 kV | ITE (Commercial) | 79% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, cURus, TUV | - |
|
S8VK-G03024-400AC/DC DIN RAIL SUPPLY 24V 30W |
1 |
|
Таблицы данных |
S8VK-G (30W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, cURus, TUV | - |
|

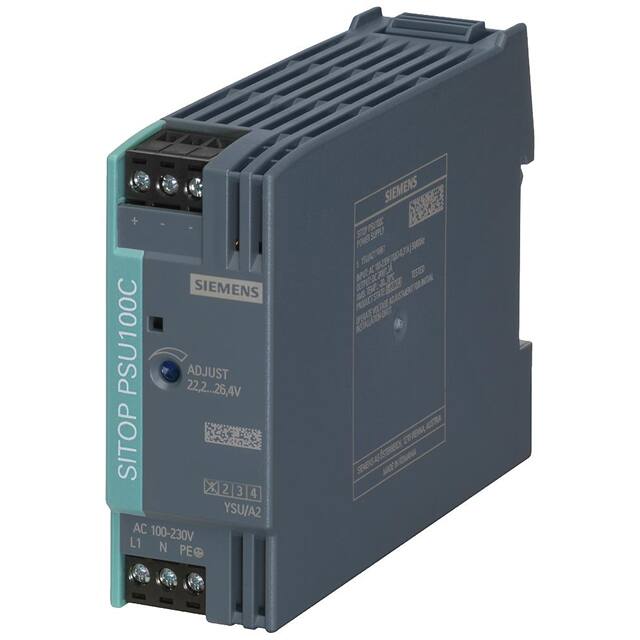

6EP13215BA00AC/DC DIN RAIL SUPPLY 12V 24W |
1 |
|
Таблицы данных |
6EP1 | Bulk | Active | AC or DC | 1 | 100 ~ 230 VAC, 85 ~ 264 VAC | 110V | 300V | 12V | - | - | - | - | - | 2A | 24W | - | Hazardous Locations, Industrial, ITE (Commercial) | 82% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
|
PSC-12048AC/DC DIN RAIL SUPPLY 48V 120W |
0 |
|
Таблицы данных |
PSC-120 (120W) | Box | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | Industrial, ITE (Commercial) | 91% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus | 60950-1; UL 508 |
|
787-1602AC/DC DIN RAIL SUPPLY 24V 24W |
1 |
|
Таблицы данных |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 24V | - | - | - | - | - | 1A | 24W | 4.242 kV | Household Appliances, Industrial, ITE (Commercial), Laboratory | 86% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | cURus, EAC, UL | 60335-1; 60950-1; 61010-1; UL 508 |
|

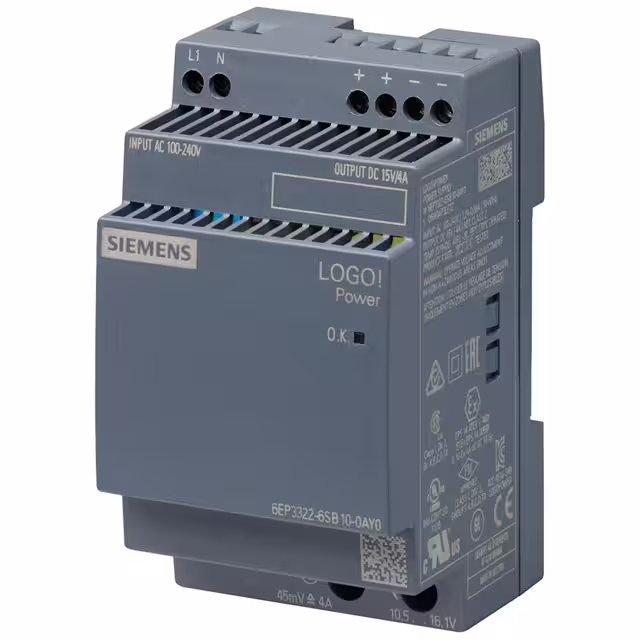

6EP33226SB100AY0AC/DC DIN RAIL SUPPLY 15V 60W |
1 |
|
Таблицы данных |
6EP3 | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | 110V | 300V | 15V | - | - | - | - | - | 4A | 60W | - | Hazardous Locations, Industrial, ITE (Commercial) | 88.4% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
6EP33116SB000AY0AC/DC DIN RAIL SUPPLY 5V 32W |
0 |
|
Таблицы данных |
6EP3 | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | 110V | 300V | 5V | - | - | - | - | - | 6.3A | 32W | - | Hazardous Locations, Industrial, ITE (Commercial) | 80% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
2580270000AC/DC DIN RAIL SUPPLY 48V 96W |
1 |
|
Таблицы данных |
Connect Power INSTA (96W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 370V | 48V | - | - | - | - | - | 2A | 96W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | cCSAus, TUV | - |
|
EC7BW18-72S05-EDRTDC/DC DIN RAIL SUPPLY 5V 20W |
0 |
|
Таблицы данных |
EC7BW18 (20W) | Box | Active | DC | 1 | - | 10V | 160V | 5V | - | - | - | - | - | 4A | 20W | 3 kV | ITE (Commercial), Railway | 84% | -40°C ~ 100°C (With Derating) | Remote On/Off | CE | 50155; 62368-1 |
|

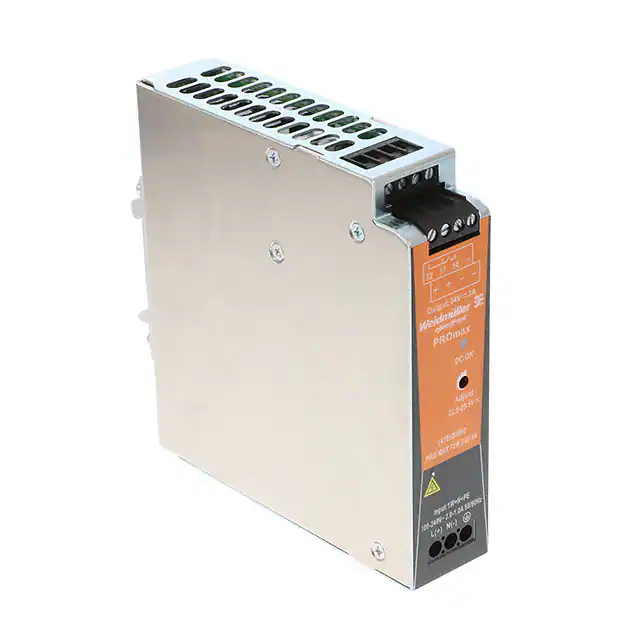

1478100000AC/DC DIN RAIL SUPPLY 24V 72W |
1 |
|
Таблицы данных |
PRO MAX (72W) | Bulk | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 370V | 24V | - | - | - | - | - | 3A | 72W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20 | CE, cULus, cuRus, EAC, TUV | - |
|

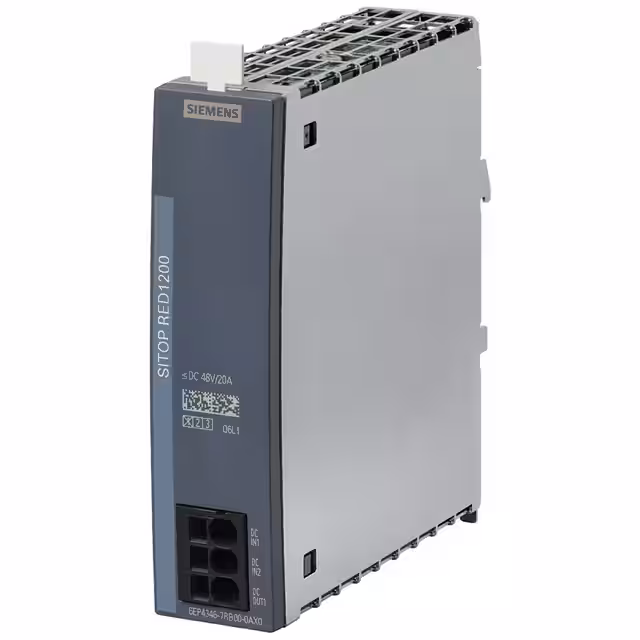

6EP43467RB000AX0DC/DC DIN RAIL SUPPLY 24V |
0 |
|
Таблицы данных |
6EP4 | Bulk | Active | DC | 1 | - | 10V | 58V | 24V | - | - | - | - | - | 20A | - | - | Industrial | 97.5% | -25°C ~ 70°C | Adjustable Output, IP20 | CE, CSA, cULus, UL | 508 |
