Высокочастотные (РЧ) реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6ZU-1FE-A DC9RELAY RF SPDT 10MA 9V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 22.2 mA | 9VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 6.75 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6ZU-1P-A DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6ZU-1PE-A DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6ZU-1PE DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6ZU-1PE DC4.5RELAY RF SPDT 10MA 4.5V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
9002-12-10RELAY RF SPST-NO 500MA 12V |
0 |
|
Таблицы данных |
9000 | Tube | Obsolete | Non Latching | 16 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | Magnetic Shield | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
9002-05-02RELAY RF SPST-NC 500MA 5V |
0 |
|
Таблицы данных |
9000 | Tube | Obsolete | Non Latching | 14.3 mA | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
9402-05-10RELAY RF SPST-NO 500MA 5V |
0 |
|
Таблицы данных |
9400 | Tube | Obsolete | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | Axial | -20°C ~ 85°C |
|

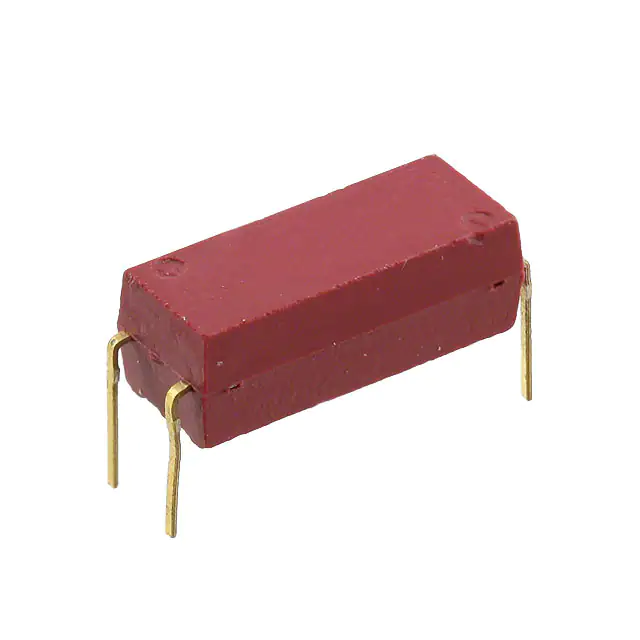

9402-12-30RELAY RF SPST-NO 500MA 12V |
0 |
|
Таблицы данных |
9400 | Tube | Obsolete | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
9402-12-10RELAY RF SPST-NO 500MA 12V |
0 |
|
Таблицы данных |
9400 | Tube | Obsolete | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | Axial | -20°C ~ 85°C |
|
|
9402-05-30RELAY RF SPST-NO 500MA 5V |
0 |
|
Таблицы данных |
9400 | Tube | Obsolete | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
9903-05-00RELAY RF SPST-NO 250MA 5V |
0 |
|
Таблицы данных |
9900 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
|
9903-05-10RELAY RF SPST-NO 250MA 5V |
0 |
|
Таблицы данных |
9900 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|

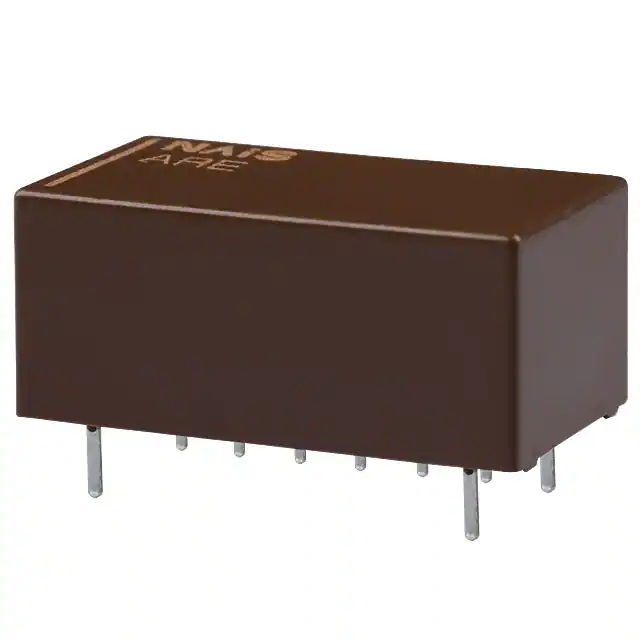

ARE104HRELAY RF SPDT 500MA 4.5V |
0 |
|
Таблицы данных |
ARE | Box | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|

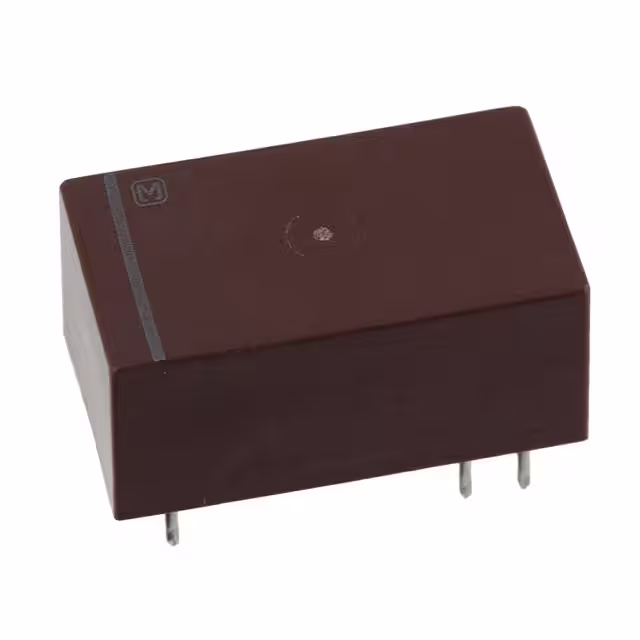

RK1-L2-12VRELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
RK | Tube | Obsolete | Latching, Dual Coil | 33.3 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VDC - Max | 9 VDC | - | 10 ms | 6 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
HF24-1A54-9RELAY RF SPST-NO 1.5 A 24V |
0 |
|
Таблицы данных |
HF | Bulk | Active | Non Latching | 24 mA | 24VDC | SPST-NO (1 Form A) | 1.5 A | 500VAC, 500VDC - Max | 16.8 VDC | 3.6 VDC | 3 ms | 1 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
MW6-12PRELAY RF DPDT 1A 12V |
0 |
|
- |
MW6, CII | Bulk | Active | Non Latching | 31 mA | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 8.4 VDC | - | 4 ms | 3 ms | - | Through Hole | PC Pin | -55°C ~ 85°C |
|
|
ARE1012RELAY RF SPDT 500MA 12V |
0 |
|
Таблицы данных |
ARE | Bulk | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|

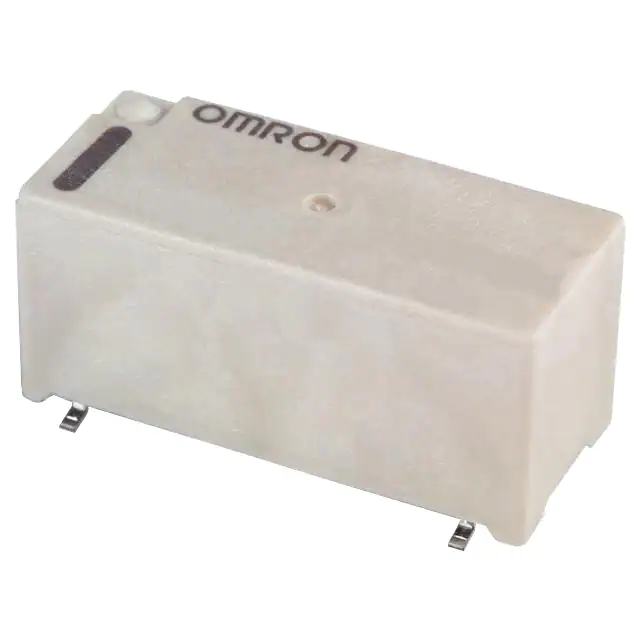

G6Z-1F-A-TR DC5RELAY RF SPDT 10MA 5V |
0 |
|
Таблицы данных |
G6Z | Tape & Reel (TR) | Active | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1F-R-TR DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6Z | Tape & Reel (TR) | Active | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
