Высокочастотные (РЧ) реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

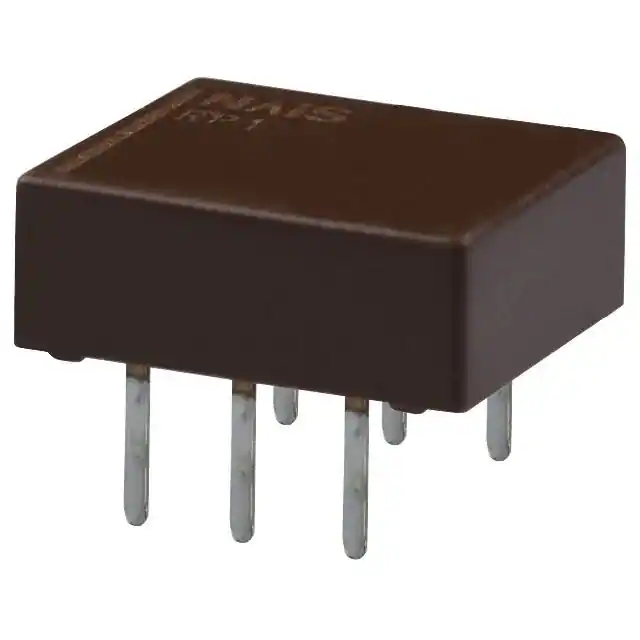

RP1-1.5VRELAY RF SPDT 100MA 1.5V |
0 |
|
Таблицы данных |
RP | Tube | Obsolete | Non Latching | 93.8 mA | 1.5VDC | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 1.13 VDC | 0.15 VDC | 3 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
RP1-4.5VRELAY RF SPDT 100MA 4.5V |
0 |
|
Таблицы данных |
RP | Tube | Obsolete | Non Latching | 31.1 mA | 4.5VDC | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 3.38 VDC | 0.45 VDC | 3 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
RP1-H-5VRELAY RF SPDT 100MA 5V |
0 |
|
Таблицы данных |
RP | Tube | Obsolete | Non Latching | 28.1 mA | 5VDC | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 3.75 VDC | 0.5 VDC | 3 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|

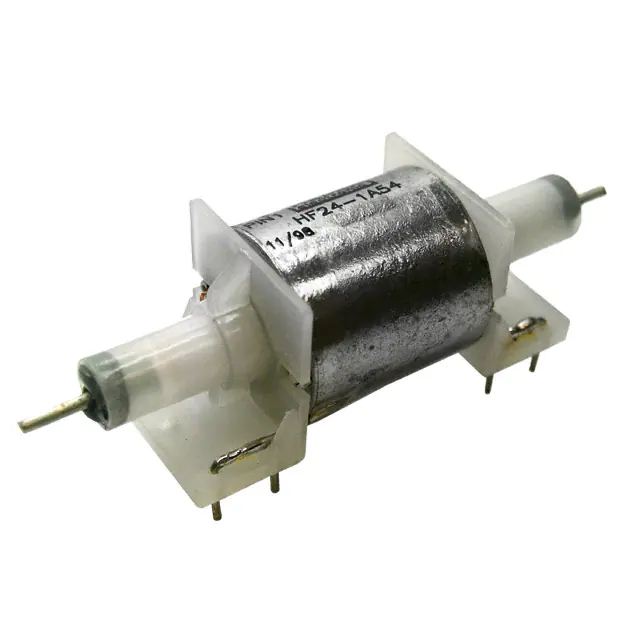

HF12-1A54-8RELAY RF SPST-NO 1.5 A 12V |
0 |
|
Таблицы данных |
HF | Bulk | Obsolete | Non Latching | 47.9 mA | 12VDC | SPST-NO (1 Form A) | 1.5 A | 500VAC, 500VDC - Max | 8.4 VDC | 1.8 VDC | 3 ms | 1 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
2611-05-320RELAY RF SPDT 250MA 5V |
0 |
|
- |
2600 | Bulk | Obsolete | Non Latching | - | 5VDC | SPDT (1 Form C) | 250 mA | 200VDC - Max | 3.7 VDC | 0.4 VDC | - | - | - | Through Hole | PC Pin | -20°C ~ 70°C |
|
|
2611-05-321RELAY RF SPDT 250MA 5V |
0 |
|
- |
2600 | Bulk | Obsolete | Non Latching | - | 5VDC | SPDT (1 Form C) | 250 mA | 200VDC - Max | 3.7 VDC | 0.4 VDC | - | - | - | Through Hole | PC Pin | -20°C ~ 70°C |
|
|
2611-12-321RELAY RF SPDT 250MA 12V |
0 |
|
- |
2600 | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 250 mA | 200VDC - Max | 9 VDC | 1 VDC | - | - | - | Through Hole | PC Pin | -20°C ~ 70°C |
|
|
2653-05-320RELAY RF DPST-NO 500MA 5V |
0 |
|
- |
2600 | Bulk | Obsolete | Non Latching | - | 5VDC | DPST-NO (2 Form A) | 500 mA | 250VAC - Max | 3.7 VDC | 0.4 VDC | - | - | - | Through Hole | PC Pin | -20°C ~ 70°C |
|
G6ZK-1FE-A-DC5RELAY RF SPDT 10MA 5V |
0 |
|
Таблицы данных |
G6Z | Bulk | Active | Latching, Dual Coil | 72 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G9YA-12S-45 DC4.5RELAY RF SPDT 4.5V |
0 |
|
Таблицы данных |
G9YA | Bulk | Obsolete | Non Latching | 155 mA | 4.5VDC | SPDT (1 Form C) | - | - | 3.6 VDC | 0.45 VDC | 15 ms | 15 ms | - | Chassis Mount | Solder Lug | -55°C ~ 85°C |
|
|

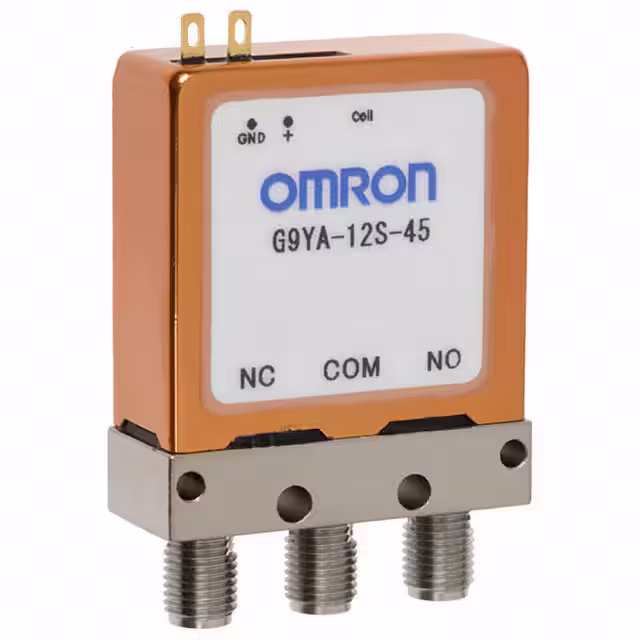

G9YA-12S-45 DC12RELAY RF SPDT 12V |
0 |
|
Таблицы данных |
G9YA | Bulk | Obsolete | Non Latching | 58.5 mA | 12VDC | SPDT (1 Form C) | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 15 ms | - | Chassis Mount | Solder Lug | -55°C ~ 85°C |
|
|
G9YA-12S-45 DC24RELAY RF SPDT 24V |
0 |
|
Таблицы данных |
G9YA | Bulk | Obsolete | Non Latching | 29.2 mA | 24VDC | SPDT (1 Form C) | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 15 ms | - | Chassis Mount | Solder Lug | -55°C ~ 85°C |
|
|
G9YAK-12S-45 DC12RELAY RF SPDT 12V |
0 |
|
Таблицы данных |
G9YA | Bulk | Obsolete | Latching, Dual Coil | 41.7 mA | 12VDC | SPDT (1 Form C) | - | - | 9.6 VDC | - | 15 ms | 15 ms | - | Chassis Mount | Solder Lug | -55°C ~ 85°C |
|
|
G9YAK-12S-45 DC28RELAY RF SPDT 28V |
0 |
|
Таблицы данных |
G9YA | Bulk | Obsolete | Latching, Dual Coil | 17.9 mA | 28VDC | SPDT (1 Form C) | - | - | 22.4 VDC | - | 15 ms | 15 ms | - | Chassis Mount | Solder Lug | -55°C ~ 85°C |
|
|
G9YAT-12S-45 DC12RELAY RF SPDT 12V |
0 |
|
Таблицы данных |
G9YA | Bulk | Obsolete | Latching, Dual Coil | - | 12VDC | SPDT (1 Form C) | - | - | - | - | 15 ms | 15 ms | TTL Driven | Chassis Mount | Solder Lug | -55°C ~ 85°C |
|
|
G6W-1F DC3RELAY RF SPDT 10MA 3V |
0 |
|
Таблицы данных |
G6W | Bulk | Obsolete | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 2.4 VDC | 0.3 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6W-1F-R DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6W | Bulk | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9.6 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6W-1P DC9RELAY RF SPDT 10MA 9V |
0 |
|
Таблицы данных |
G6W | Bulk | Obsolete | Non Latching | 22.2 mA | 9VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 7.2 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6WK-1F DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6W | Bulk | Obsolete | Latching, Dual Coil | 30 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9.6 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6WK-1F DC24RELAY RF SPDT 10MA 24V |
0 |
|
Таблицы данных |
G6W | Bulk | Obsolete | Latching, Dual Coil | 15 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 19.2 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
