Высокочастотные (РЧ) реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARE1303RELAY RF SPDT 500MA 3V |
0 |
|
Таблицы данных |
ARE | Tray | Obsolete | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARE1309RELAY RF SPDT 500MA 9V |
0 |
|
Таблицы данных |
ARE | Tube | Obsolete | Non Latching | 22.2 mA | 9VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARE1324RELAY RF SPDT 500MA 24V |
0 |
|
Таблицы данных |
ARE | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
ARE13A03ZRELAY RF SPDT 500MA 3V |
0 |
|
Таблицы данных |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE13A06RELAY RF SPDT 500MA 6V |
0 |
|
Таблицы данных |
ARE | Tube | Obsolete | Non Latching | 33.3 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | 0.6 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE13A12ZRELAY RF SPDT 500MA 12V |
0 |
|
Таблицы данных |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE13A24RELAY RF SPDT 500MA 24V |
0 |
|
Таблицы данных |
ARE | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE13A24ZRELAY RF SPDT 500MA 24V |
0 |
|
Таблицы данных |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE13A4HZRELAY RF SPDT 500MA 4.5V |
0 |
|
Таблицы данных |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

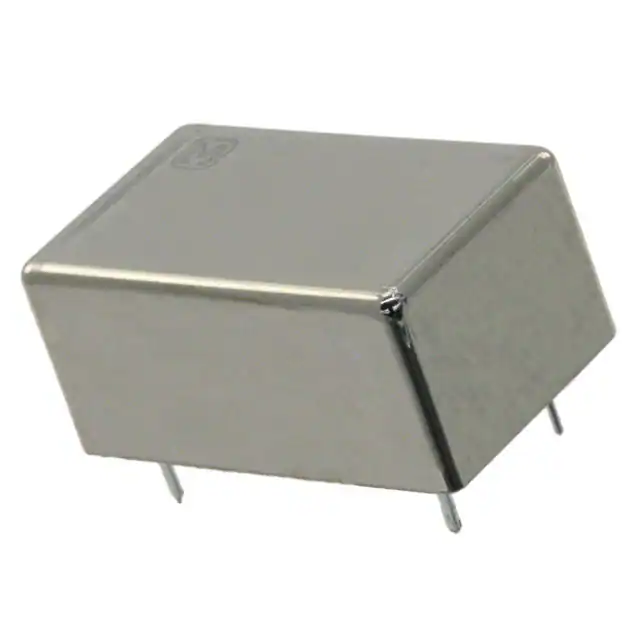

ARX1006RELAY RF SPDT 500MA 6V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Non Latching | 33.3 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | 0.6 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1012RELAY RF SPDT 500MA 12V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1024RELAY RF SPDT 500MA 24V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1103RELAY RF SPDT 500MA 3V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Latching, Single Coil | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1106RELAY RF SPDT 500MA 6V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Latching, Single Coil | 33.3 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1112RELAY RF SPDT 500MA 12V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Latching, Single Coil | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX114HRELAY RF SPDT 500MA 4.5V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Latching, Single Coil | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1206RELAY RF SPDT 500MA 6V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Latching, Dual Coil | 66.7 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1212RELAY RF SPDT 500MA 12V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Latching, Dual Coil | 33.3 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1224RELAY RF SPDT 500MA 24V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Latching, Dual Coil | 16.7 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX124HRELAY RF SPDT 500MA 4.5V |
0 |
|
Таблицы данных |
ARX | Tube | Obsolete | Latching, Dual Coil | 88.9 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
