Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX2212-560MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
120 |
|
Таблицы данных |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 56 µH | ±20% | 8.2 A | 17A | Shielded | 23.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-120MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
120 |
|
Таблицы данных |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 12 µH | ±20% | 19.5 A | 37A | Shielded | 4.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-820MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
120 |
|
Таблицы данных |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 82 µH | ±20% | 7 A | 13.8A | Shielded | 33.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-680MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
120 |
|
Таблицы данных |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 68 µH | ±20% | 7.5 A | 15A | Shielded | 30.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|

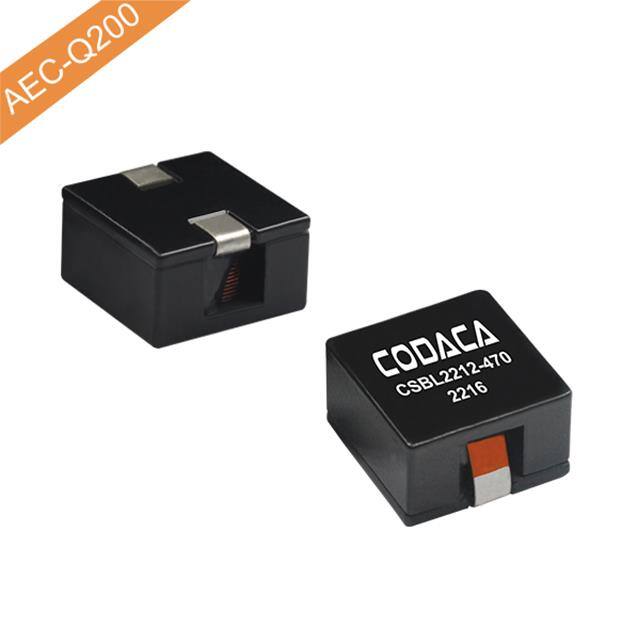

CSBL2212-330MSMD HIGH CURRENT POWER INDUCTOR CODACA |
105 |
|
Таблицы данных |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 33 µH | ±20% | 11.5 A | 18A | Shielded | 13.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|

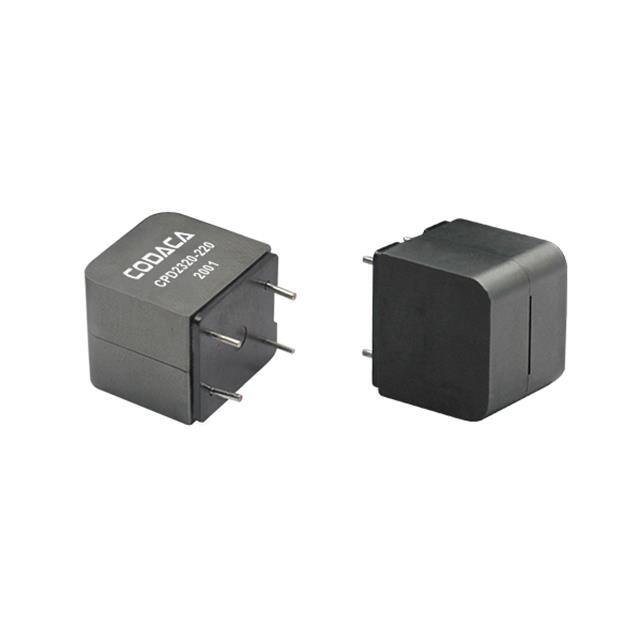

CPD2320-220MTHT CLASS D IND FOR DIGITAL AMP CODACA |
326 |
|
Таблицы данных |
CPD2320 | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 14 A | 21A | Shielded | 9.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 0.906" L x 0.787" W (23.00mm x 20.00mm) | 0.906" (23.00mm) |
|
|
CPD2315-330MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
120 |
|
Таблицы данных |
CPD2315 | Vertical, 3 PC Pin | Tray | Active | Wirewound | Ferrite | 33 µH | ±20% | 13 A | 12A | Shielded | 8.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 3 PC Pin | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) |
|
|
CPDX1310A-100MCCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
714 |
|
Таблицы данных |
CPDX1310A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 9.4 A | 28A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.571" (14.50mm) |
|
|
CPDX1310A-220MCCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
636 |
|
Таблицы данных |
CPDX1310A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 6.4 A | 18A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.571" (14.50mm) |
|
|
CSM2214-470MSMD HIGH CURRENT POWER INDUCTOR CODACA |
142 |
|
Таблицы данных |
CSM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 12.8 A | 10A | Shielded | 12.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Surface Mount | 3-SMD | 0.878" L x 0.846" W (22.30mm x 21.50mm) | 0.571" (14.50mm) |
