Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

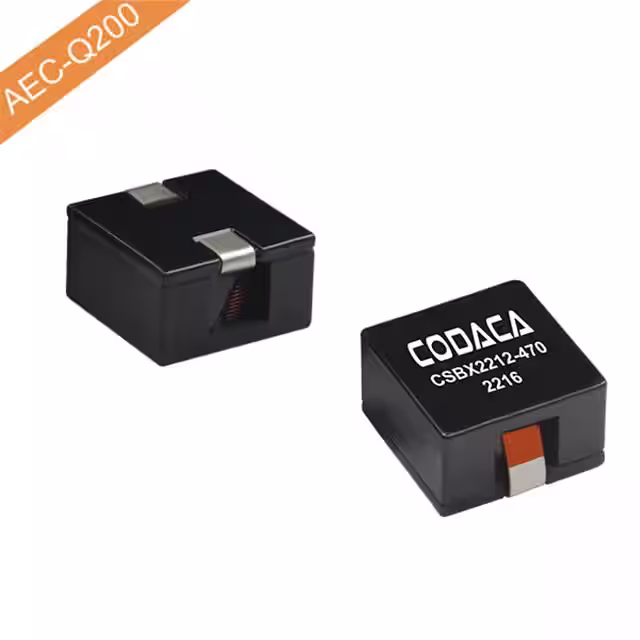

CSBX2212-220MSMD HIGH CURRENT POWER INDUCTOR CODACA |
1,350 |
|
Таблицы данных |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 15 A | 27A | Shielded | 8.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
1,347 |
|
Таблицы данных |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 21 A | 40A | Shielded | 3.88mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-150MSMD HIGH CURRENT POWER INDUCTOR CODACA |
860 |
|
Таблицы данных |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 18 A | 32A | Shielded | 5.45mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-101MSMD HIGH CURRENT POWER INDUCTOR CODACA |
810 |
|
Таблицы данных |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 100 µH | ±20% | 6.1 A | 12.5A | Shielded | 40.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-4R7MSMD HIGH CURRENT POWER INDUCTOR CODACA |
550 |
|
Таблицы данных |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 30 A | 58A | Shielded | 1.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-470MSMD HIGH CURRENT POWER INDUCTOR CODACA |
534 |
|
Таблицы данных |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 47 µH | ±20% | 9 A | 18.5A | Shielded | 21.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-3R3MSMD HIGH CURRENT POWER INDUCTOR CODACA |
488 |
|
Таблицы данных |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 32 A | 70A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-6R8MSMD HIGH CURRENT POWER INDUCTOR CODACA |
325 |
|
Таблицы данных |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 26 A | 48A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
CSBX2212-390MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
120 |
|
Таблицы данных |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 39 µH | ±20% | 9.5 A | 20.5A | Shielded | 19.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-8R2MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
120 |
|
Таблицы данных |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 24 A | 45A | Shielded | 3.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
