Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

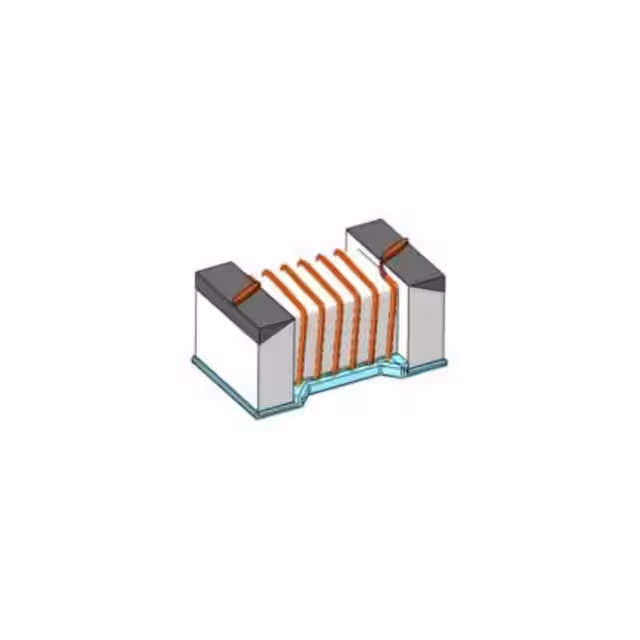

MWSD1005C51NJTM81FIXED IND 51NH 415MA 696MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 51 nH | ±5% | 415 mA | - | Unshielded | 696mOhm Max | 25 @ 250MHz | 2.9GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C75NKTFIXED IND 75NH 140MA 1.75OHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 75 nH | ±10% | 140 mA | - | Unshielded | 1.75Ohm Max | 24 @ 250MHz | 2.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
MWSD1005C6N3DTM01FIXED IND 6.3NH 700MA 90MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.3 nH | ±0.5nH | 700 mA | - | Unshielded | 90mOhm Max | 25 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C3N9DTM81FIXED IND 3.9NH 1.95A 30MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±0.5nH | 1.95 A | - | Unshielded | 30mOhm Max | 35 @ 250MHz | 10GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C75NHTFIXED IND 75NH 140MA 1.75OHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 75 nH | ±3% | 140 mA | - | Unshielded | 1.75Ohm Max | 24 @ 250MHz | 2.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
MWSD1005C12NGTFIXED IND 12NH 570MA 120MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 570 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 5.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
MWSD1005C7N5HTM01FIXED IND 7.5NH0.13OHM 570MA Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±3% | 570 mA | - | Unshielded | 130mOhm Max | 25 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
MWSD1005C9N6HTM01FIXED IND 9.6NH0.14OHM 540MA Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 9.6 nH | ±3% | 540 mA | - | Unshielded | 140mOhm Max | 25 @ 250MHz | 5.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
MWSD1005C2N8CTM81FIXED IND 2.8NH 0.047OHM 1500MA Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.8 nH | ±0.2nH | 1.5 A | - | Unshielded | 47mOhm Max | 27 @ 250MHz | 13.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
MWSD1005C15NJTM01FIXED IND 15NH0.16OHM 460MA Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 460 mA | - | Unshielded | 160mOhm Max | 30 @ 250MHz | 5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
