Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWSD1005CHR15HSTFFIXED IND 150NH 240MA 2 OHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-CH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±3% | 240 mA | - | Unshielded | 2Ohm Max | 29 @ 250MHz | - | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|

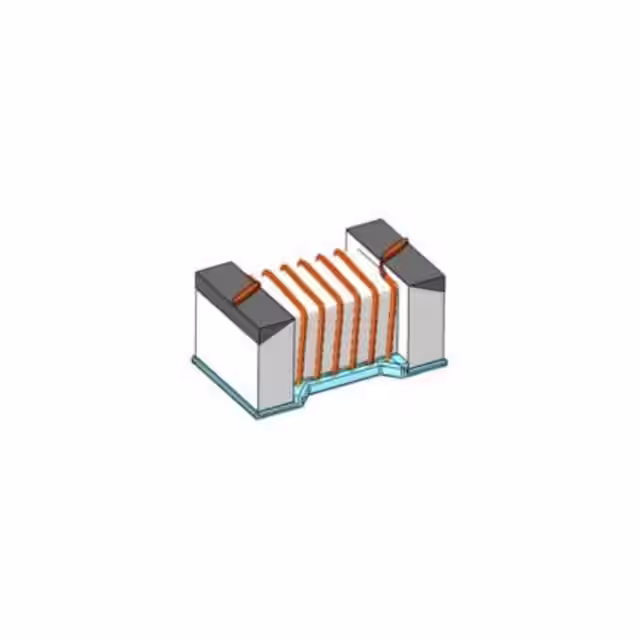

MWSD1005C3N8BTM81FIXED IND 3.8NH 1.95A 30MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.8 nH | ±0.1nH | 1.95 A | - | Unshielded | 30mOhm Max | 35 @ 250MHz | 10GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C5N7STM81FIXED IND 5.7NH 1.77A 40MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.7 nH | ±0.3nH | 1.77 A | - | Unshielded | 40mOhm Max | 30 @ 250MHz | 8GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
MWSD1005C5N8DTM01FIXED IND 5.8NH 700MA 120MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.8 nH | ±0.5nH | 700 mA | - | Unshielded | 120mOhm Max | 25 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C26NJTM81FIXED IND 26NH 720MA 282MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 26 nH | ±5% | 720 mA | - | Unshielded | 282mOhm Max | 29 @ 250MHz | 4.1GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C3N1DTM01FIXED IND 3.1NH 570MA 130MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.1 nH | ±0.5nH | 570 mA | - | Unshielded | 130mOhm Max | 20 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C36NJTM81FIXED IND 36NH 540MA 431MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±5% | 540 mA | - | Unshielded | 431mOhm Max | 30 @ 250MHz | 3.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C4N4DTM81FIXED IND 4.4NH 1.6A 52MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.4 nH | ±0.5nH | 1.6 A | - | Unshielded | 52mOhm Max | 34 @ 250MHz | 9.6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C6N2JTFIXED IND 6.2NH 710MA 78MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.2 nH | ±5% | 710 mA | - | Unshielded | 78mOhm Max | 25 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C9N3GTM81FIXED IND 9.3NH 1.4A 81MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 9.3 nH | ±2% | 1.4 A | - | Unshielded | 81mOhm Max | 34 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
