Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60B683CFIXED IND 68UH 9A 17 MOHM SMD Murata Power Solutions Inc. |
120 |
|
Таблицы данных |
6000B | Nonstandard | Tray | Active | Wirewound | - | 68 µH | ±15% | 9 A | - | Unshielded | 17mOhm Max | - | 6.07MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
29332CFIXED IND 3.3UH 4A 28 MOHM SMD Murata Power Solutions Inc. |
4,318 |
|
Таблицы данных |
2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | - | 4 A | - | Shielded | 28mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.157" (4.00mm) |
|
|
29105CFIXED IND 1MH 180MA 4.1 OHM SMD Murata Power Solutions Inc. |
1,186 |
|
Таблицы данных |
2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | - | 180 mA | - | Shielded | 4.1Ohm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.157" (4.00mm) |
|
84153CFIXED IND 15UH 750MA 450MOHM SMD Murata Power Solutions Inc. |
1,990 |
|
Таблицы данных |
8400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±10% | 750 mA | - | Unshielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.177" L x 0.130" W (4.50mm x 3.30mm) | 0.114" (2.90mm) |
|
|
84102CFIXED IND 1UH 2.8A 80 MOHM SMD Murata Power Solutions Inc. |
1,820 |
|
Таблицы данных |
8400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 2.8 A | - | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.177" L x 0.130" W (4.50mm x 3.30mm) | 0.114" (2.90mm) |
|
244R7CFIXED IND 4.7UH 2.1A 50 MOHM SMD Murata Power Solutions Inc. |
1,397 |
|
Таблицы данных |
2400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | - | 2.1 A | - | Unshielded | 50mOhm Max | - | 45MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|

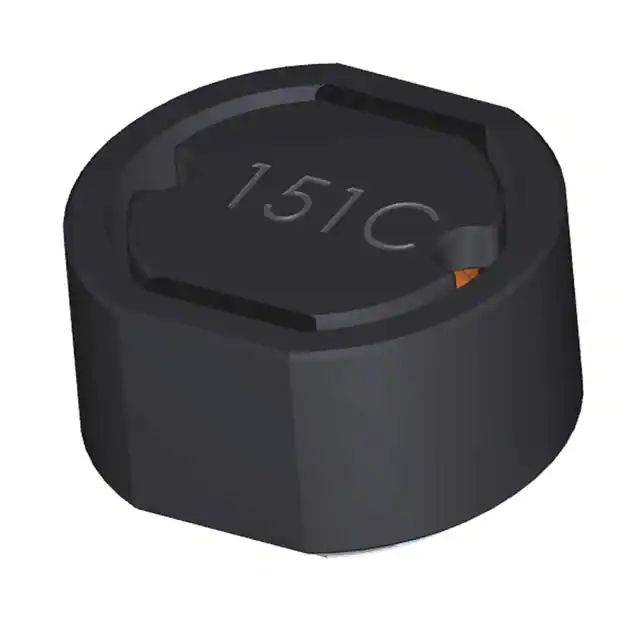

24S101CFIXED IND 100UH 520MA 540MOHM SM Murata Power Solutions Inc. |
1,136 |
|
Таблицы данных |
2400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | - | 520 mA | - | Shielded | 540mOhm Max | - | 6.2MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.303" L x 0.280" W (7.70mm x 7.10mm) | 0.177" (4.50mm) |
|
82222CFIXED IND 2.2UH 1.1A 104MOHM SMD Murata Power Solutions Inc. |
1,619 |
|
Таблицы данных |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1.1 A | - | Unshielded | 104mOhm Max | 18 @ 1MHz | 85MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
36401CFIXED IND 400NH 14.5A 4 MOHM SMD Murata Power Solutions Inc. |
2,276 |
|
Таблицы данных |
3600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 400 nH | ±25% | 14.5 A | - | Unshielded | 4mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.165" (4.20mm) |
|
18R155CFIXED IND 1.5MH 330MA 1.5 OHM TH Murata Power Solutions Inc. |
111 |
|
Таблицы данных |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 1.5 mH | ±10% | 330 mA | - | Unshielded | 1.5Ohm Max | 106 @ 50kHz | 1.6MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
