Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18R224CFIXED IND 220UH 900MA 230MOHM TH Murata Power Solutions Inc. |
114 |
|
Таблицы данных |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 220 µH | ±10% | 900 mA | - | Unshielded | 230mOhm Max | 39 @ 100kHz | 4MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
19R333CFIXED IND 33UH 3.7A 32 MOHM TH Murata Power Solutions Inc. |
618 |
|
Таблицы данных |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 33 µH | ±10% | 3.7 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R105CFIXED IND 1MH 730MA 844 MOHM TH Murata Power Solutions Inc. |
265 |
|
Таблицы данных |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 1 mH | ±10% | 730 mA | - | Unshielded | 844mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R683CFIXED IND 68UH 2.9A 55 MOHM TH Murata Power Solutions Inc. |
195 |
|
Таблицы данных |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 68 µH | ±10% | 2.9 A | - | Unshielded | 55mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R335CFIXED IND 3.3MH 420MA 2.5 OHM TH Murata Power Solutions Inc. |
159 |
|
Таблицы данных |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 3.3 mH | ±10% | 420 mA | - | Unshielded | 2.5Ohm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R686CFIXED IND 68MH 90MA 57 OHM TH Murata Power Solutions Inc. |
142 |
|
Таблицы данных |
1900R | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 68 mH | ±10% | 90 mA | - | Unshielded | 57Ohm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R226CFIXED IND 22MH 150MA 22 OHM TH Murata Power Solutions Inc. |
127 |
|
Таблицы данных |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 22 mH | ±10% | 150 mA | - | Unshielded | 22Ohm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|

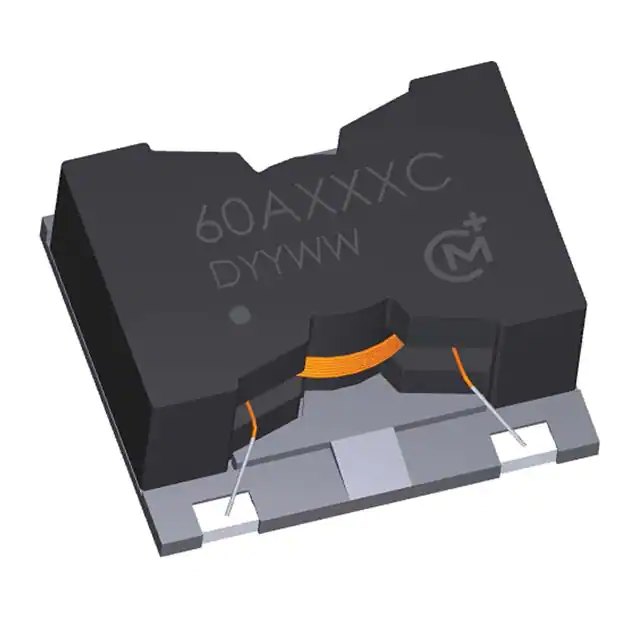

60A413CFIXED IND 41UH 5.6A 26 MOHM SMD Murata Power Solutions Inc. |
273 |
|
Таблицы данных |
6000A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 41 µH | ±10% | 5.6 A | 8.4A | Unshielded | 26mOhm Max | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.748" W (22.00mm x 19.00mm) | 0.472" (12.00mm) |
|
83223CFIXED IND 22UH 500MA 350MOHM SMD Murata Power Solutions Inc. |
3,349 |
|
Таблицы данных |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 22 µH | ±20% | 500 mA | 740mA | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
|
83103CFIXED IND 10UH 750MA 185MOHM SMD Murata Power Solutions Inc. |
2,441 |
|
Таблицы данных |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10 µH | ±20% | 750 mA | 1.04A | Unshielded | 185mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
