БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

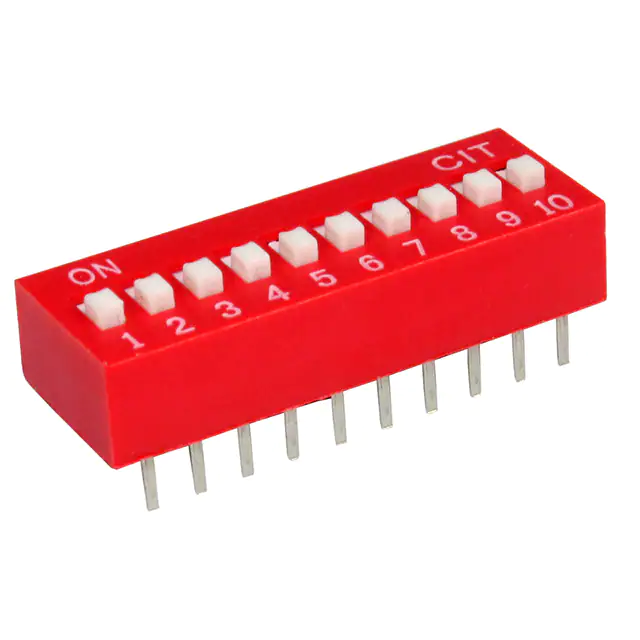

KG10ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
216 |
|
Таблицы данных |
KG | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

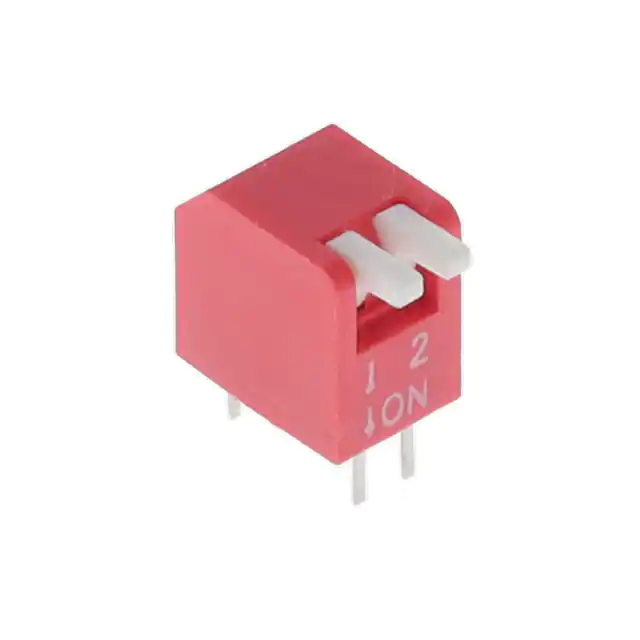

KP02ESWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
488 |
|
Таблицы данных |
KP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

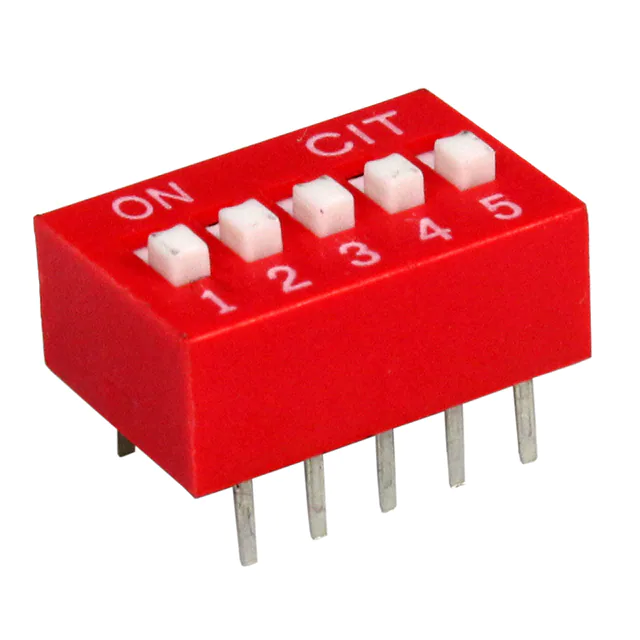

KG05ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
643 |
|
Таблицы данных |
KG | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT01EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
121 |
|
Таблицы данных |
KT | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

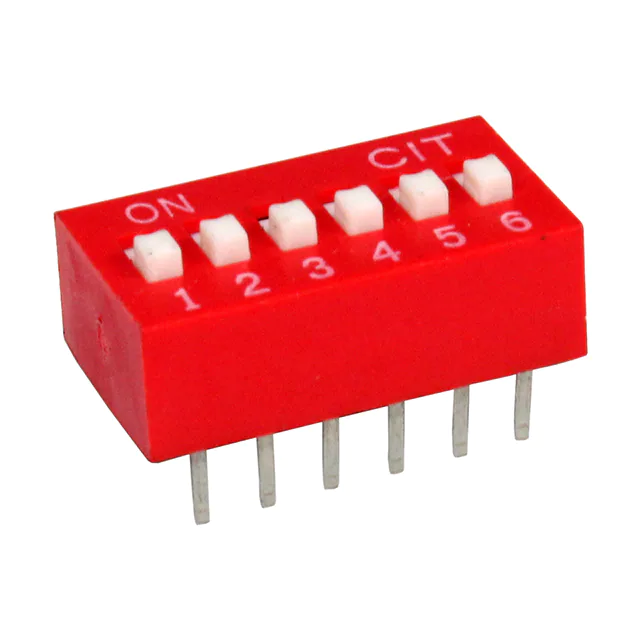

KG06ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
758 |
|
Таблицы данных |
KG | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

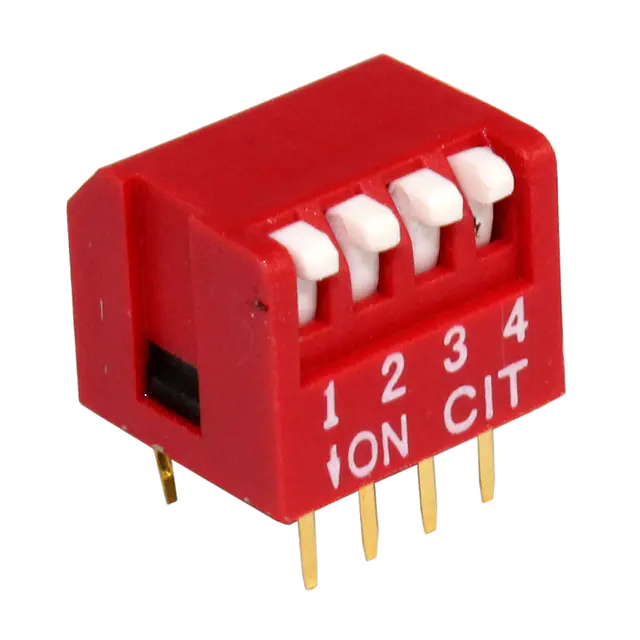

KP04RSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
664 |
|
Таблицы данных |
KP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG09ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
523 |
|
Таблицы данных |
KG | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

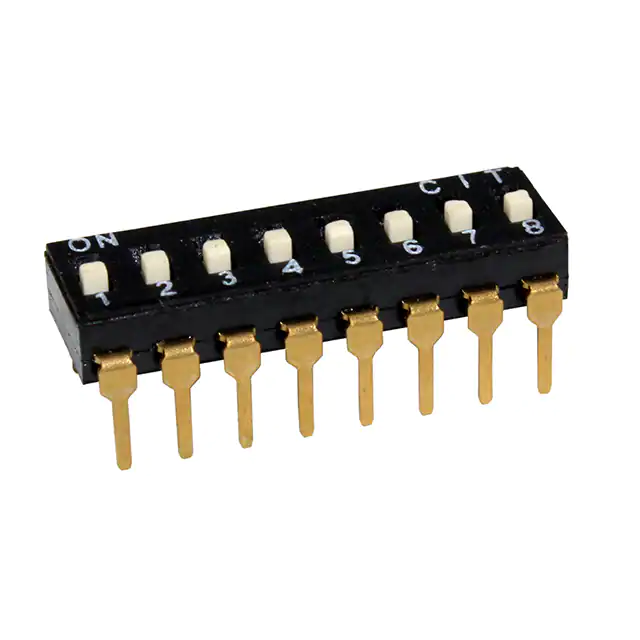

KT08EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
31 |
|
Таблицы данных |
KT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

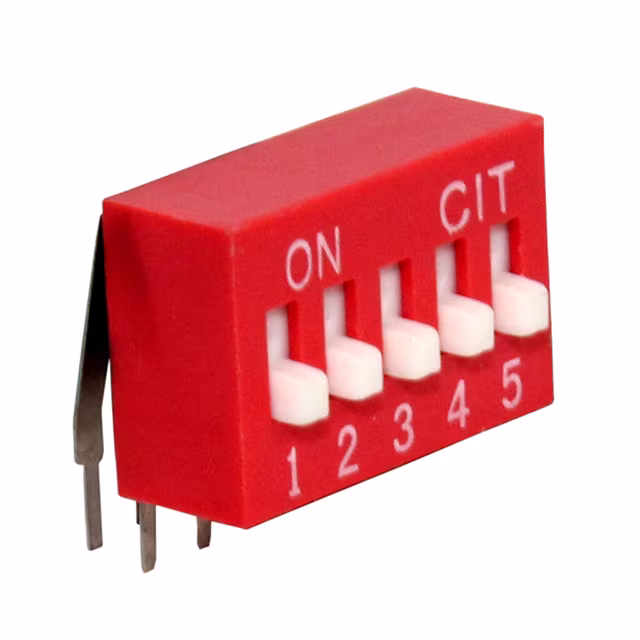

KR05ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
77 |
|
Таблицы данных |
KR | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

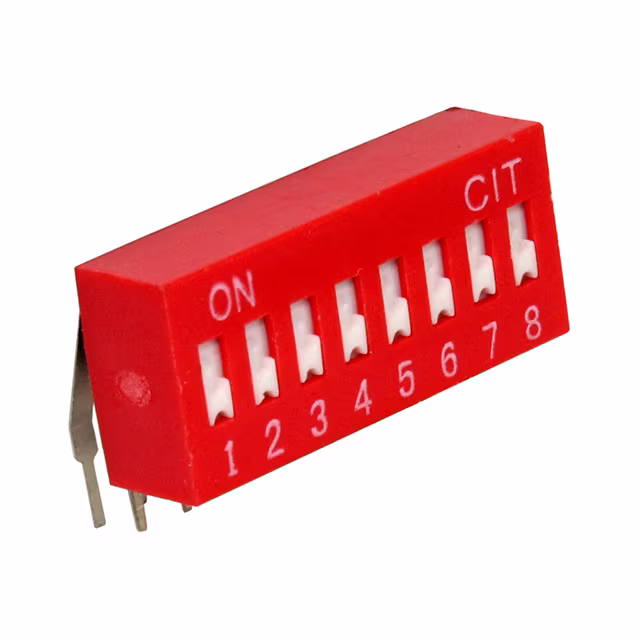

KR08RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
48 |
|
Таблицы данных |
KR | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
