БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KE10RTGRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,956 |
|
Таблицы данных |
KE | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
RD10RA8RVATSW ROTARY DIP OCTAL 0.15A 50V CIT Relay and Switch |
408 |
|
Таблицы данных |
RD10 | Tube | Active | Octal | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RA10RGTSWITCH ROTARY DIP BCD 0.15A 50V CIT Relay and Switch |
274 |
|
Таблицы данных |
RD10 | Tube | Active | BCD | 10 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD07A16RTTSWITCH ROTARY DIP HEX 0.1A 50V CIT Relay and Switch |
630 |
|
Таблицы данных |
RD07 | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RA10CTTSW ROTARY DIP BCD COMP 0.15A 50V CIT Relay and Switch |
167 |
|
Таблицы данных |
RD10 | Tube | Active | BCD Complement | 10 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RA10CGRSW ROTARY DIP BCD COMP 0.15A 50V CIT Relay and Switch |
763 |
|
Таблицы данных |
RD10 | Tape & Reel (TR) | Active | BCD Complement | 10 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

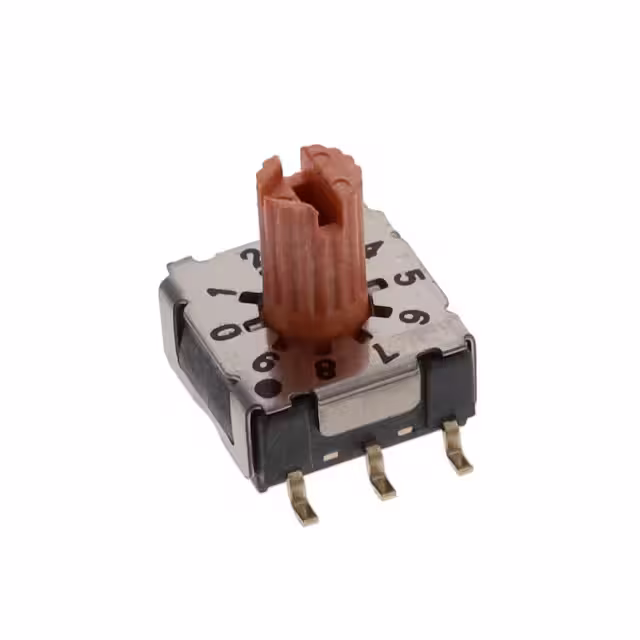

RD07B10CGTSW ROTARY DIP BCD COMP 0.1A 50V CIT Relay and Switch |
203 |
|
Таблицы данных |
RD07 | Tube | Active | BCD Complement | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.344" (8.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD07A16CGTSW ROTARY DIP HEX COMP 0.1A 50V CIT Relay and Switch |
188 |
|
Таблицы данных |
RD07 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

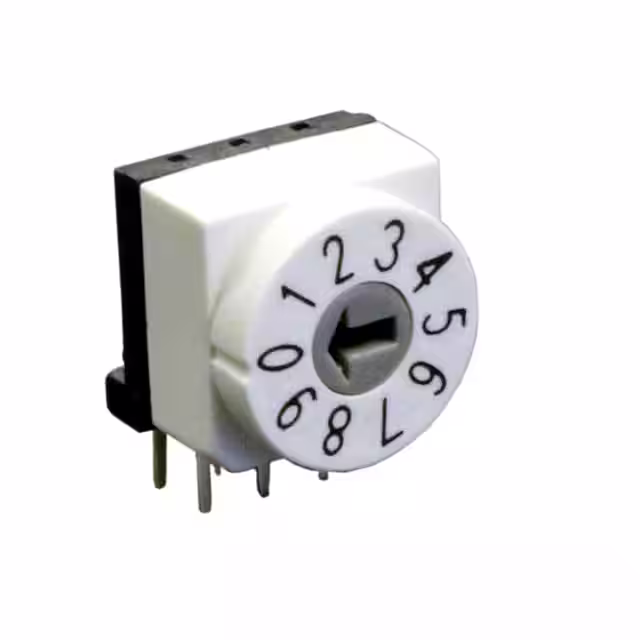

RD10RA10RVATSWITCH ROTARY DIP BCD 0.15A 50V CIT Relay and Switch |
159 |
|
Таблицы данных |
RD10 | Tube | Active | BCD | 10 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RA8RGTSW ROTARY DIP OCTAL 0.15A 50V CIT Relay and Switch |
190 |
|
Таблицы данных |
RD10 | Tube | Active | Octal | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
