БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9-435626-0SWITCH ROCKER DIP SPST |
0 |
|
Таблицы данных |
7000 | Tape & Reel (TR) | Obsolete | SPST | 6 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|

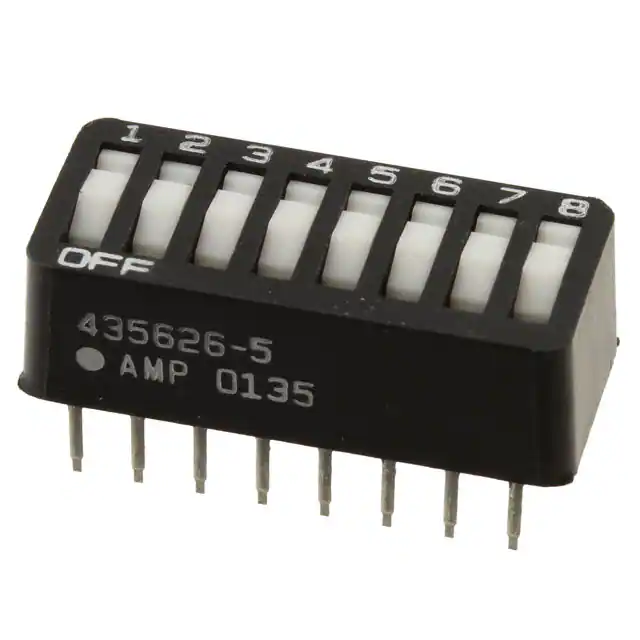

5-435626-5SWITCH ROCKER DIP SPST |
0 |
|
Таблицы данных |
7000 | Tape & Reel (TR) | Obsolete | SPST | 8 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | No | - | - |
|

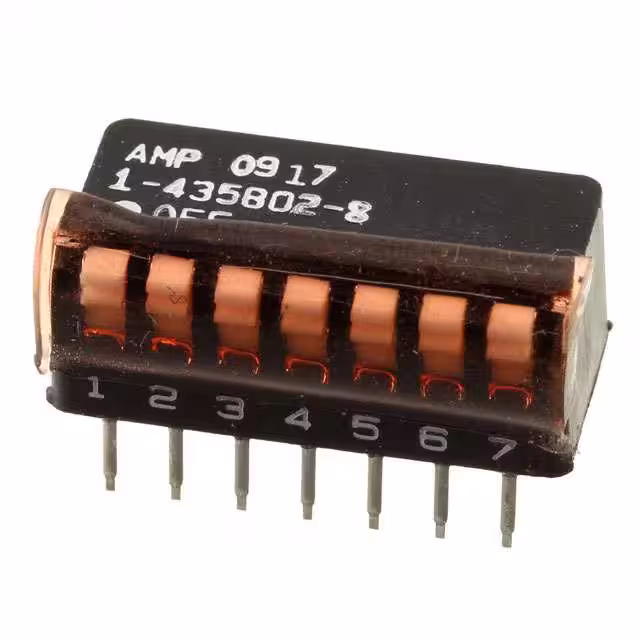

1-5435802-8SWITCH PIANO DIP SPST RA |
0 |
|
Таблицы данных |
7000 | Tape & Reel (TR) | Obsolete | SPST | 7 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|

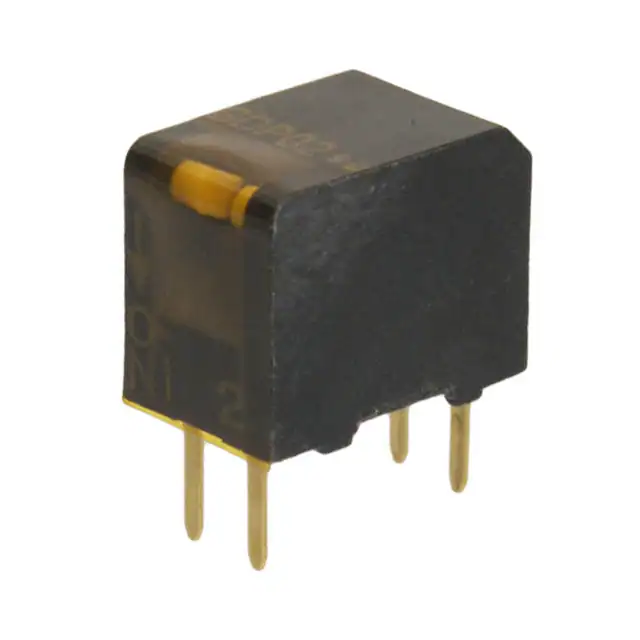

1571998-1SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
GDP | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

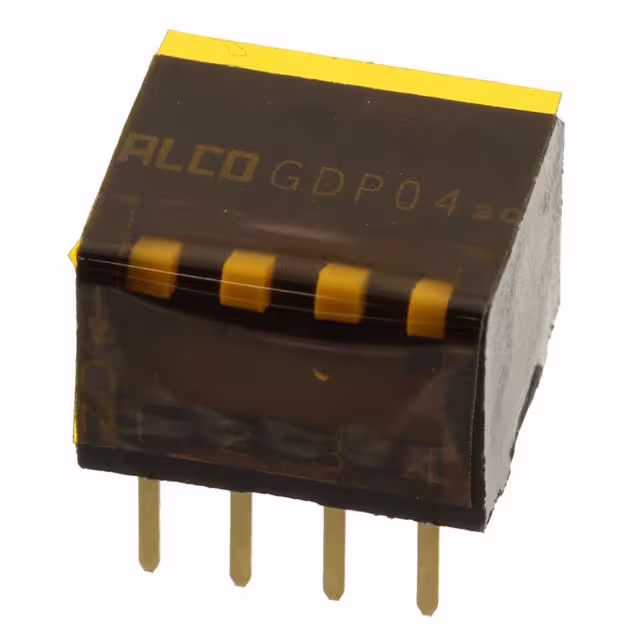

1571998-5SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
GDP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

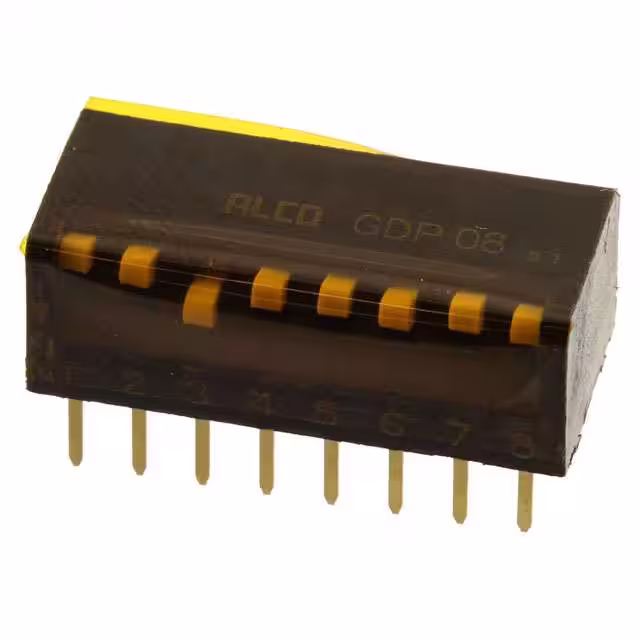

1-1571998-3SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
- |
GDP | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
1825013-1SWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Таблицы данных |
MRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
1825013-9SWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Таблицы данных |
MRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
1-1825013-9SWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
Таблицы данных |
MRD | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
DRAR10HBSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRKR16PSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 0.508" (12.91mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRSR16PSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper | Gold | 0.354" (9.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRFC10HSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRFR16HSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRFR10HSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRFC16HSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRFR10PSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRFR16PSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRFC10PSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRFC16PSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Таблицы данных |
DR | Tray | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
