БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

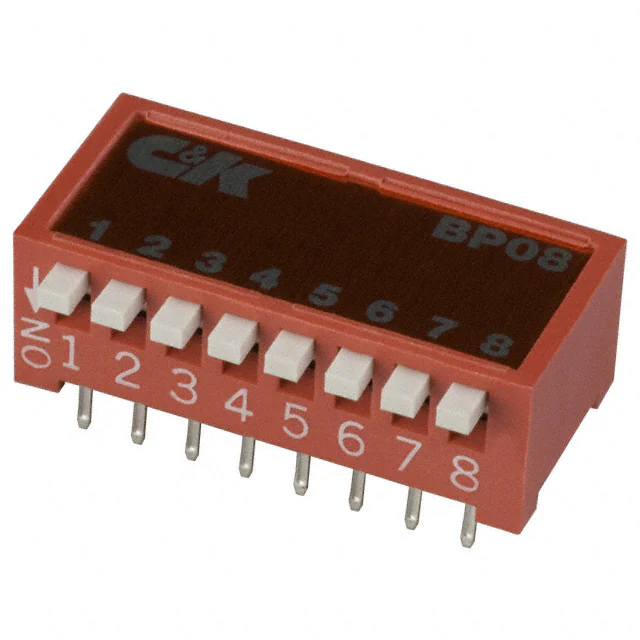

BP08KTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 8 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|
|
BP08YESWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 8 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 60°C |
|
CD08RM0SKSW ROTARY DIP OCTAL 0.4VA 20V |
0 |
|
Таблицы данных |
CD | Bag | Obsolete | Octal | 8 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
CD16CM0SKSW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Таблицы данных |
CD | Bag | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|

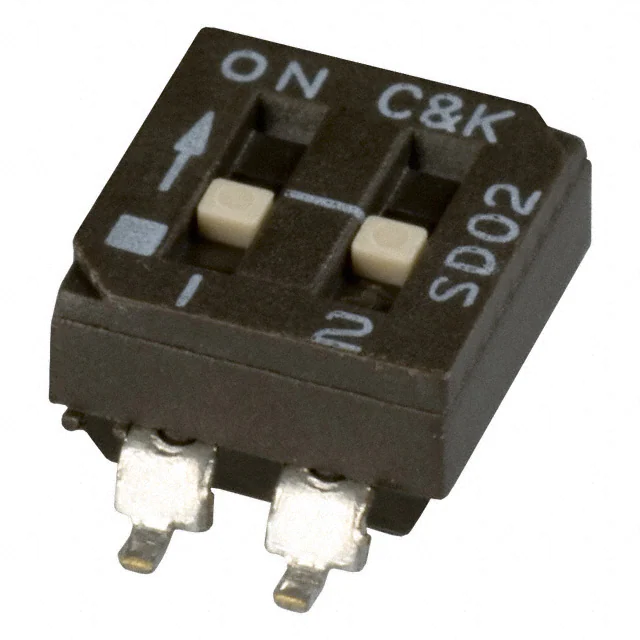

SD02H1SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Таблицы данных |
SD | Tube | Obsolete | SPST | 2 | 100mA | 25VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
SD04H1SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Таблицы данных |
SD | Tube | Obsolete | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

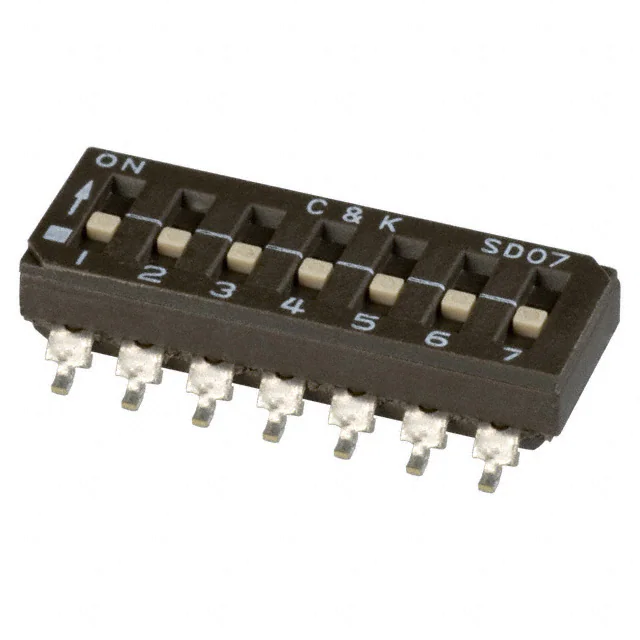

SD07H1SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Таблицы данных |
SD | Tube | Obsolete | SPST | 7 | 100mA | 25VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
SD08H0SKDSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Таблицы данных |
SD | Tube | Obsolete | SPST | 8 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.155" (3.94mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SD08H1SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Таблицы данных |
SD | Tube | Obsolete | SPST | 8 | 100mA | 25VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
SD08H1SKDSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Таблицы данных |
SD | Tube | Obsolete | SPST | 8 | 100mA | 25VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

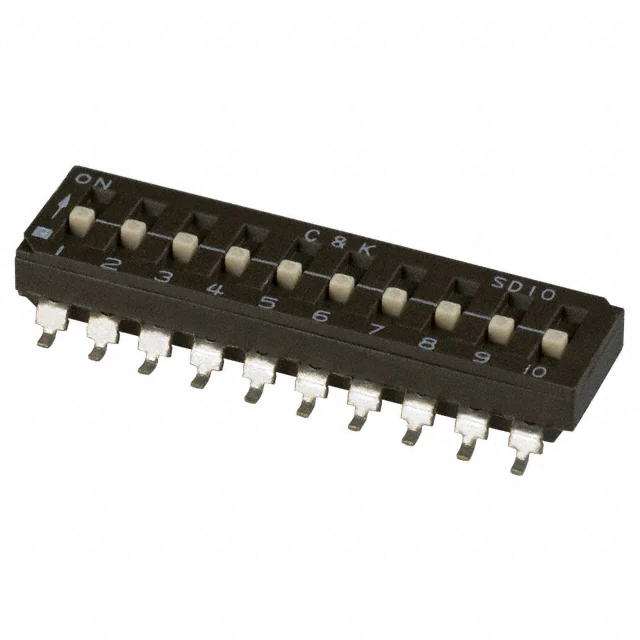

SD10H1SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Таблицы данных |
SD | Tube | Obsolete | SPST | 10 | 100mA | 25VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
RTE0200N03SWITCH ROTARY DIP SPDT 0.1A 30V |
0 |
|
Таблицы данных |
RTE | Bag | Obsolete | SPDT | 2 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0300N03SWITCH ROTARY DIP SP3T 0.1A 30V |
0 |
|
Таблицы данных |
RTE | Tube | Obsolete | SP3T | 3 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0201N03SWITCH ROTARY DIP SPDT 0.1A 30V |
0 |
|
Таблицы данных |
RTE | Bag | Obsolete | SPDT | 2 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE1000R13SWITCH ROTARY DIP BCD 0.1A 30V |
0 |
|
Таблицы данных |
RTE | Bag | Obsolete | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | - | Through Hole, Reverse | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE1600V43SWITCH ROTARY DIP HEX 0.1A 30V |
0 |
|
Таблицы данных |
RTE | Bag | Obsolete | Hexadecimal | 16 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
KAW2104RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
KAW | Bag | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | - |
|
|
94HAC16SW ROTARY DIP HEX COMP 0.1A 50V |
0 |
|
Таблицы данных |
94H | Bag | Obsolete | Hexadecimal Complement | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
78H01SWITCH SLIDE DIP 4PST 0.15A 30V |
0 |
|
- |
78 | Bag | Obsolete | 4PST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
97R10SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
97 | Bag | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
