DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDA09H0SKDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA10H0SKDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA12H0SKDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA02H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA03H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA04H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA05H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA06H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA07H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA08H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA09H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA10H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA12H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

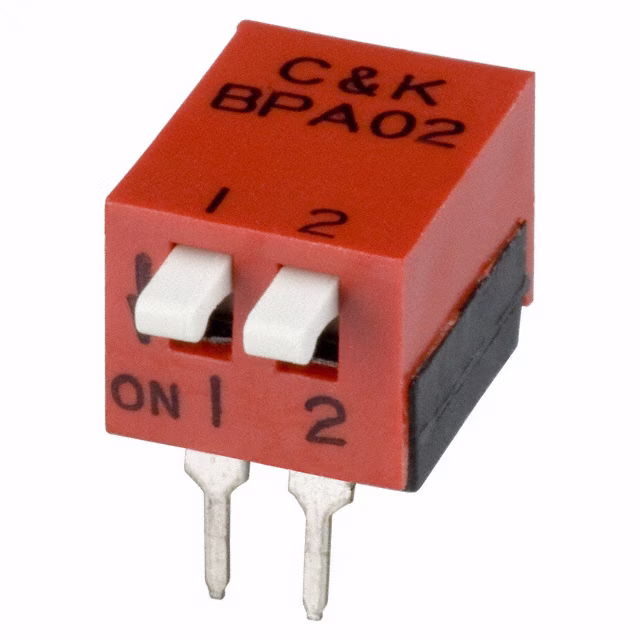

BPA02KSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BPA | Bag | Obsolete | SPST | 2 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

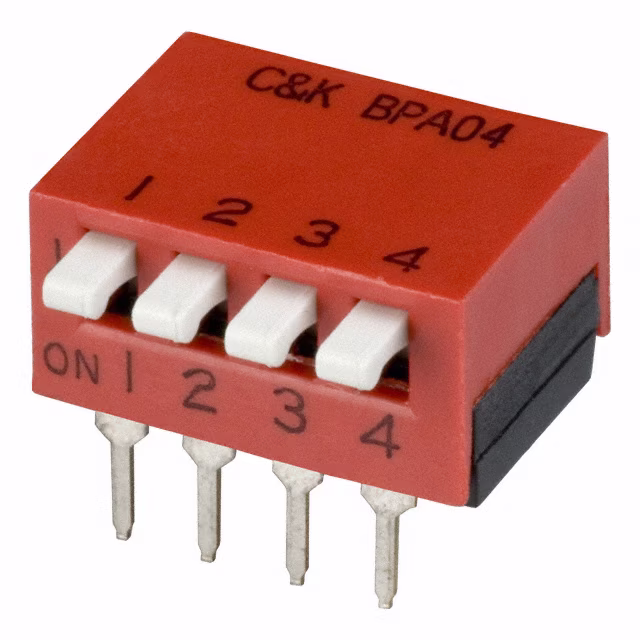

BPA04KSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BPA | Bag | Obsolete | SPST | 4 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

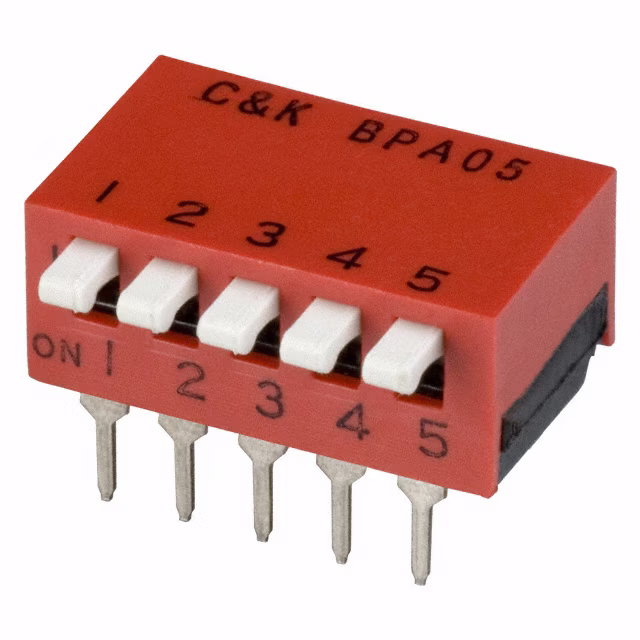

BPA05KSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BPA | Bag | Obsolete | SPST | 5 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

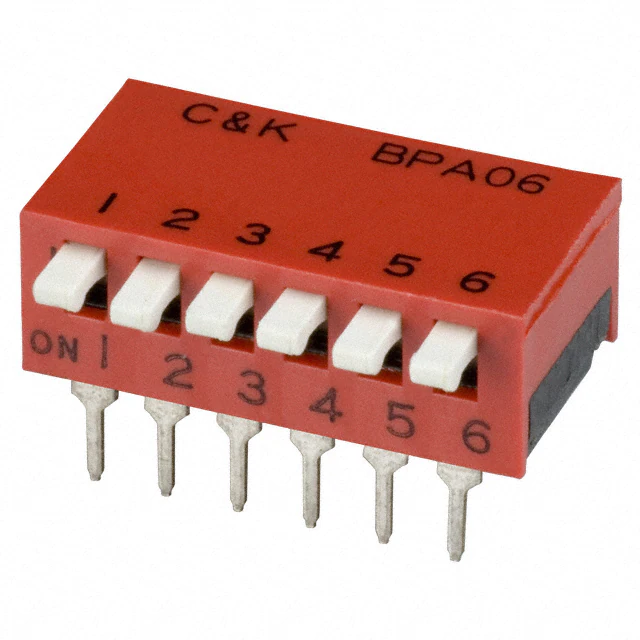

BPA06KSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BPA | Bag | Obsolete | SPST | 6 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
BPA07KSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BPA | Bag | Obsolete | SPST | 7 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

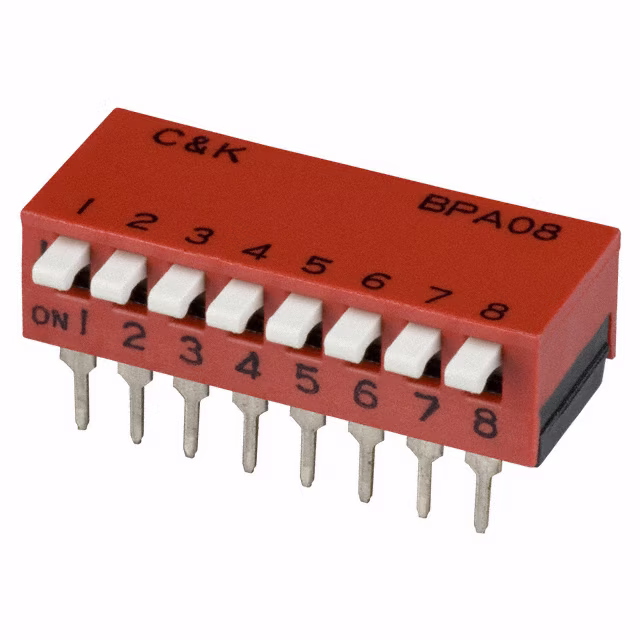

BPA08KSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BPA | Bag | Obsolete | SPST | 8 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

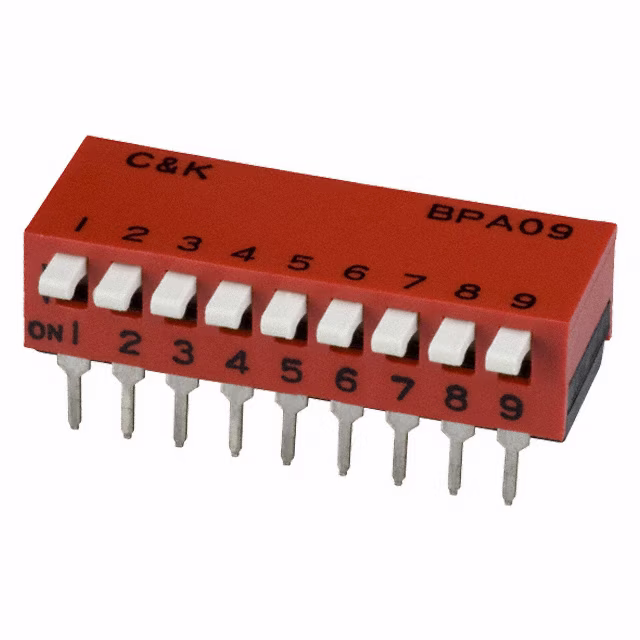

BPA09KSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BPA | Bag | Obsolete | SPST | 9 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
