DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6S-4104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
A6S | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-5104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
A6S | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-6104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
A6S | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-7104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
A6S | Bag | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6S-8104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
A6S | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6S-9104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
A6S | Bag | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-0104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
A6S | Bag | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
94HBB08WSWITCH ROTARY DIP OCTAL 0.1A 50V |
0 |
|
Таблицы данных |
94H | Bag | Obsolete | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|

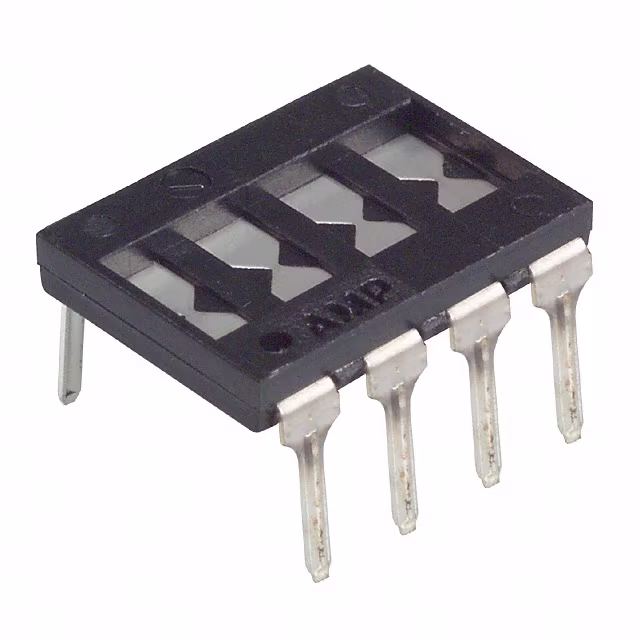

435704-4SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Таблицы данных |
7600 | Tube | Obsolete | Programmable | 4 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|

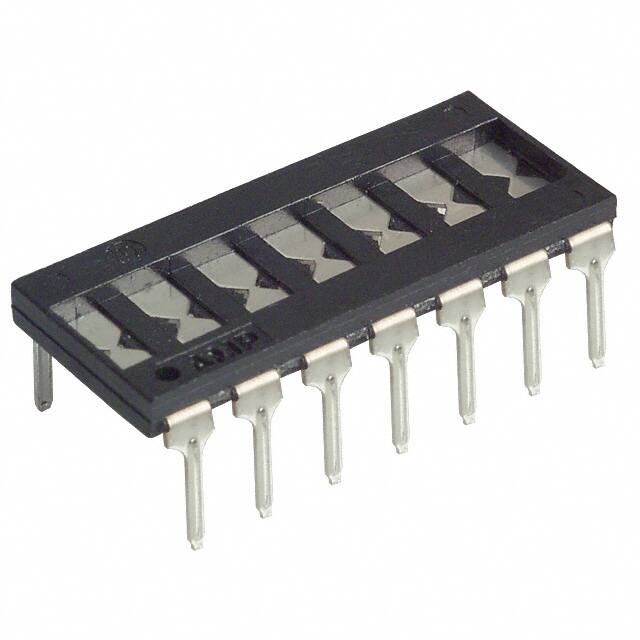

435704-7SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Таблицы данных |
7600 | Tube | Obsolete | Programmable | 7 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|

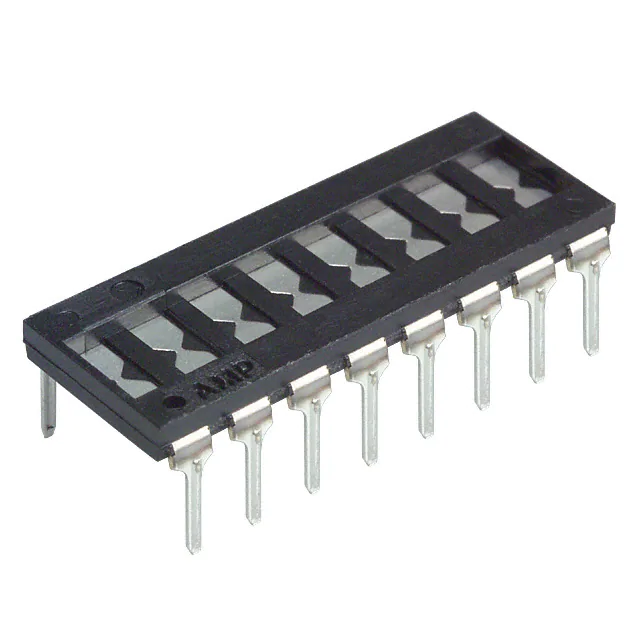

435704-8SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Таблицы данных |
7600 | Tube | Obsolete | Programmable | 8 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|

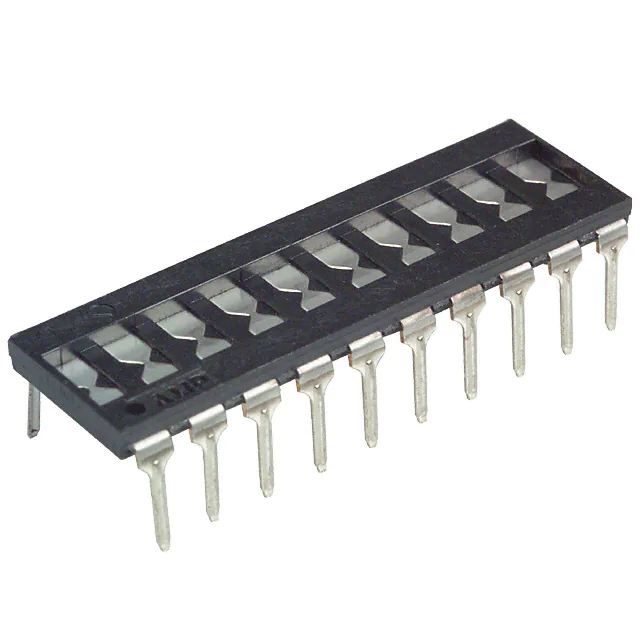

1-435704-0SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Таблицы данных |
7600 | Tube | Obsolete | Programmable | 10 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|

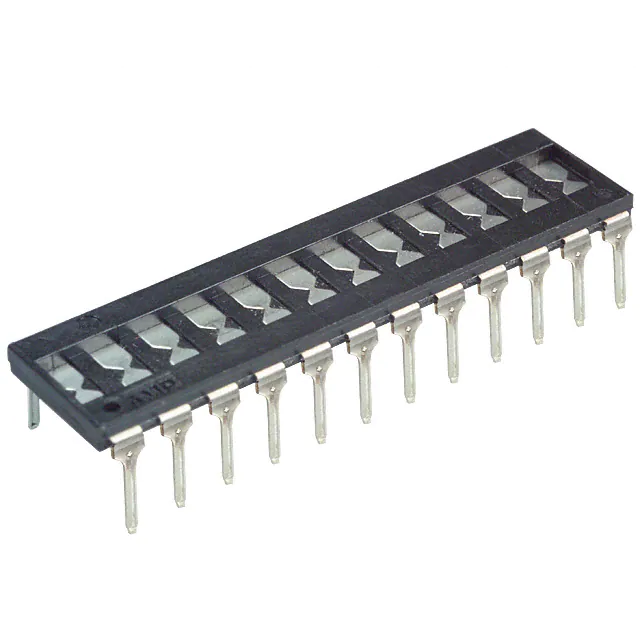

1-435704-2SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Таблицы данных |
7600 | Tube | Obsolete | Programmable | 12 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|
|
SDA02H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA03H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA04H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA05H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA06H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA07H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA08H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
