DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

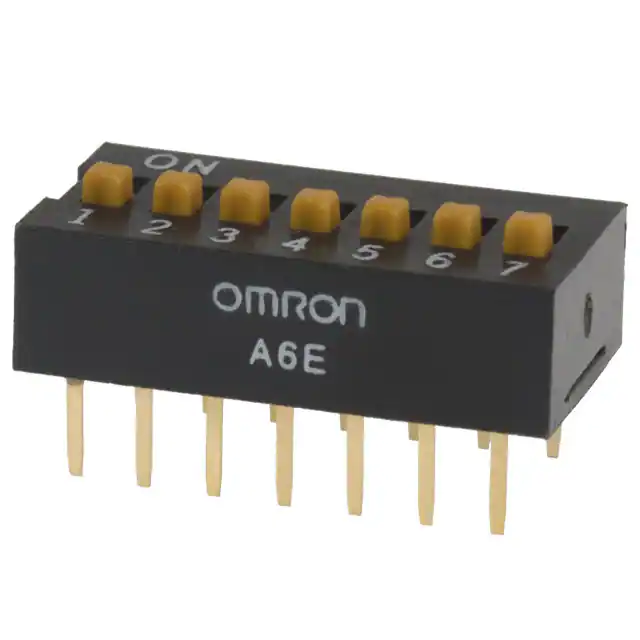

A6E-7104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-8101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

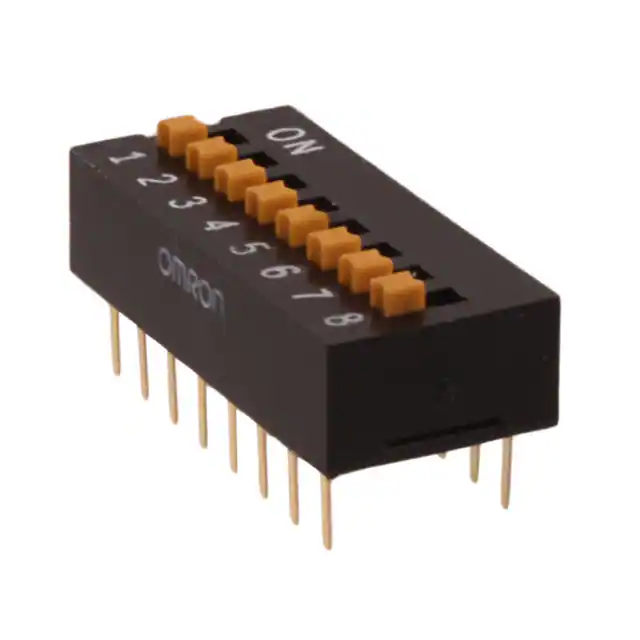

A6E-8104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6E-9101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tray | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

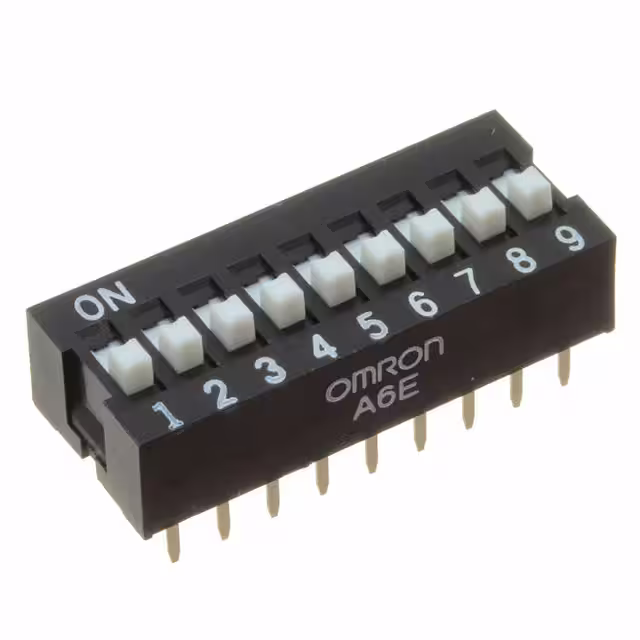

A6E-9104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tray | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-0101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6ER | Tray | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

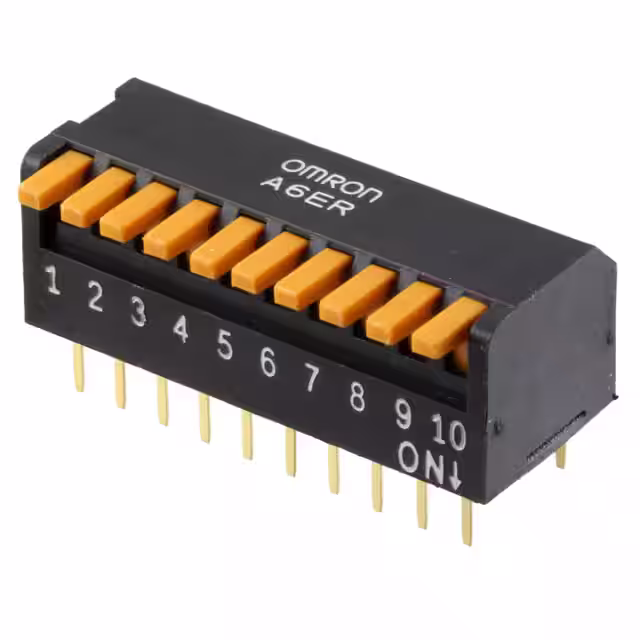

A6ER-0104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6ER | Tray | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

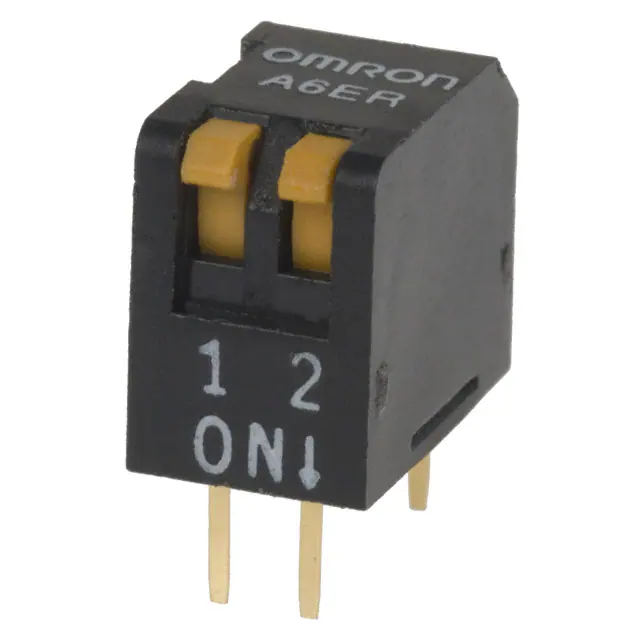

A6ER-2101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6ER | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

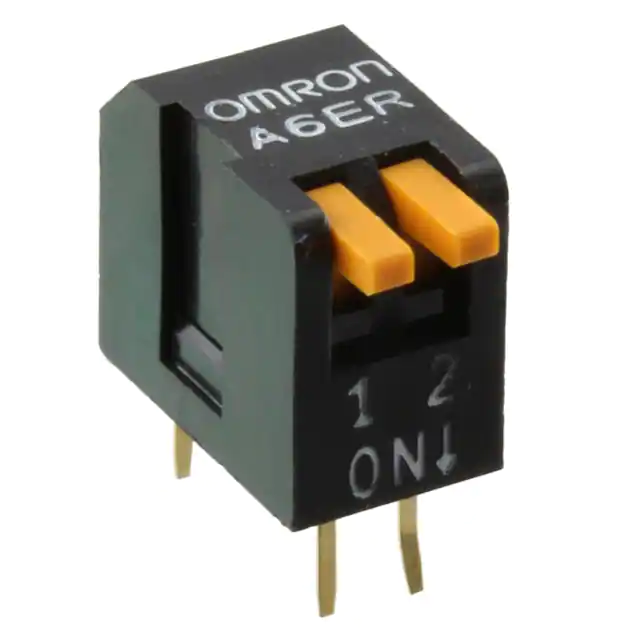

A6ER-2104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6ER | Tray | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-3104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6ER | Tray | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
