БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6E-2101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

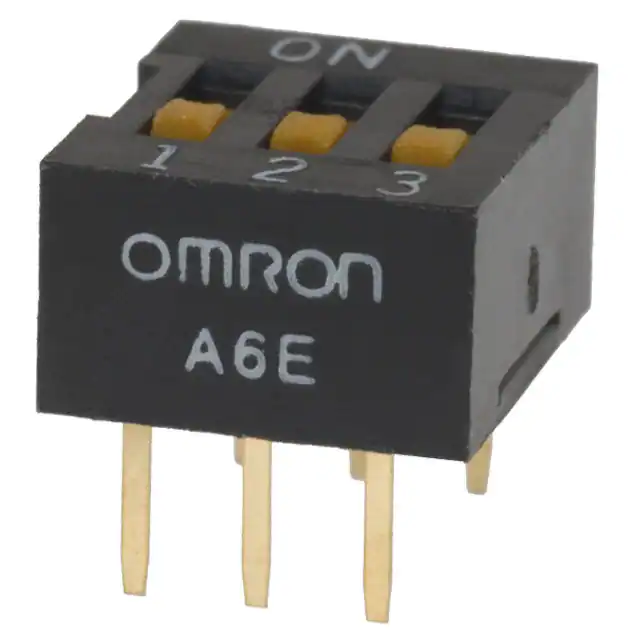

A6E-3101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-3104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

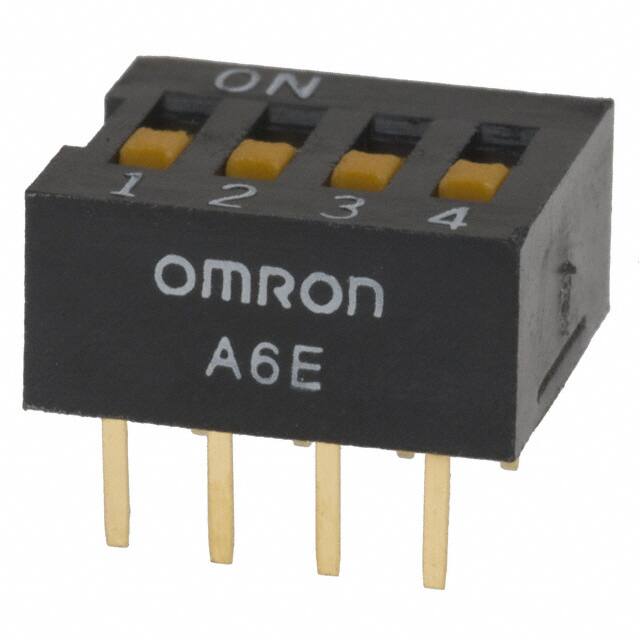

A6E-4101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-4104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

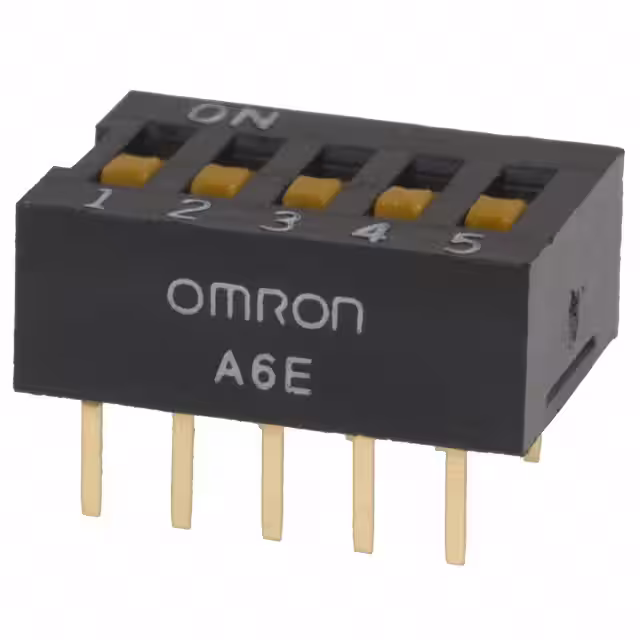

A6E-5101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-5104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-6101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

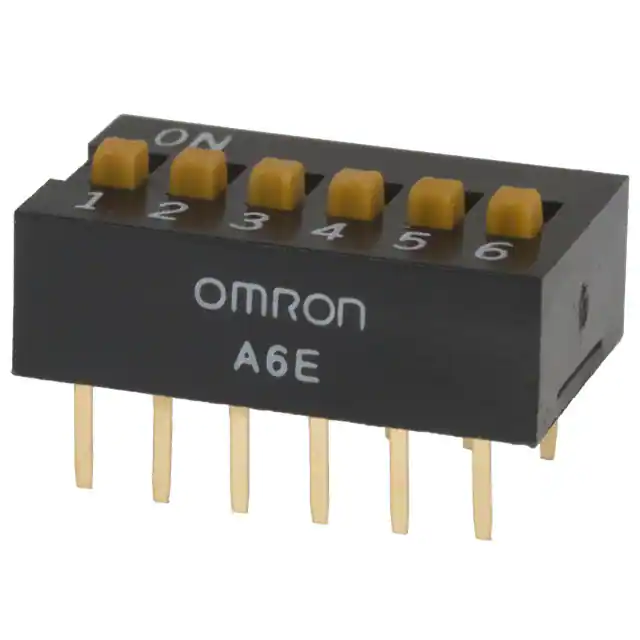

A6E-6104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

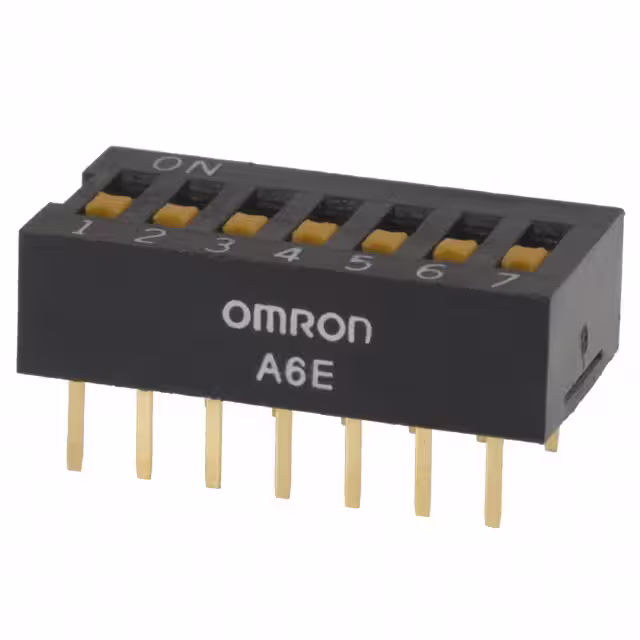

A6E-7101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
