DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6S-1102-PHSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6S-H | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6SR-4104-PSWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6SR | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

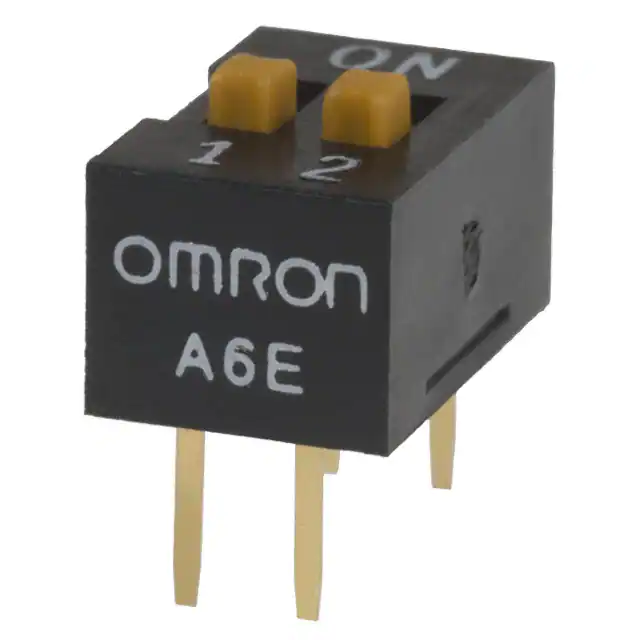

A6E-2104-NSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6E-N | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

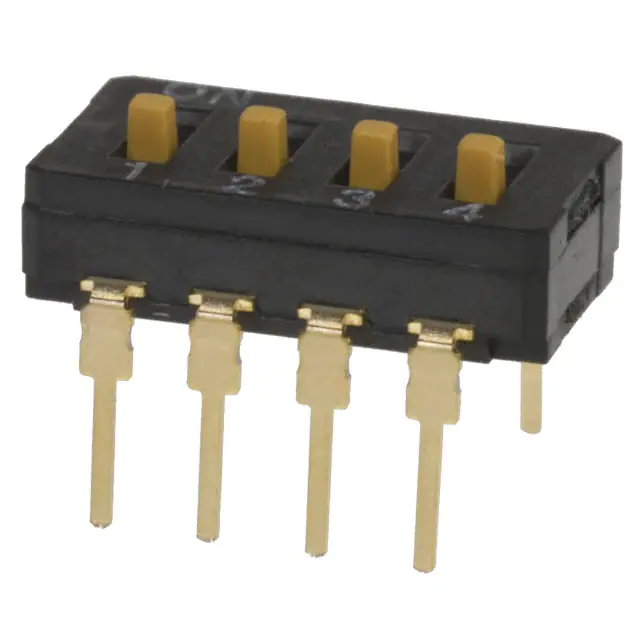

A6D-4103SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6D | Tube | Active | SPST | 4 | 30mA | 30VDC | Slide (Standard) | Raised | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
A6KSV-164RSSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6KS | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|

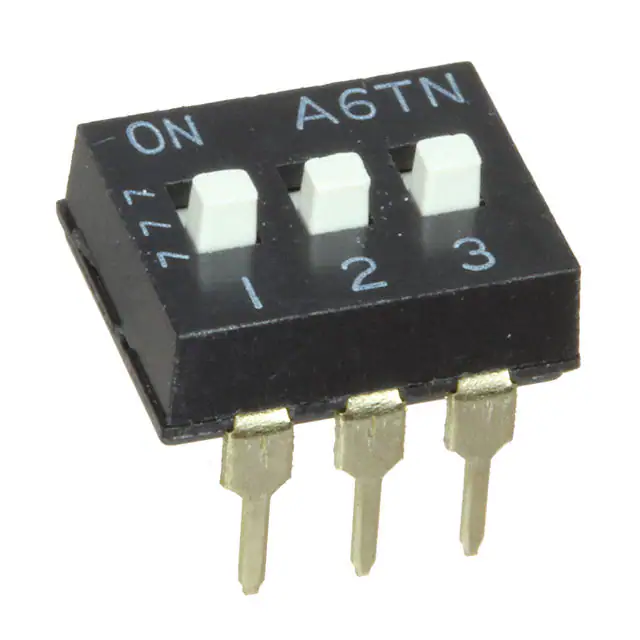

A6TN-3104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
8 |
|
Таблицы данных |
A6TN | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

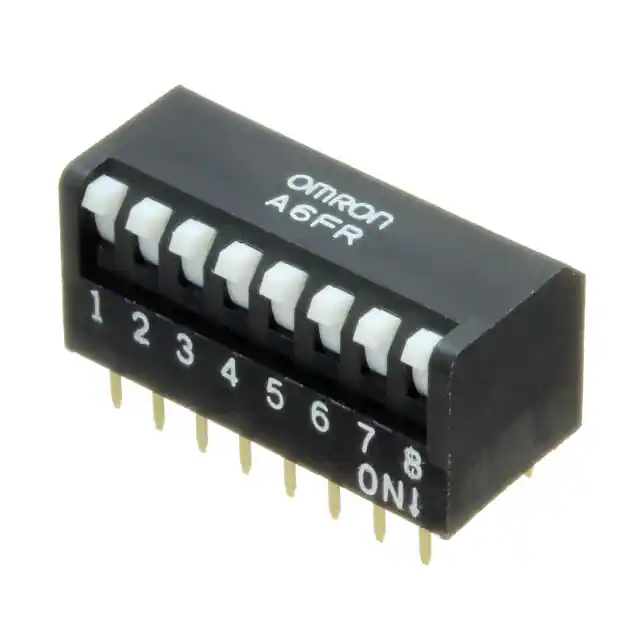

A6FR-8101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
21 |
|
Таблицы данных |
A6FR | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

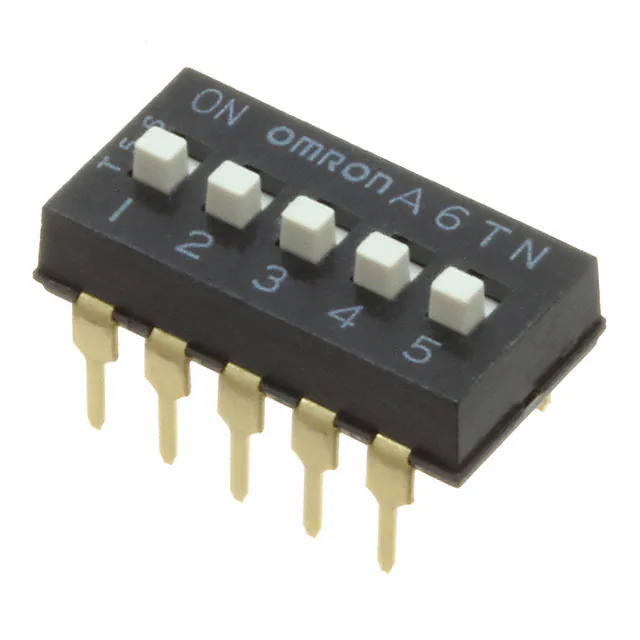

A6TN-5104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6TN | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

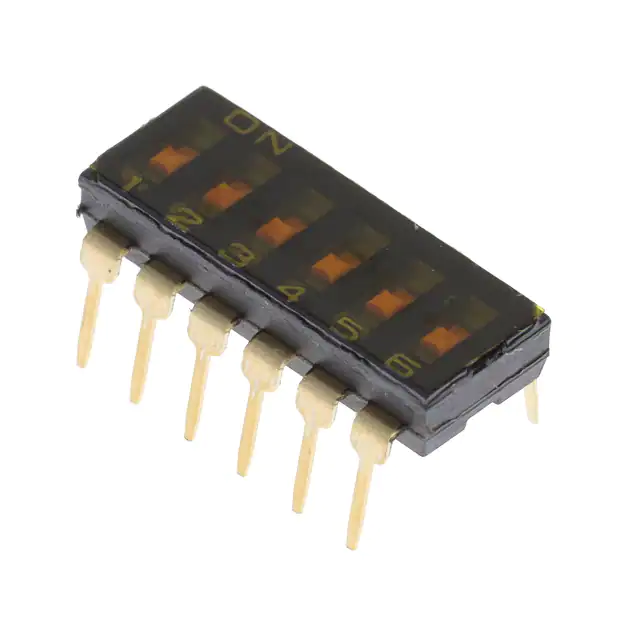

A6T-6102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6T | Tray | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6T-3102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
18 |
|
Таблицы данных |
A6T | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
