DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6A-10CSSW ROTARY DIP BCD COMP 0.1A 28V Omron Electronics Inc-EMC Div |
48 |
|
Таблицы данных |
A6A | Tray | Active | BCD Complement | 10 | 100mA | 28VDC | Rotary with Shaft | Raised | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|

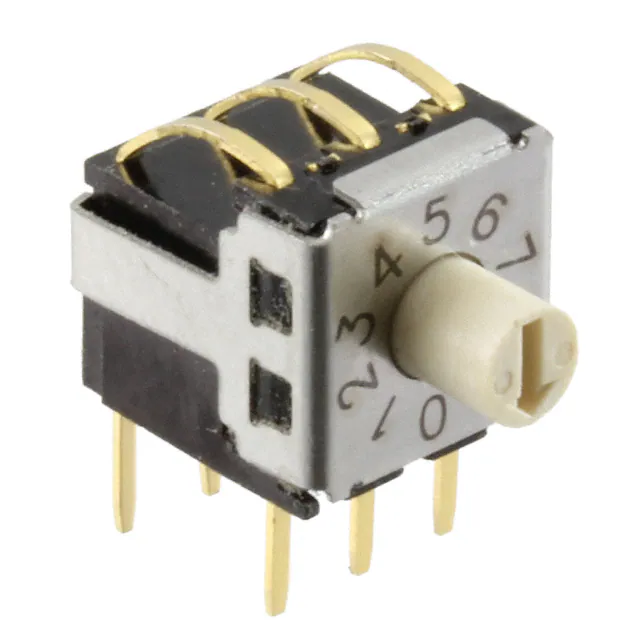

A6KV-102RSSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
30 |
|
Таблицы данных |
A6K | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|

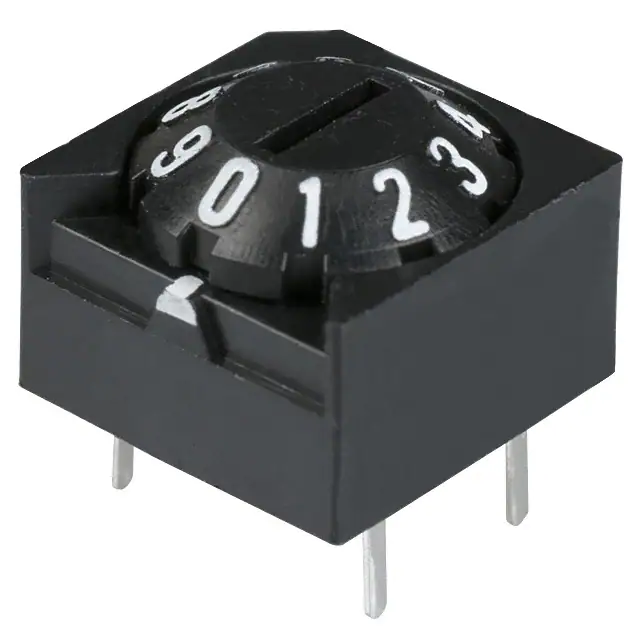

A6A-10CSW ROTARY DIP BCD COMP 0.1A 28V Omron Electronics Inc-EMC Div |
88 |
|
Таблицы данных |
A6A | Bulk | Active | BCD Complement | 10 | 100mA | 28VDC | Rotary for Tool | Raised | - | - | 0.295" (7.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|

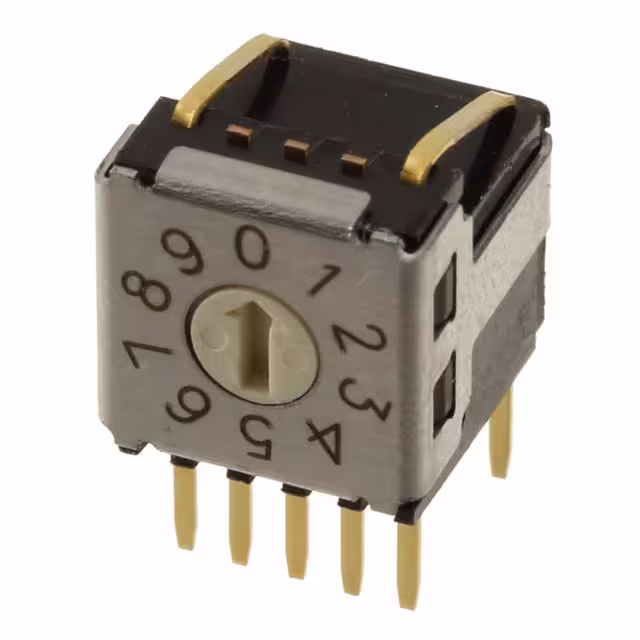

A6KV-104RFSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
41 |
|
Таблицы данных |
A6K | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
|
A6A-16CSSW ROTARY DIP HEX COMP 0.1A 28V Omron Electronics Inc-EMC Div |
98 |
|
Таблицы данных |
A6A | Tray | Active | Hexadecimal Complement | 16 | 100mA | 28VDC | Rotary with Shaft | Raised | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
|
A6TR-6101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6TR | Bulk | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6ER-3101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
A6ER | Bulk | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6SR-0101-R100SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
100 |
|
Таблицы данных |
A6SR | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

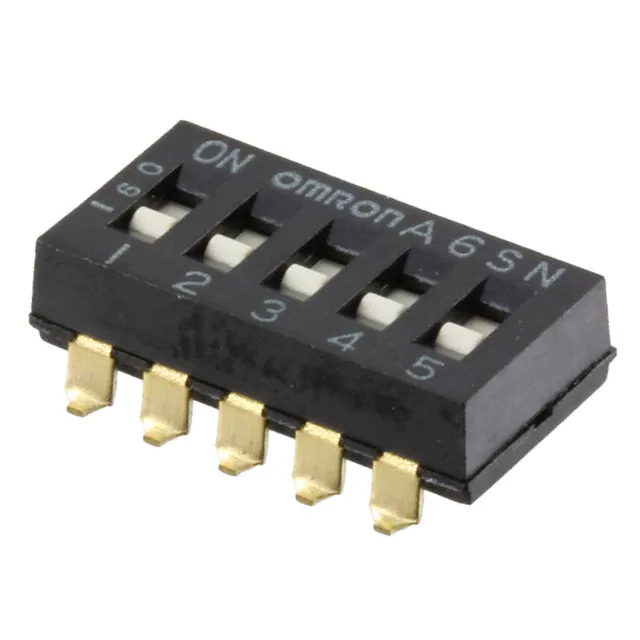

A6SN-5102-R100SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
100 |
|
Таблицы данных |
A6SN | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
A6S-7102-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
40 |
|
Таблицы данных |
A6S-H | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
