Цифровые изоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Тип | Изолированное питание | Количество каналов | Входы - Сторона 1/Сторона 2 | Тип канала | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

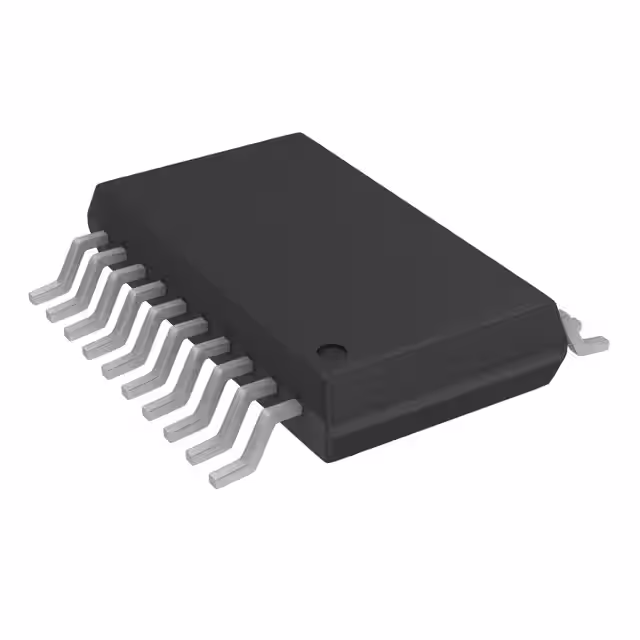

ADUM7643ARQZ-RL7DGTL ISO 1000VRMS 6CH GP 20QSOP Analog Devices Inc. |
254 |
|
Таблицы данных |
iCoupler® | 20-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 6 | 3/3 | Unidirectional | 1000Vrms | 15kV/µs | 1Mbps | 75ns, 75ns | 25ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-QSOP |
|
ADUM3152ARSZ-RL7DGT ISOL 3750VRMS 7CH SPI 20SSOP Analog Devices Inc. |
1,181 |
|
Таблицы данных |
iCoupler®, SPIsolator™ | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | SPI | No | 7 | 4/3 | Unidirectional | 3750Vrms | 25kV/µs | 2Mbps | 25ns, 25ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SSOP |
|
ADUM3401BRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC Analog Devices Inc. |
2,657 |
|
Таблицы данных |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM1250ARZDGTL ISOL 2500VRMS 2CH I2C 8SOIC Analog Devices Inc. |
3,519 |
|
Таблицы данных |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | I2C | No | 2 | 2/2 | Bidirectional | 2500Vrms | 25kV/µs | 1Mbps | - | 145ns, 85ns | - | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM1250ARZ-RL7DGTL ISOL 2500VRMS 2CH I2C 8SOIC Analog Devices Inc. |
2,552 |
|
Таблицы данных |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | I2C | No | 2 | 2/2 | Bidirectional | 2500Vrms | 25kV/µs | 1Mbps | - | 145ns, 85ns | - | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM5212ARSZ-RL7DGTL ISO 2500VRMS 2CH GP 20SSOP Analog Devices Inc. |
1,107 |
|
Таблицы данных |
IsoPower®, iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 50ns, 50ns | 10ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
ADUM7440CRQZ-RL7DGTL ISO 1000VRMS 4CH GP 16QSOP Analog Devices Inc. |
13,775 |
|
Таблицы данных |
iCoupler® | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 1000Vrms | 15kV/µs | 25Mbps | 50ns, 50ns | 5ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-QSOP |
|
|
ADUM7441CRQZ-RL7DGTL ISO 1000VRMS 4CH GP 16QSOP Analog Devices Inc. |
7,467 |
|
Таблицы данных |
iCoupler® | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 1000Vrms | 15kV/µs | 25Mbps | 50ns, 50ns | 5ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-QSOP |
|
|
ADM2491EBRWZDGTL ISO 5KV RS422/RS485 16SOIC Analog Devices Inc. |
5,377 |
|
Таблицы данных |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 5000Vrms | 25kV/µs | 16Mbps | 60ns, 60ns | - | 20ns, 20ns (Max) | 3.3V, 5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ADUM7441CRQZDGTL ISO 1000VRMS 4CH GP 16QSOP Analog Devices Inc. |
2,995 |
|
Таблицы данных |
iCoupler® | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 1000Vrms | 15kV/µs | 25Mbps | 50ns, 50ns | 5ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-QSOP |
