Цифровые изоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Тип | Изолированное питание | Количество каналов | Входы - Сторона 1/Сторона 2 | Тип канала | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM3210BRZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC Analog Devices Inc. |
845 |
|
Таблицы данных |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
ADUM241E0BRWZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC Analog Devices Inc. |
1,071 |
|
Таблицы данных |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1201BRZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC Analog Devices Inc. |
7,211 |
|
Таблицы данных |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM1201BRZDGTL ISO 2500VRMS 2CH GP 8SOIC Analog Devices Inc. |
1,338 |
|
Таблицы данных |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM1200BRZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC Analog Devices Inc. |
1,455 |
|
Таблицы данных |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM1200BRZDGTL ISO 2500VRMS 2CH GP 8SOIC Analog Devices Inc. |
1,044 |
|
Таблицы данных |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM1201CRZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC Analog Devices Inc. |
2,579 |
|
Таблицы данных |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 45ns, 45ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM1201CRZDGTL ISO 2500VRMS 2CH GP 8SOIC Analog Devices Inc. |
1,378 |
|
Таблицы данных |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 45ns, 45ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
ADUM7441ARQZ-RL7DGTL ISO 1000VRMS 4CH GP 16QSOP Analog Devices Inc. |
7,623 |
|
Таблицы данных |

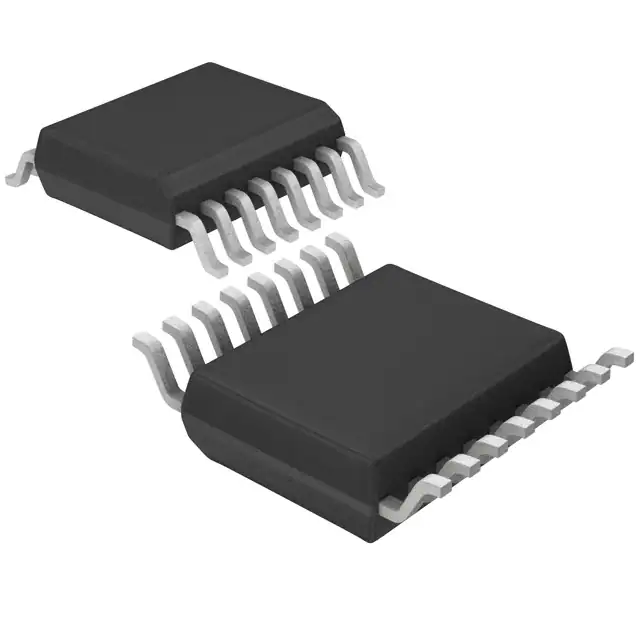

iCoupler® | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 1000Vrms | 15kV/µs | 1Mbps | 75ns, 75ns | 25ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-QSOP |
|
|
ADUM7441ARQZDGTL ISO 1000VRMS 4CH GP 16QSOP Analog Devices Inc. |
2,039 |
|
Таблицы данных |
iCoupler® | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 1000Vrms | 15kV/µs | 1Mbps | 75ns, 75ns | 25ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-QSOP |
