Сбор данных (DAQ)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Функция | Тип | Подключение шины | Переднее подключение | Количество входов и тип | Входной диапазон | Разрешение входа | Количество выходов и тип | Диапазон выхода | Разрешение выхода | Двунаправленные каналы | Счетчик/таймеры | Частота выборки (в секунду) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6069-410-028DAQ DEVICE COUNTER/TIMER USB 2.0 |
5 |
|
- |
USB-CTR | Box | Active | Counter/Timer | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog, 8 - Digital | - | 16 Bits | 8 - Analog, 8 - Digital | - | 16 Bits | 8 | 8 | 4M - Simultaneous |
|
|
6069-410-054DAQ DEVICE ANALOG OUTPUT USB 2.0 |
12 |
|
- |
USB-3100 | Box | Active | Analog Output | DAQ Device | USB 2.0 | Screw Terminal | 8 - Digital | 0 ~ 5V | - | 8 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 1 | 100 - Simultaneous |
|
779051-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
19 |
|
Таблицы данных |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 4 - Differential), 12 - Digital | ±20V | 12 Bits | 2 - Analog, 12 - Digital | 0 ~ 5V | 12 Bits | 12 | 1 | 10k - Multiplexed |
|
|
6069-410-025DAQ DEVICE MULTIFUNCTION I/O |
14 |
|
- |
E-TC | Box | Active | Multifunction I/O | DAQ Device | - | Screw Terminal | 8 - Analog, 8 - Digital | - | 24 Bits | 8 - Digital | - | - | 8 | 1 | 4 - Simultaneous |
|
6069-410-016DAQ DEVICE MULTIFUNCTION I/O |
24 |
|
- |
MCC E-1608 | Box | Active | Multifunction I/O | DAQ Device | - | RJ45 | 8 - Analog (Single-Ended, 4 - Differential), 8 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 1 | 250k - Multiplexed |
|
|
6069-410-033DAQ DEVICE DIGITAL I/O USB 2.0 |
7 |
|
- |
USB-DIO32HS | Box | Active | Digital I/O | DAQ Device | USB 2.0 | Screw Terminal | 32 - Digital | - | - | 32 - Digital | - | - | 32 | - | 8M - Multiplexed |
|
|
6069-410-200DAQ DEVICE DIGITAL I/O USB 2.0 |
4 |
|
- |
USB-SSR | Box | Active | Digital I/O | DAQ Device | USB 2.0 | Screw Terminal | 24 - Digital | - | - | 24 - Digital | - | - | 24 | - | - |
|
|
779351-01MODULE MULTIFUNCTION I/O |
11 |
|
Таблицы данных |
C | Box | Active | Multifunction I/O | Module | - | - | 8 - Digital | - | - | 8 - Digital | - | - | 8 | - | - |
|
779976-01DAQ DEVICE DIGITAL I/O PCIE |
9 |
|
- |
- | Box | Active | Digital I/O | DAQ Device | PCIe | SCSI | 96 - Digital | -0.5 ~ 5.5V | - | 96 - Digital | -0.5 ~ 5.5V | - | 96 | - | - |
|
779084-01DAQ DEVICE DIGITAL I/O PCI |
4 |
|
Таблицы данных |
- | Box | Active | Digital I/O | DAQ Device | PCI | D-Sub | 16 - Digital | ±30V | - | 16 - Digital | 0 ~ 30V | - | 16 | - | - |
|
779003-01DAQ DEVICE DIGITAL OUTPUT |
5 |
|
Таблицы данных |
C | Box | Active | Digital Output | DAQ Device | - | - | - | - | - | 8 - Digital | 5 ~ 30V | - | - | - | - |
|
6069-410-010DAQ DEVICE MULTIFUNC I/O USB 2.0 |
16 |
|
Таблицы данных |
MCC USB-1608G | Box | Not For New Designs | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Differential), 8 - Digital | ±10V | 16 Bits | 8 - Digital | ±10V | 16 Bits | 8 | 2 | 500k - Multiplexed |
|
|
6069-410-029DAQ DEVICE DIGITAL INPUT USB 2.0 |
10 |
|
- |
USB-3100 | Box | Active | Digital Input | DAQ Device | USB 2.0 | Screw Terminal | 8 - Digital | 0 ~ 5V | - | 16 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 1 | 100 - Simultaneous |
|
784788-01DAQ DEVICE TEMPERATURE DGTL INP |
14 |
|
Таблицы данных |
C | Box | Active | Temperature | DAQ Device | - | - | 4 - Digital | - | - | - | - | - | - | - | - |
|
782607-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
19 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | - | 8 - Analog (Single-Ended, 4 - Differential), 13 - Digital | ±10V | 16 Bits | 2 - Analog, 13 - Digital | ±10V | 16 Bits | 13 | 1 | 50k - Multiplexed |
|
782606-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
18 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 4 - Differential), 13 - Digital | ±10V | 16 Bits | 2 - Analog, 13 - Digital | ±10V | 16 Bits | 13 | 1 | 50k - Multiplexed |
|
785043-01DAQ DEVICE DIGITAL INPUT |
14 |
|
Таблицы данных |
C | Box | Active | Digital Input | DAQ Device | - | - | 4 - Digital | - | - | - | - | - | - | - | - |
|

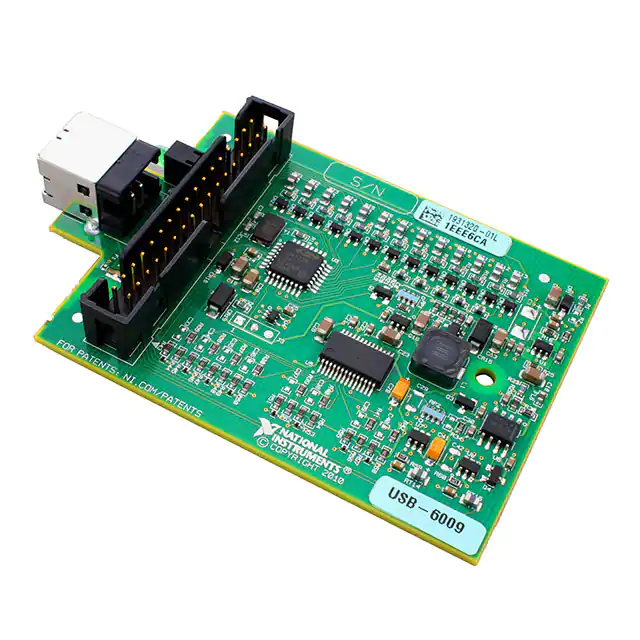

193132-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
8 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 4 Differential), 8 - Digital | ±10V | 14 Bits | 2 - Analog, 8 - Digital | 0 ~ 5V | 12 Bits | 8 | 1 | 48k - Multiplexed |
|
779006-01DAQ DEVICE DIGITAL OUTPUT |
7 |
|
Таблицы данных |
C | Box | Active | Digital Output | DAQ Device | - | - | 4 - Digital | - | - | - | - | - | - | - | - |
|
779600-01MODULE DIGITAL OUTPUT |
20 |
|
Таблицы данных |
C | Box | Active | Digital Output | Module | - | Screw Terminal | - | - | - | 8 - Digital | - | - | - | - | - |
