БОМ
Сбор данных (DAQ)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Функция | Тип | Подключение шины | Переднее подключение | Количество входов и тип | Входной диапазон | Разрешение входа | Количество выходов и тип | Диапазон выхода | Разрешение выхода | Двунаправленные каналы | Счетчик/таймеры | Частота выборки (в секунду) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
785045-01DAQ DEVICE DIGITAL OUTPUT |
45 |
|
- |
C | Box | Active | Digital Output | DAQ Device | - | - | - | - | - | 32 - Digital | 6 ~ 36V | - | - | - | - |
|
779787-01MODULE DIGITAL I/O |
48 |
|
Таблицы данных |
C | Box | Active | Digital I/O | Module | - | D-Sub | 32 - Digital | - | - | 32 - Digital | - | - | 32 | - | - |
|

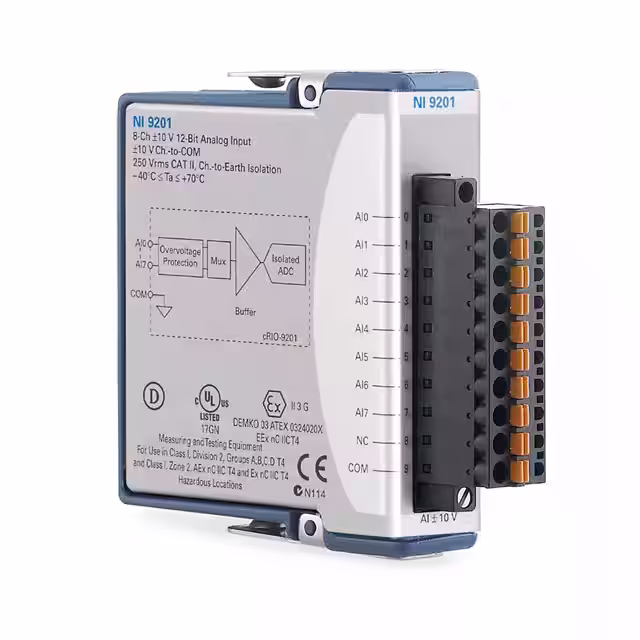

783730-01DAQ DEVICE ANALOG INPUT |
139 |
|
Таблицы данных |
C | Box | Active | Voltage | Module | - | - | 8 - Analog | ±10V | 12 Bits | - | - | - | - | - | 500k - Multiplexed |
|
782608-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
33 |
|
Таблицы данных |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 4 - Differential), 13 - Digital | ±10V | 16 Bits | 2 - Analog, 13 - Digital | ±10V | 16 Bits | 13 | 1 | 100k - Multiplexed |
|
785192-01DAQ DEVICE DIGITAL I/O |
119 |
|
Таблицы данных |
C | Box | Active | Digital I/O | DAQ Device | - | - | 32 - Digital | 30V | - | - | - | - | - | - | - |
|
779517-01MODULE DIGITAL OUTPUT |
30 |
|
- |
C | Box | Active | Digital Output | Module | - | - | - | - | - | 32 - Digital | 0 ~ 60V | - | - | - | - |
|
779516-01DAQ DEVICE ANALOG INPUT |
54 |
|
- |
C | Box | Active | Analog Input | DAQ Device | - | - | 8 - Analog | - | 16 Bits | - | - | - | - | - | 200k - Simultaneous |
|
783731-01DAQ DEVICE ANALOG INPUT |
43 |
|
- |
C | Box | Active | Current | Module | - | - | 8 - Analog | 0 ~ 20mA | 16 Bits | - | - | - | - | - | 200k - Multiplexed |
|

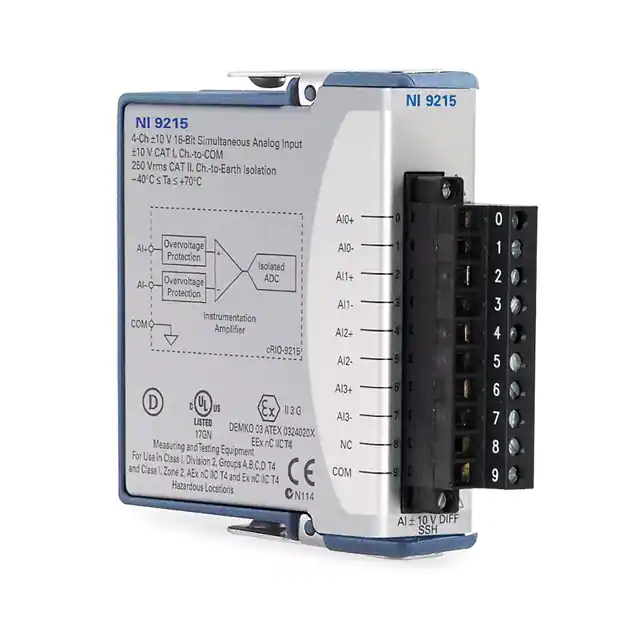

779011-01DAQ DEVICE ANALOG INPUT |
93 |
|
Таблицы данных |
C | Box | Active | Analog Input | DAQ Device | - | - | 4 - Analog | ±10V | 16 Bits | - | - | - | - | - | 100k - Simultaneous |
|
789887-01USB-6421, 16-BIT, 250KS/S (16AI, |
34 |
|
- |
mioDAQ | Box | Active | Multifunction I/O | DAQ Device | USB C | Spring Terminal | 16 - Analog (Single-Ended, 8 - Differential) | ±200mV, ±1V, ±5V, ±10V | 16 Bits | 2 - Analog | ±10V | 16 Bits | 16 | 4 | 250k - Multiplexed |
|

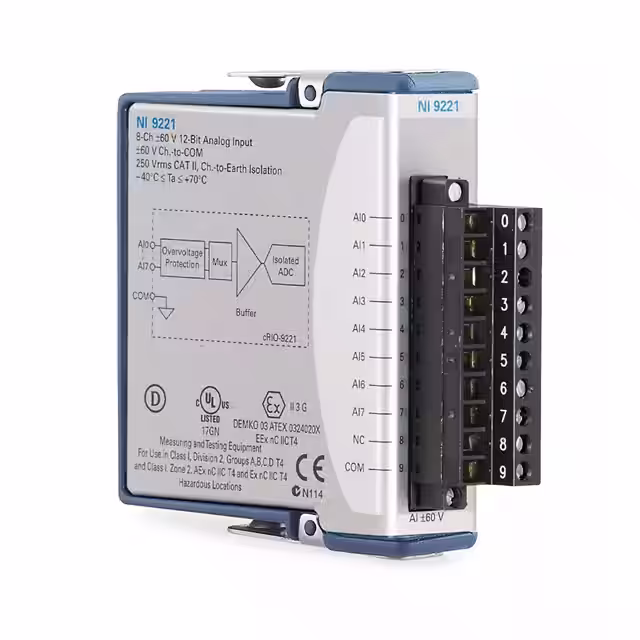

779014-01DAQ DEVICE ANALOG INPUT |
34 |
|
- |
C | Box | Active | Analog Input | DAQ Device | - | - | 8 - Analog | ±60V | 12 Bits | - | - | - | - | - | 800k - Multiplexed |
|
|
6069-410-023DAQ DEVICE MULTIFUNC I/O USB 2.0 |
37 |
|
- |
USB-2416-4AO | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 32 - Analog (Single-Ended, 16 - Differential), 8 - Digital | ±20V | 24 Bits | 4 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 2 | 1k - Multiplexed |
|
|
779357-01MODULE VOLTAGE DGTL I/O |
29 |
|
Таблицы данных |
C | Box | Active | Voltage | Module | - | D-Sub | 32 - Analog (Single-Ended, 16 - Differential), 1 - Digital | ±10V | 16 Bits | 1 - Digital | - | - | - | - | - |
|
782250-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
28 |
|
Таблицы данных |
X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Generic (OEM) | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±0.2V, ±1V, ±5V, ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 500k - Multiplexed |
|
781048-01DAQ DEVICE MULTIFUNCT I/O PCIE |
67 |
|
Таблицы данных |
X | Box | Active | Multifunction I/O | DAQ Device | PCIe | VHDCI | 16 - Analog (Single-Ended, 8 - Differential), 8 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1M - Multiplexed |
|
785186-01DAQ DEVICE DIGITAL INPUT |
137 |
|
Таблицы данных |
C | Box | Active | Temperature | DAQ Device | - | - | 8 - Digital | - | - | - | - | - | - | - | - |
|
781438-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
26 |
|
Таблицы данных |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 500k - Multiplexed |
|
|
6069-410-048DAQ DEVICE MULTIFUNC I/O USB 2.0 |
27 |
|
Таблицы данных |
MCC DT9837 | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 5 - Analog | ±10V | 24 Bits | 1 - Analog | ±10V | 24 Bits | - | - | 105.4k - Multiplexed |
|
|
6069-410-024DAQ DEVICE MULTIFUNC I/O USB 2.0 |
31 |
|
- |
TC-32 | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | - | 32 - Analog (Differential), 8 - Digital | 0 ~ 15V | 24 Bits | 32 - Digital | 0 ~ 5V | 24 Bits | - | - | 3 - Simultaneous |
|
785185-01DAQ DEVICE TEMPERATURE |
30 |
|
Таблицы данных |
C | Box | Active | Temperature | DAQ Device | - | Spring Terminal | 16 - Analog (Differential) | - | 24 Bits | - | - | - | - | - | 75 |
