Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1432872-1RELAY AUTOMOTIVE SPDT 40A 6V TE Connectivity Potter & Brumfield Relays |
153 |
|
Таблицы данных |
- | Bulk | Obsolete | Non Latching | - | 6VDC | SPDT (1 Form C) | 40 A | 12VDC | - | - | - | - | - | Through Hole | PC Pin | - |
|

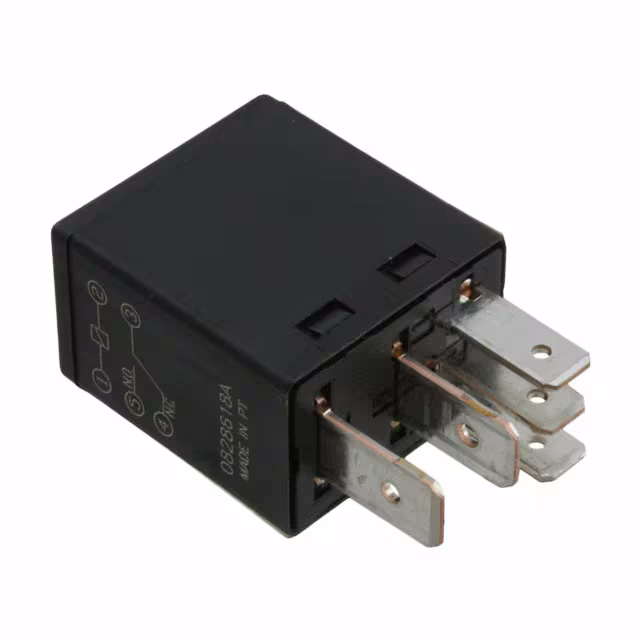

VFMA-15F41RELAY AUTOMOTIVE SPDT 12V TE Connectivity Potter & Brumfield Relays |
0 |
|
Таблицы данных |
VFM | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | - | - | 7.2 VDC | 1.2 VDC | - | - | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
VFMA-11F41VFMA-11F41=VFMA TE Connectivity Potter & Brumfield Relays |
0 |
|
Таблицы данных |
VFMA | Bulk | Obsolete | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | - | 7.2 VDC | 1.2 VDC | - | - | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
5-1904006-1V23234B0001X001-EV-144 TE Connectivity Potter & Brumfield Relays |
0 |
|
Таблицы данных |
- | Box | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
2-1904025-3V23234A0004X051-EV-100 TE Connectivity Potter & Brumfield Relays |
438 |
|
Таблицы данных |
Power Relay B | Bulk | Obsolete | Non Latching | 94 mA | 24VDC | SPDT (1 Form C) | 50 A | 24VDC - Nom | 16 VDC | 3 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

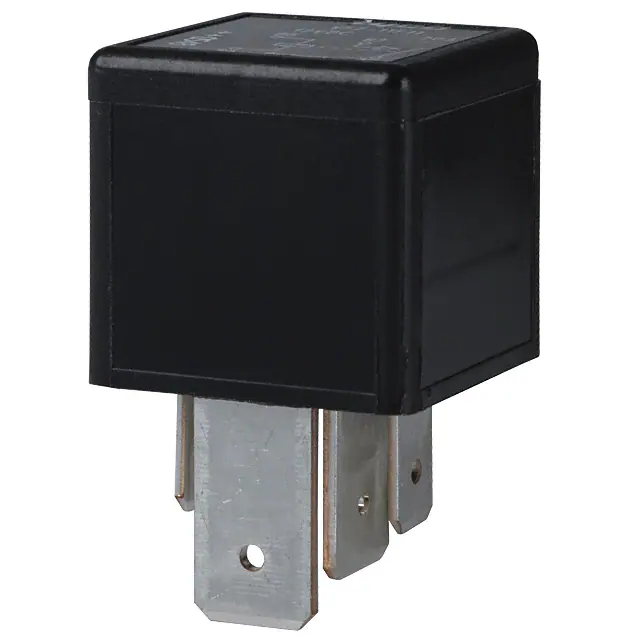

VF7-11F11RELAY AUTOMOTIVE SPST 70A 12V TE Connectivity Potter & Brumfield Relays |
0 |
|
Таблицы данных |
VF7 | Bulk | Obsolete | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

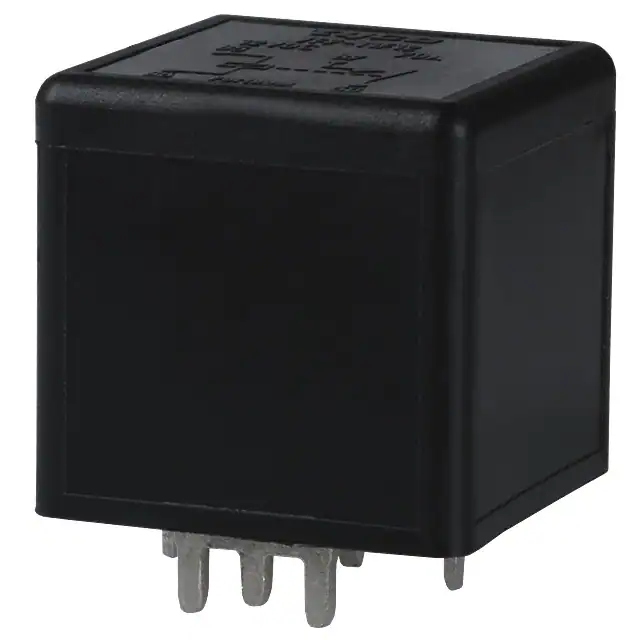

VF7-11F12RELAY AUTOMOTIVE SPST 70A 12V TE Connectivity Potter & Brumfield Relays |
483 |
|
Таблицы данных |
VF7 | Bulk | Active | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
1-1414687-0RELAY AUTOMOTIVE SPDT 40A 12V TE Connectivity Potter & Brumfield Relays |
40 |
|
Таблицы данных |
SRF-A | Bulk | Active | Non Latching | 151 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
1-1393304-1RELAY AUTOMOTIVE SPST-NO 70A 24V TE Connectivity Potter & Brumfield Relays |
86 |
|
Таблицы данных |
F7 | Bulk | Active | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
V23134A4064X551-EV-CBOXRELAY GEN PURPOSE SPDT 60A 24V TE Connectivity Potter & Brumfield Relays |
53 |
|
Таблицы данных |
F4 | Bulk | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 28VDC - Nom | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
