Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1414992-7RELAY AUTOMOTIVE SPDT 40A 12V TE Connectivity Potter & Brumfield Relays |
172 |
|
Таблицы данных |
SRF-A | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

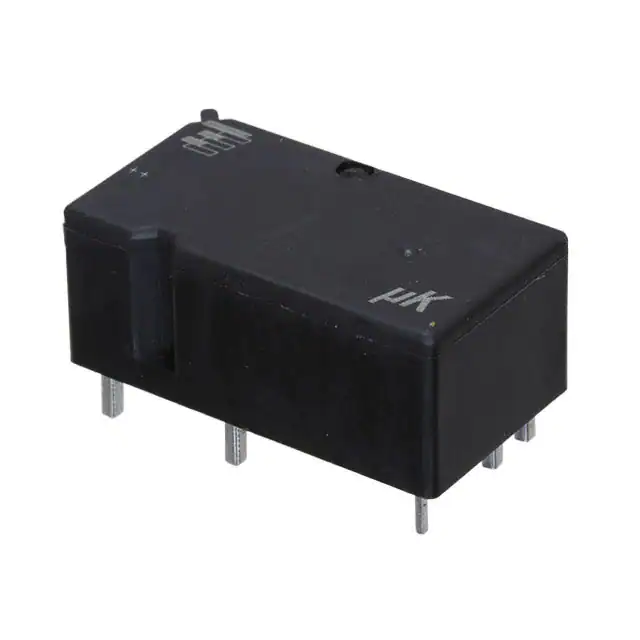

V23086C2001A403PCB 25A RELAYS TE Connectivity Potter & Brumfield Relays |
792 |
|
Таблицы данных |
Micro Relay K | Bulk | Active | Non Latching | 47.2 mA | 12VDC | DPDT (2 Form C) | 25 A | - | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
1-1414122-0V23136J1004X050 TE Connectivity Potter & Brumfield Relays |
107 |
|
Таблицы данных |
F7 A | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Max | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

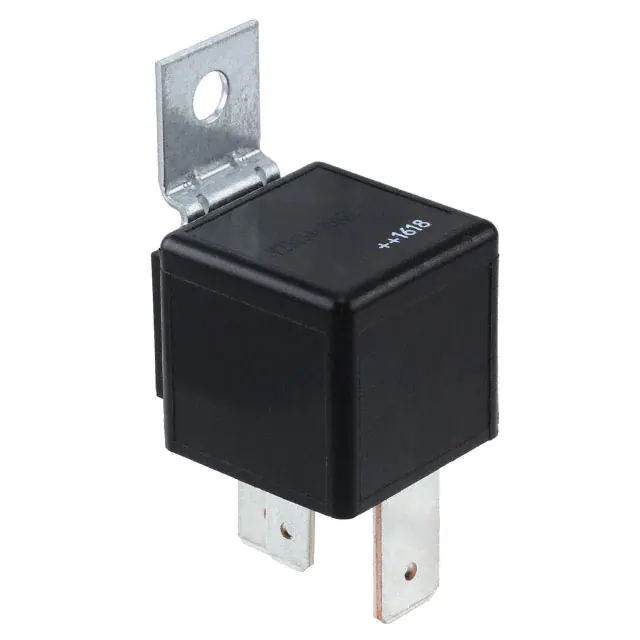

V23134J1052D642RELAY AUTOMOTIVE SPST-NO 70A 12V TE Connectivity Potter & Brumfield Relays |
447 |
|
Таблицы данных |
F7 | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
1-1414168-0RELAY AUTOMOTIVE SPDT 24V TE Connectivity Potter & Brumfield Relays |
209 |
|
Таблицы данных |
- | Bulk | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | - | - | 16 VDC | 4 VDC | 7 ms | 2 ms | - | - | - | -40°C ~ 105°C |
|
2-1904058-5RELAY AUTO SPST-NO 20A 12V TE Connectivity Potter & Brumfield Relays |
398 |
|
Таблицы данных |
Mini K HV | Bulk | Active | Non Latching | 240 mA | 12VDC | SPST-NO (DM) (1 Form X) | 20 A | 400VDC - Nom | 6.9 VDC | 1.2 VDC | 2.5 ms | 1 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
V23132B2002X025HIGH CURRENT RELAYS & MODULES TE Connectivity Potter & Brumfield Relays |
43 |
|
Таблицы данных |
High Current Relay 150 | Bulk | Active | Non Latching | 170 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 24VDC - Nom | 14.4 VDC | 2.4 VDC | 25 ms | 8 ms | IP67 - Dust Tight, Waterproof | Chassis Mount | Stud | -40°C ~ 125°C |
|

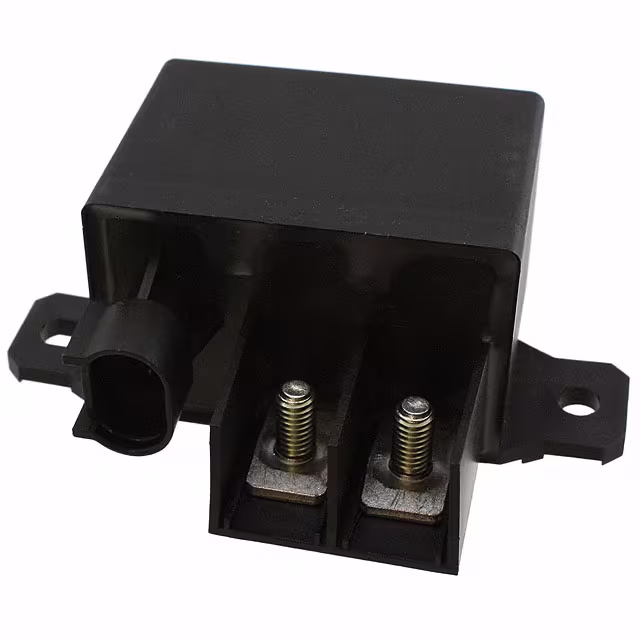

2-1414939-2RELAY AUTO SPST-NO 130A 12V TE Connectivity Potter & Brumfield Relays |
470 |
|
Таблицы данных |
High Current Relay 150 | Bulk | Active | Non Latching | 324 mA | 12VDC | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | IP67 - Dust Tight, Waterproof | Chassis Mount | Stud | -40°C ~ 125°C |
|

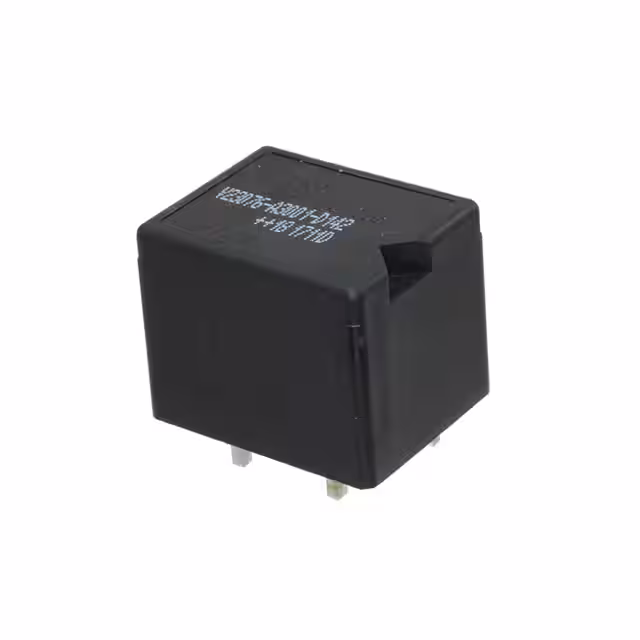

1393278-2V23076A3001D142T TE Connectivity Potter & Brumfield Relays |
258 |
|
Таблицы данных |
- | Bag | Active | Non Latching | - | 12VDC | - | - | - | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
3-1415001-2RELAY GEN PURPOSE SPST 70A 12V TE Connectivity Potter & Brumfield Relays |
453 |
|
Таблицы данных |
- | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
